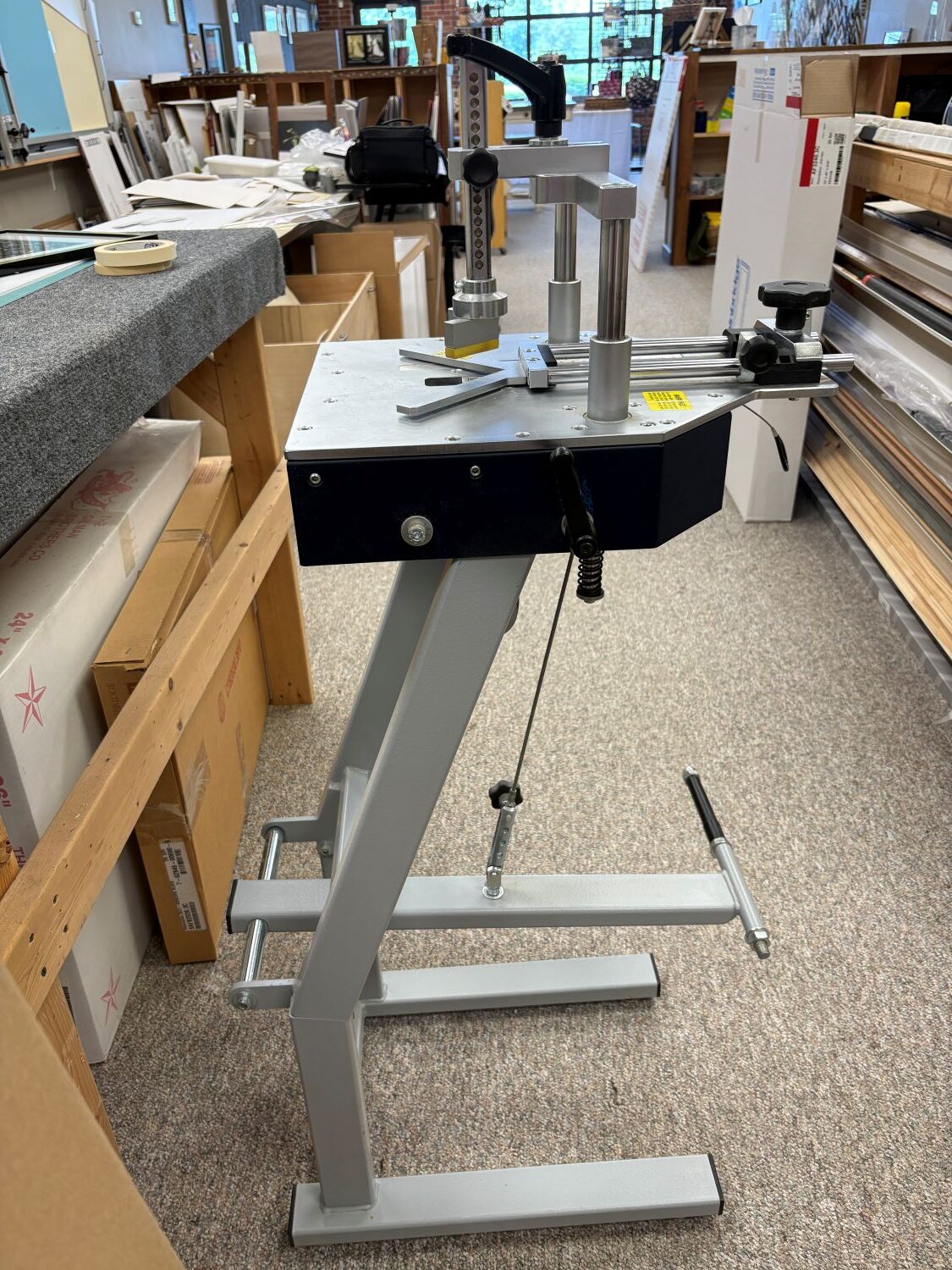

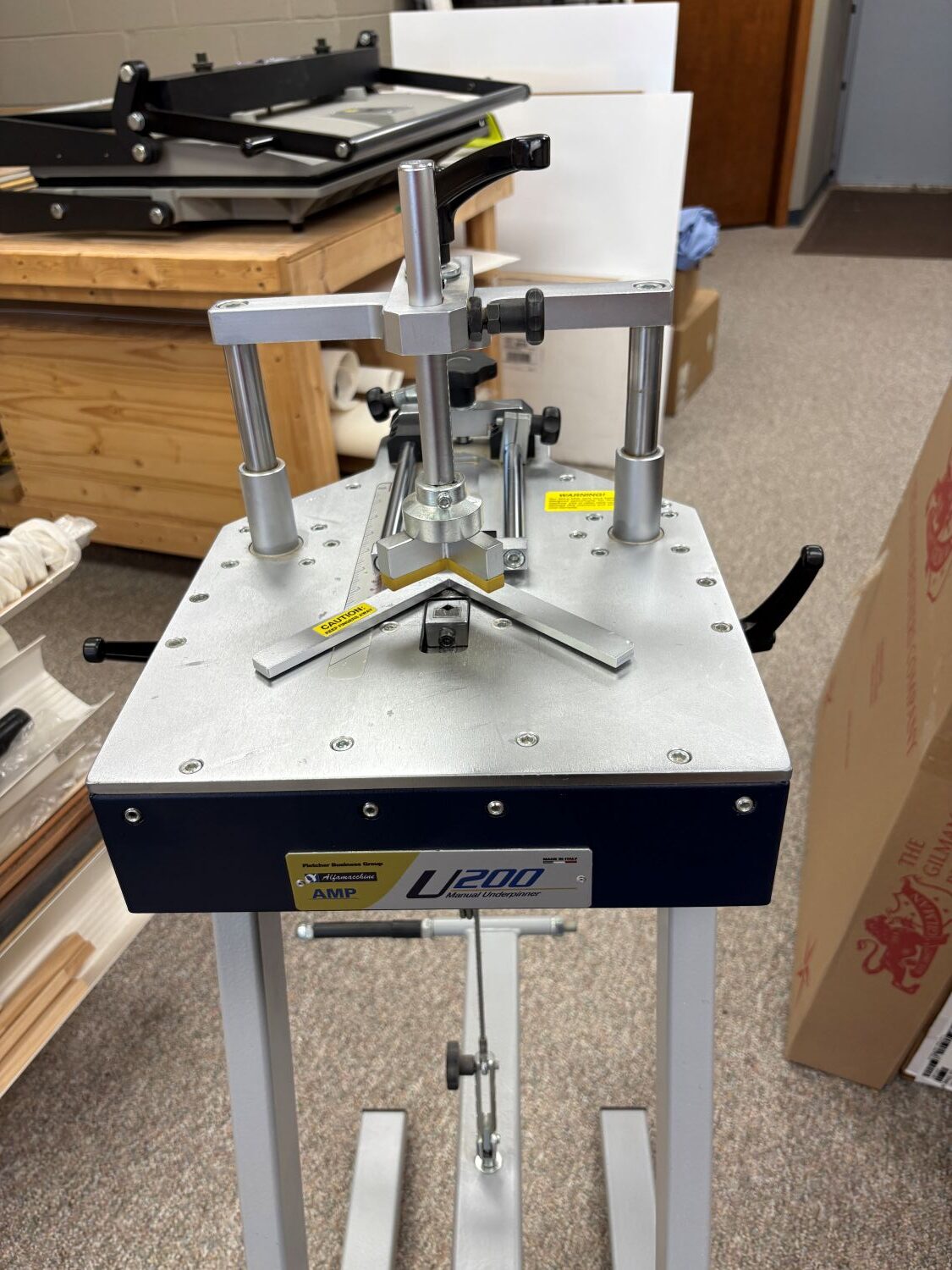

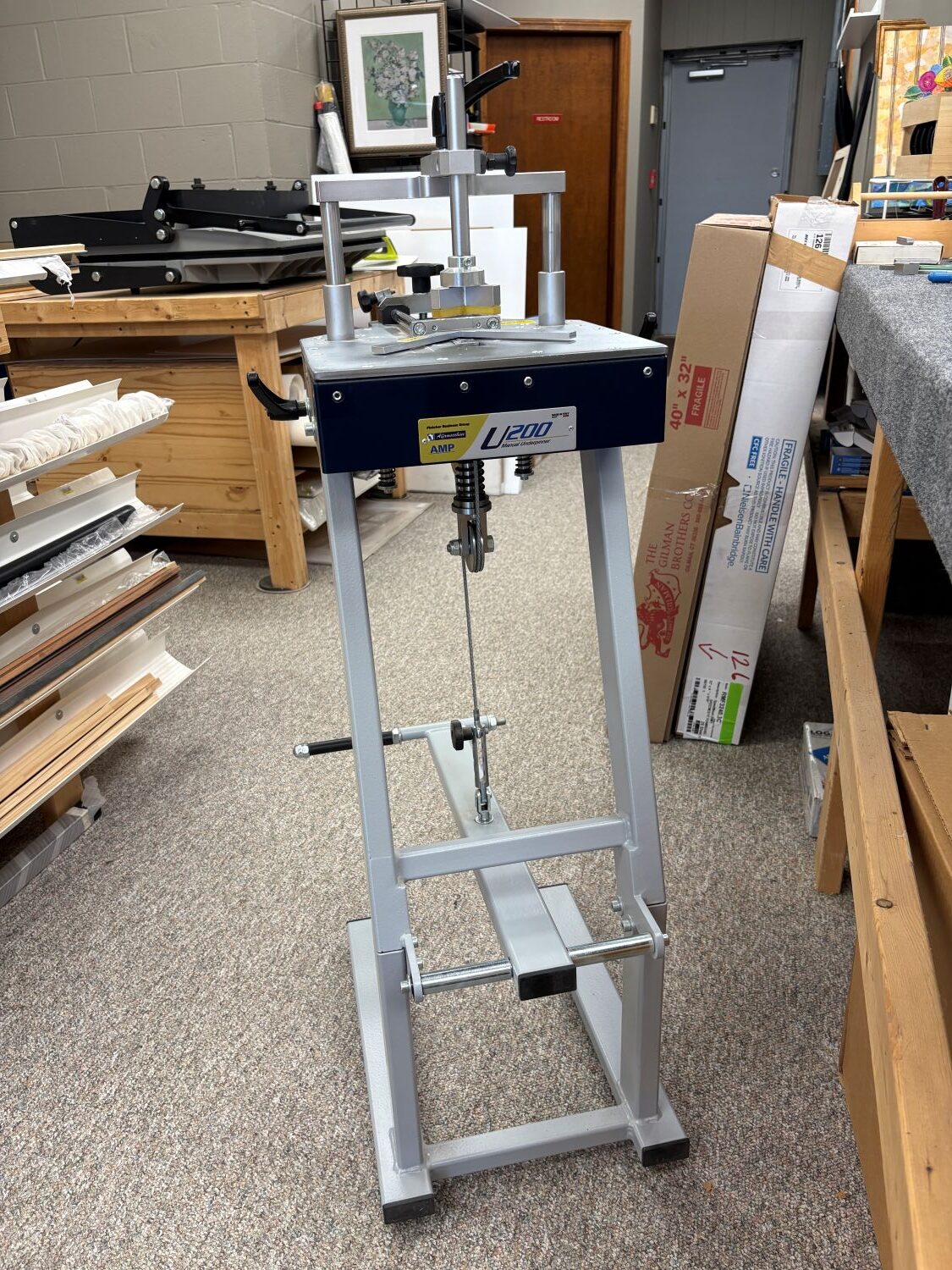

Alfamacchine AMP U200 Manual Underpinner

***Manufacturer's Information:

The U-200 is an entry-level frame assembly machine for any small retail operation. As a fully manual machine, it requires no compressed air or electrical power to operate. This unit allows the framer or graphic shop owner to bring the joining operation in-house for cost control and quick customer turn-around. The U-200 is compact, quiet operation and has a small footprint. Our lightest and most portable joiner, it can be easily moved from place to place in your business environment. It can handle moulding sizes up to 5 1/8" (130mm) wide and 3 1/4" (80mm) high, offers a tilting base with front or rear set-up and a "positive placement" clamping feature. Enjoy years of trouble-free operation with Alfamacchine's unique V-Nail driver assembly designed to eliminate frequent blade changing.

Features:

Unique Performance Features:
- U-200 unique V-Nail Driver Assembly provides trouble- free operation – Up to 1 Million Cycles
- Pedal Actuator – Requires limited force for nail insertion

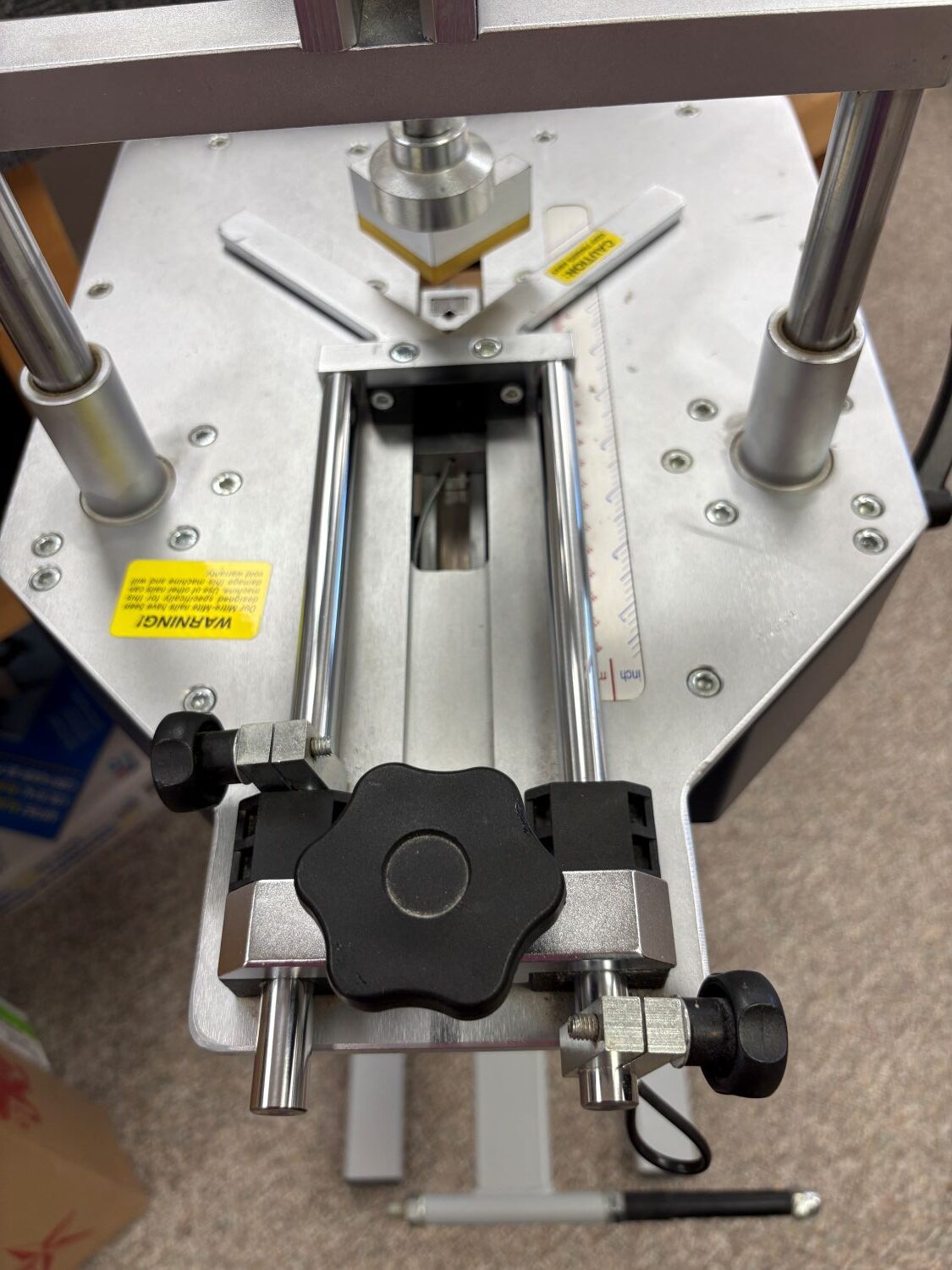

- Spring-loaded pull pin locking clamp mechanism allows quick adjustment for different size mouldings
- Light weight – Easy shop mobility
- Quite operation – Ideal for retail type shop operations
- Easy table tilt adjustment
- Join either from front or back of machine

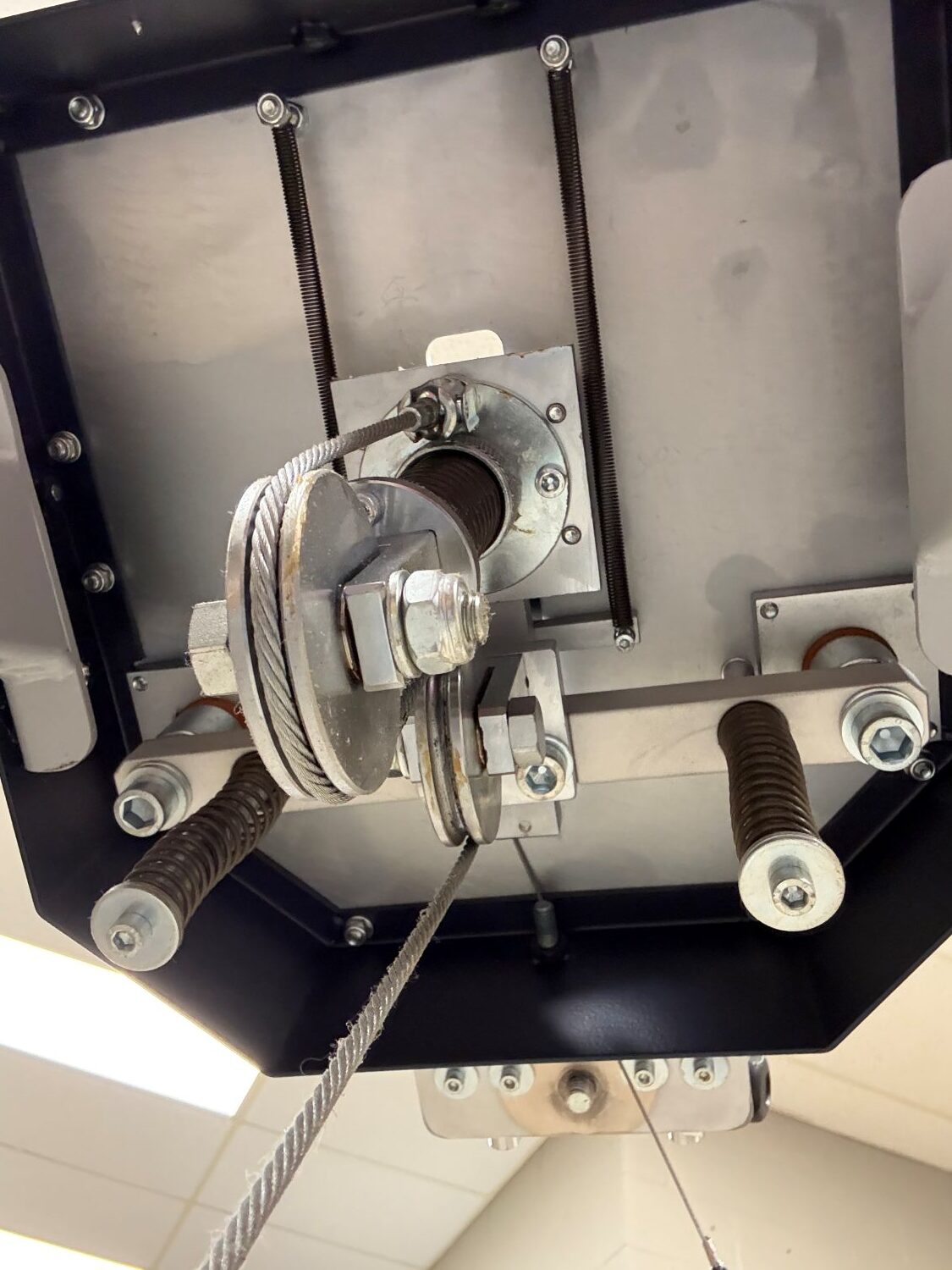

- Cable adjustment for actuator pedal height
- Requires small foot print: 18" (450mm) wide x 30" (750mm) deep

Specifications:

Frame Joining Capabilities:
- Moulding Width (min to max): 1/4" up to 4 1/2" (6-105 mm)
- Moulding Height (min to max): 1/4" up to 3 1/4" (6-80 mm)
- Max Distance Between V-Nails (stroke): 5 3/4" (145mm)
- Pre-set V-Nail Position Stops: Multiple
- V-Nail Sizes: 5mm, 7mm, 10mm, 12mm, 15mm (SW-HW-MDF)
- V-Nail Channel Capacity: 220 V-Nails/channel

Machine Dimensions & Weight:
- Length: 30" (750mm)
- Width: 18" (450mm)
- Height: 50" (1280mm)
- Weight: 83 lbs (38kg)
