Equipment Lot: Valiani Nexus 150 CMC Computerized Mat Cutter, CTD D45AX Double Miter Saw w/ Phase Converter, Fletcher 3000 60" Multi Material Cutter, AMP VN4MP ( U500 ) Programmable Frame Joiner, Bienfang 4468H Vacuum Heat Press, Morso Chopper w/ Measuring Table w/ Extra Set of Blades, Panther P150/50AL 13 Gallon Tank Silent Air Compressor, CTD Dust Collection System, & Display Fixture Lot: Including Retail Counter, Work Table, Etc.

UE-112823A-1 Valiani Nexus 150 CMC Computerized Mat Cutter

(SOLD)

Year Manufactured: 2022

***Manufacturer's Information:

The Nexus generation of mat cutting machines represents the latest evolution of years of experience in developing and building equipment for the framing industry. Thanks to the robust frame structure and the possibility of customization through a wide range of tools, Nexus is a machine that can be used to meet different production standards and applications. Nexus reduces your work time by more than 50% compared to manual work, improving precision and consistency, but above all unleashing your creativity.

100% YIELD = 0 WASTE

The Button Clamp system allows you to trim your mat-board right to the edges, optimizing the material yield and leave no marks on your mat-board!

CUT ALL YOU NEED

Virtually endless cutting possibilities! From thin to very thick mat-board, simple to intricate objects, face up or face down, beveled or straight.

ADJUSTABLE STAND

Space is no longer a problem with the Multi-position Stand**. Adjust it as you wish! (**Optional)

Main Applications

- Multiple layers mat-boards
- From Thin to Thick mat-board
- Letters & Text
- French Line
- Memorabilia

Materials

- From 4 to 12 ply mat-boards
- Foam Board (up to 3/16”)
- Gator board
- Corrugated cardboards
- Grey Chip board

UE-112823A-2 CTD D45AX Double Miter Saw w/ Phase Converter

(SOLD)

***Manufacturer's Information:

The D45 is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

Standard Features and Specifications:

• Blade Capacity: 10'' OD, 12'' OD, 14'' OD Saw blades not included.
• Arbor: 5/8'' with 2-1/4'' saw collars.
• Spindle and Pivot: Both mounted on pre-loaded and sealed ball bearings.
• Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.
• Motors and Voltages: 1-1/2 HP single phase 115/230V and 3 phase 230/460V, totally enclosed fan cooled motors, 60 Hz, 3450 RPM with dual magnetic starter. Also includes rotary disconnect switch and blade guard interlock switch. Consult factory for amperage load of motors.
• Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6'' dust outlet. 1200 CFM required.
• Table Height: 34-1/2'' from floor.
• Blade Wear and Angular adjustments: Each saw head has adjustments for blade variation. Allows for precision alignment of blades to minimize scrap. Saw heads are adjustable up to 3 degrees, always assuring perfect mitres.
• Length of stroke adjustment: The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, on release of the foot valve, thereby saving wasted time and motion.
• Production Rate: The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.
• Size: Standard machine, without tables or gages; weight 550 lbs. 46'' wide x 22'' front to back x 51-1/2'' high.
• Actuation: Pneumatic foot valve with cover
• Air Pressure: 75 PSI with Air Filter/Regulator/Lubricator; includes Auto Drain.
• Air Consumption: 1.0 CF per 10 strokes at 75 PSI.

UE-112823A-3 Fletcher 3000 60" Multi Material Cutter

(SOLD)

***Manufacturer's Information:

The Fletcher 3000 features a 3-position cutting turret containing a glass scoring wheel, scoring tip for scoring acrylic materials and a cutting blade for picture frame matboard and foam board materials up to 1/4" (6mm). A ramping feature allows the lifting of scoring wheel on top edge of glass resulting in a cleaner edge break when scoring glass. Handles material sheets up to 60" high (1.52m). Mounts on wall or freestanding installation. Available in 48" (1219mm) or 60" (1524mm) vertical cutting capacity.

Substrate Cutting Capabilities:
- Glass: Up to 1/4" (6 mm)
- Mirror: Up to 1/4" (6 mm)
- Acrylic: Up to 1/4" (6 mm)
- Matboard: 4, 8, 12 ply
- Foamboard: Up to 1/4" (6 mm)

3-Position Turret Cutting Head:

The 3000 Wall Machine features a 3-position cutting turret that contains a glass cutting wheel unit, plastic scoring blade, and mat/form board cutting blade mounted in their respective positions on the turret for quick changeover from one material to another.

UE-112823A-4 AMP VN4MP ( U500 ) Programmable Frame Joiner

(SOLD)

Video of Machine in Operation

***Manufacturer's Information:

For high volume production pre-programmed sequences of operation, Mitre-Mite® Multichannel Underpinner V-Nailer machine provides the highest level of flexibility in the industry incorporating five distinct channels which hold five different V-Nail® sizes (5mm, 7mm, 10mm, 12mm, 15mm). The operator has the capability to insert and stack any of these sizes at up to 10 different positions along the frame joint. This facilitates the perfect joining solution especially for wide mounding with variability in height. The VN4 MCU handles all types of wood, plastics and MDF materials.

It holds approximately 2000 frame profiles in memory with 3000 frame memory, memory expansion optional. It has a bar code option, one touch recall and is operator programmable. Designed for ease of use, particularly well suited for the custom frame shops, compact and well constructed for years of trouble free operation. Quiet and powerful, comes on compact base which can be set on or notched into work station. It has 3 operating positions, two stage foot pedal allows user to see quality of join before nailing. Nail head remains stationary while moulding moves. Stacks up to 10 position per corner, has a pneumatic load/feed system to eliminate jams, drives at 110 psi, adjusts to join almost any profile from 1/4 inch to 5 1/4 inches high, and from to 3/8 inch to 5 inches wide. Air and electronically operated, basic machine is 29 inches wide x 25 inches long x 55 inches high.

Features:

- Recalls at the touch of a button
- Optional bar code reader
- Computer electronic controls with manual back-up
- Fast and easy nailing position set up
- Double hydraulic hold down clamps available
- Multi angle adjustable back fence with tilt adjustment for 4, 6 or 8 sided frames
- Accommodates 5 nail height sizes
- Built-in reserve air tanks for consistent operating pressure.
- Comes with large assortment of special hold down clamps for almost any profile.

UE-112823A-5 Bienfang 4468H Vacuum Heat Press

(SOLD)

***Manufacturer's Information:

Vacuum Press is the preferred choice of professionals. The Vacuum Press offers a space-saving work surface and the option of processing several pieces of varying size and thickness simultaneously. Complete with digital display and touch pad controls, it is guaranteed to provide years of service with its durable framework and built-to-last construction.

Applications:

- Cold mounting
- Laminating
- Heat mounting
- Appling texture

Operational Features:

- Pre-Drying Materials
- Eliminates pre-drying steps
- Available in three sizes (3648H, 4468H, 5298H)
- Dura-Box alloy frame with tight vacuum seal
- Space-saving work surface
- Maintenance-free vacuum pump
- Programmable system controller with factory-installed
- Programs for temperature and dwell time
- Easy-read digital display
- Touch-pad controls
- End-of-cycle signal

UE-112823A-6 Morso Chopper w/ Measuring Table w/ Extra Set of Blades

(SOLD)

***Manufacturer's Information:

Morso Model F Mitering Machine

Morso Model F mitring machine cuts double mitre at 45 degrees and single mitre up to 90 degrees. Tenon, mortise joints, and a wide variety of angled cuts can also be made. When using the Morso F, you will have no dust compared to a saw. Also, the waste of your moulding will be minimized as Morso F cuts double mitres very close, ( less than one mm waste of moulding ). The mitre saw cannot do the mitres as close, and therefore the waste by using a saw, will always be minimum one centimetre. One centimetre of waste does not sound of much, but if a calculation is done of 100 cuts a day, it actually turns out that the waste over a year is 260 meters waste of moulding. ( That is only with 100 cuts a day) Morso F leaves the cut surface of the wood perfectly smooth and accurate, requiring no further preparation before joining. The horizontal movement of the knife block is stepwise adjustable. The sliding longitudinal stop and measuring scale ensure accurate repeat work. The special lever system of the machine ensure a very easy operation. Twin return springs automatically bring the knives back to starting position. Morso F is delivered with safety guard, waste chute, sliding longitudinal stop, measuring scale, adjustable fences ( 45 degrees & 90 degrees), and adjustable rebate supports. Morso F is manually operated with a foot pedal - needs no compressor or electricity and can therefore be operated anywhere.

Technical data for Morso Model F Mitring Machine:

- Double mitre: 45 degrees
- Single mitre: up to 90 degrees
- Cutting width: max. 100 mm
- Cutting height: max. 160 mm
- Square cutting: 65/65 mm
- Measuring scale: up to 1,500 mm
- Net weight: 90 kg

UE-112823A-7 Panther P150/50AL 13 Gallon Tank Silent Air Compressor

(SOLD)

***Manufacturer's Information:

HP: 1.5
- Completely silent & vibration free operation

Output Free Air: 6.3 CFM
- Internally powder coated air tank

Output Free Air: 180 L. Min
- Pressure switch allowing for automatic start/stop

Max Pressure PSI: 120 PSI
- Outlet pressure regulator & shut off valve

Max Pressure Bar: 8 bar
- 5 Micron outlet moisture filter/optional auto-drain

Max Current 115V: 14.4 Amps
- Tank pressure and outlet pressure gauges

Max Current 220V: 7.2 Amps
- ASME approved safety valve

Noise Level: 42 db/A
- Conveniently located top tank drain

Tank Size Gal.: 13
- Durable air tank w/ top drain and internal/external coating

Tank Size Lt.: 50
- Long Service Life backed by a 24 month warranty and dedicated tech support

Dimensions (ins.): 34 x 16 x 29
Weight: 150 lbs
Packed Dimensions (ins.): 48 x 40 x 34
Packed Weight: 248 lbs

UE-112823A-8 CTD Dust Collection System

(SOLD)

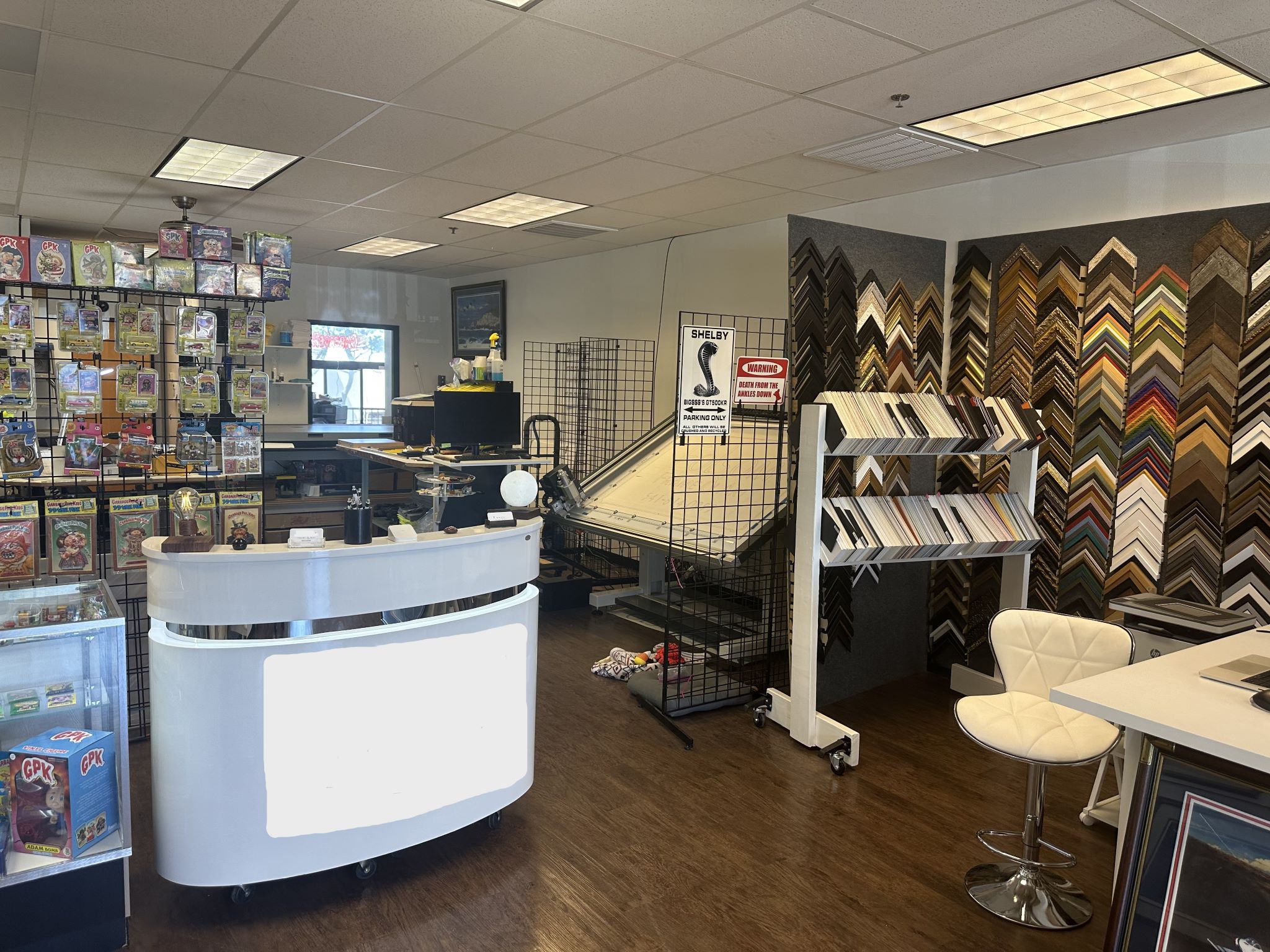

UE-112823A-9 Display Fixture Lot: Including Retail Counter, Work Table, Etc.

(SOLD)
