Equipment Lot: ITW AMP VN2+1 Vnailer, Fletcher 3000 Cutter & Double Dewalt Miter Chop Saw with Phaedra Measuring System

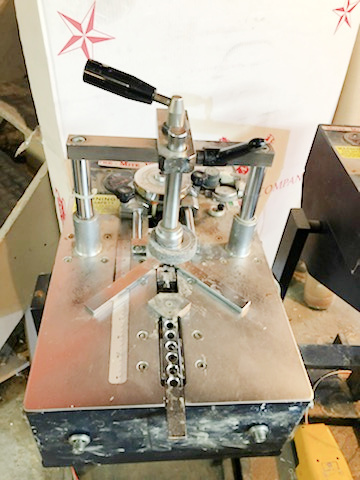

UE-020422G-1 ITW AMP Miter Mite VN2+1 (AMP U300) Joiner

(SOLD)

From the Seller: "One works, one is parts."

***Manufacturer's Information:

Unique Performance Features

The U-300 is a bench-top, frame joining machine and the most popular model of custom framer, sign and graphic shops. It is compact, well constructed, and built for many years of trouble free operation. The design of the U-300 allows the operator to set the front and back measuring stops for V-Nail insertion. The frame is then moved across the nail head and V-Nails are driven or stacked anywhere along the frame joint. The V-Nail insertion is actuated through the use of a pneumatic pedal.

Features pneumatic loader to eliminate nail jams
"Soft Clamping" pneumatic feature for damage free joints
Quick-change, magnetic pad hold down feature fitting most moulding profiles
Small table-top footprint needed - 19" (485mm) wide x 18" (456mm) length x 14" (356mm) high
Operates only with pneumatic air, no electrical hook-up needed
Dual function foot pedal for separate control of mould clamping and V-Nail insertion

Designed with a unique, trouble free piston V-Nail driver block-blade system for years of dependable single and multi-stacking operations

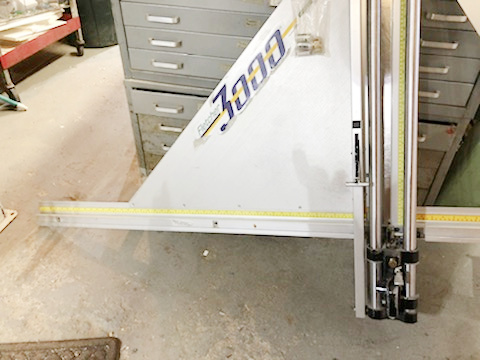

UE-020422G-2 Fletcher - Terry 3000 Multi Material Cutter

(SOLD)

***Manufacturer's Information:

The 3000 is the ideal product to make short work of the critical task of preparing your materials for framing. With its simplistic design and user-friendly cutting head, you will see an immediate improvement in accuracy and productivity in the first day of use. Our versatile 3000 unit features a three position cutting turret for glass, acrylics and mat board sizing. Equipped with a patented score and break-out feature, the 3000 unit provides effortless and operator-safe cutting with every use.

Available in 48" (1219mm) or 60" (1524mm) vertical cutting capacity.

Substrate Cutting Capabilities:

- Glass: Up to 1/4" (6 mm)
- Mirror: Up to 1/4" (6 mm)
- Acrylic: Up to 1/4" (6 mm)
- Matboard: 4, 8, 12 ply
- Foamboard: Up to 1/4" (6 mm)

Technical Specifications:

- Vertical Cutting Capacity: 48"
- Cutting Head: Rides on high tensile strength steel, hard chrome plated and polished, resulting in smoother gliding action for consistent cutting head performance and longevity.
- Vertical Bars: Rails do not bend or flex during the cutting process for straight, accurate cutting over the entire substrate height.
- Material Clamping System: Patented lever-type clamping system that secures in place substrate heights up to 48" to prevent buckling and shifting of material during the cutting process.

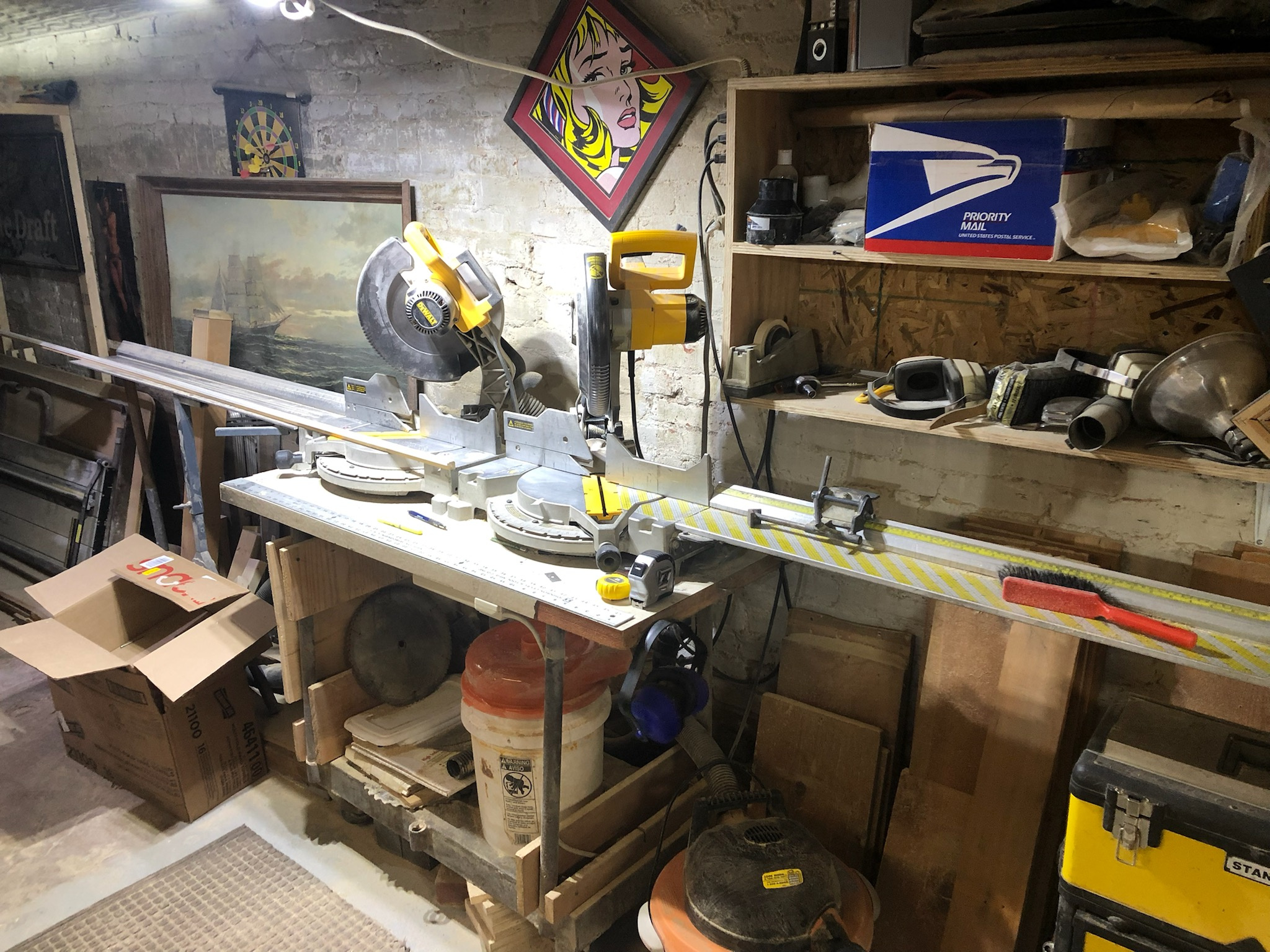

UE-020422G-3 Double Dewalt Miter Chop Saw with Phaedra Measuring System

(SOLD)
