Used
Equipment Lot: Innovative Digital Systems Revolution 360° - Model 2.0 UV Rotary Printers
SKU: UE-121123D
Manufacturer: Equipment Lot
Date listed: December 11, 2023
Equipment Lot: Innovative Digital Systems Revolution 360° - Model 2.0 UV Rotary Printers
Available Items in Lot:
- UE-121123D-1 Revolution 360° - Model 2.0
- UE-121123D-2 Revolution 360° - Model 2.0
From the Seller: "I have 2 printers available. Both are in great working order and can be tested on site. We were acting as a fulfilment company and our customer is no longer marketing these items. So, we no longer need the machines. Each printer comes with a computer and software to operate the printer. Photo of the product being printed on is include as an example of work being done."
*Items in this lot can be purchased individually or as a grouping.
About this Item
Features & Specifications

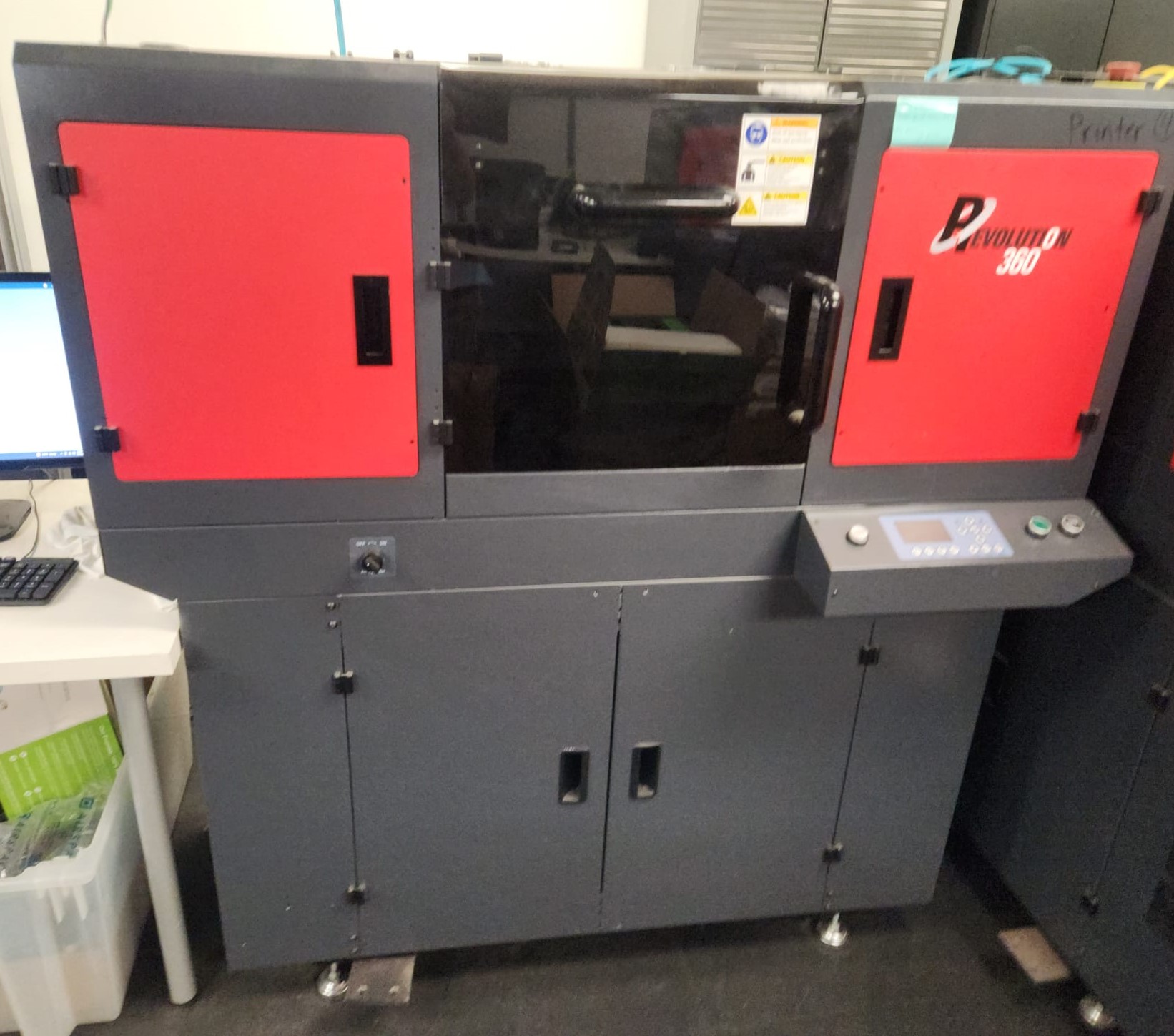

UE-121123D-1 Revolution 360° - Model 2.0
***Manufacturer's Information:
Revolution 360 T UV Rotary Printer
- Printhead: 4 printheads: DOD piezo electric grayscale printheads, automatic voltage and temperature control, Ricoh Gen 4
- Maximum Resolution: 1200 x 900 DPI
- Ink: UV/LED curable C, M, Y, K, W, V (All inks are Prop65 compliant)
- Ink Capacity: 1.5L per color
- Maximum Print Size: 210mm in length (8.25”)
- Standard Substrate Size: Diameter: 40mm to 120mm (1.57” and 4.7”), Length: up to 270mm (10.63”) w/standard lamp set 220mm, 6 Watt UV LED lamp
- Interface/RIP Software: Gigabit Ethernet, RIP-Color Print, PCS 6
- File Formats: JPEG, TIFF, PDF, EPS and DCS
- Environment: Temperature: 16-28 C (61-82 F). Humidity: 40-70% (Recommended) Altitude: Up to 1609m (5280ft). Dust: Equivalent to normal office level
- Electrical: Single phase 220V (50/60Hz, AC); 7 Amps Maximum; 1 KW
- Air: 25 PSI Shop Air
UE-121123D-2 Revolution 360° - Model 2.0
***Manufacturer's Information:
Revolution 360 T UV Rotary Printer
- Printhead: 4 printheads: DOD piezo electric grayscale printheads, automatic voltage and temperature control, Ricoh Gen 4
- Maximum Resolution: 1200 x 900 DPI
- Ink: UV/LED curable C, M, Y, K, W, V (All inks are Prop65 compliant)
- Ink Capacity: 1.5L per color
- Maximum Print Size: 210mm in length (8.25”)
- Standard Substrate Size: Diameter: 40mm to 120mm (1.57” and 4.7”), Length: up to 270mm (10.63”) w/standard lamp set 220mm, 6 Watt UV LED lamp
- Interface/RIP Software: Gigabit Ethernet, RIP-Color Print, PCS 6
- File Formats: JPEG, TIFF, PDF, EPS and DCS
- Environment: Temperature: 16-28 C (61-82 F). Humidity: 40-70% (Recommended) Altitude: Up to 1609m (5280ft). Dust: Equivalent to normal office level
- Electrical: Single phase 220V (50/60Hz, AC); 7 Amps Maximum; 1 KW
- Air: 25 PSI Shop Air
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in Arizona. Customers can pick the machine up or have it shipped for an additional fee.
Get Pricing
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in Arizona. Customers can pick the machine up or have it shipped for an additional fee.
