Used
Framing Equipment Lot: Morso Air Assist Chopper, Mitre Mite VN42 Vnailer & Fletcher 3000 Cutter
SKU: UE-022421A
Manufacturer: Equipment Lot
Date listed: February 24, 2021
Picture Framing Equipment Lot: Morso Air Assist Chopper, ITW AMP Mitre Mite VN42 Vnailer & Fletcher 3000 Cutter
Click Here to Contact Us for Pricing
Available Items in Lot:
About this Item
-
- SKU # UE-022421A-4 Assorted Glass, Moulding and Matboard
- SKU # UE-022421A-5 Simplex Mat Cutter
Sold Items in Lot:
-
- SKU # UE-022421A-1 Morso-H Semi Automatic / Pneumatic Chopper Mitering Machine
- SKU # UE-022421A-2 ITW AMP Mitre Mite VN42 Vnailer / Joiner / Underpinner
- SKU # UE-022421A-3 Fletcher - Terry 3000 Multi Material Cutter
From the seller: ?All equipment in this lot are in good working condition unless otherwise specified below.?
Machines can be purchased as a lot or individually. See below for individual item pricing.
UE-022421A-1 Morso-H Semi Automatic / Pneumatic Chopper Mitering Machine $ 3,500 (Sold)
Type: Air Assist Morso Chopper
*** From the manufacturer:
Morso-H Semi Automatic / Pneumatic Chopper Mitering Machine
The MORS?-H Semi-Automatic Pneumatic Mitering Chopping Machine leaves the cut surface of the wood perfectly smooth cut.
Features:
-
- The air cylinder on this machine pulls the knives through the work piece for an almost effortless cut.
- The main advantage of this machine over foot-operated machines is that the MORS? H is much more useful for repetitive work.
Technical Specifications: - Double Miter: 45 degrees
- Single Miter Up to: 90 degrees
- Cutting Width Max.: 100 mm (4?)
- Cutting Height Max.: 160 mm (6 1/3?)
- Square Cutting: 65 / 65 mm (2 1/2?)
- Measuring Scale Up to: 1500 mm (60?)
For additional information, including technical specifications, please visit the MORS? site: Visit the MORS? Site
UE-022421A-2 ITW AMP Mitre Mite VN42 Vnailer / Joiner / Underpinner $ 1,500 (Sold)
***Manufacturer?s Information:
The Mitre-Mite VN 42 has been designed for ease of operation and is particularly well suited for assembling larger frames. This machine comes with a height adjustable base and has a convenient tilt / roll feature which allows for easy movement around the shop. it can be operated from the front or back and has a dual stage foot pedal which allows the framer to see if the corner is properly aligned before nailing. After the framer sets the stops, the hand lever is then used to position the nail head for driving or stacking V-Nails? any where along the frame joint.
MACHINE SIZE: Width 14? / Length 19? / Height 33 to 43?? / Weight 150 lbs
Power Source: Pneumatic
FRAMING CAPABILITY: Frame Width 3/8? to 6 1/2? / Frame Height 1/4? to 4 1/2?
NAIL SIZES: 3, 5, 7, 10, 12, 15 mm
OPTIONAL ACCESSORIES: Wood Support Table, Metal extension wings,

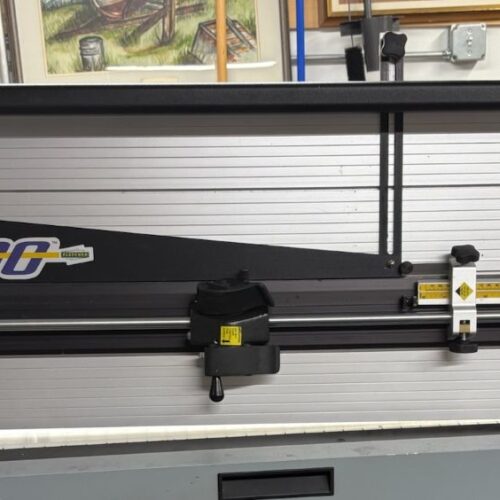

UE-022421A-3 Fletcher - Terry 3000 Multi Material Cutter $ 700 (Sold)
***From the manufacturer:
Fletcher 3000
The 3000 is the ideal product to make short work of the critical task of preparing your materials for framing. With its simplistic design and user-friendly cutting head, you will see an immediate improvement in accuracy and productivity in the first day of use. Our versatile 3000 unit features a three position cutting turret for glass, acrylics and mat board sizing. Equipped with a patented score and break-out feature, the 3000 unit provides effortless and operator-safe cutting with every use.
Available in 48? (1219mm) or 60? (1524mm) vertical cutting capacity.
Manufacturer?s Information:
The Fletcher 3000? Wall Machine has a proven track record of success in frame shops worldwide. With its innovative and patented cutting process, the 3000 provides effortless cutting of the materials that matter to you most. The 3000 has quickly become the standard in picture framing for sizing of matboard, foamboard,glass and plastics; all with equal accuracy and consistency.
Patented glass cutting turret has a ramping feature that allows the lifting of turret device on top edge of glass resulting in a cleaner edge break.
Wall mounted or free-standing
Substrate Cutting Capabilities:
Glass: Up to 1/4? (6 mm)
Mirror: Up to 1/4? (6 mm)
Acrylic: Up to 1/4? (6 mm)
Matboard: 4, 8, 12 ply
Foamboard: Up to 1/4? (6 mm)
Technical Specifications:
Vertical Cutting Capacity: 60? (1.52m)
Cutting Head: Rides on high tensile strength steel, hard chrome plated and polished, resulting in smoother gliding action for consistent cutting head performance and longevity.
Vertical Bars: Rails do not bend or flex during the cutting process for straight, accurate cutting over the entire substrate height.
Material Clamping System: Patented lever-type clamping system that secures in place substrate heights up to 60? (152cm) to prevent buckling and shifting of material during the cutting process.
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Machine Dimensions:
Height: 72? (183 cm)
Width: 80? (203 cm)
Depth: 11.64? (30 cm)
Weight: 70 lbs. / 32 kg
Cut Capacity: 60? (152 cm)
Needed Wall Space: 36.38 sq. ft.
Shipping Weight: 110 lbs./ 49 kg
UE-022421A-4 Assorted Glass, Moulding and Matboard $ 300
UE-022421A-5 Simplex Mat Cutter $ 200
Customers can pick these items up in South Carolina or they can be shipped for an additional fee.
*** It is the buyer?s responsibility to check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer?s website. Although we strive for accurate information, all equipment is sold ?As Is?.
