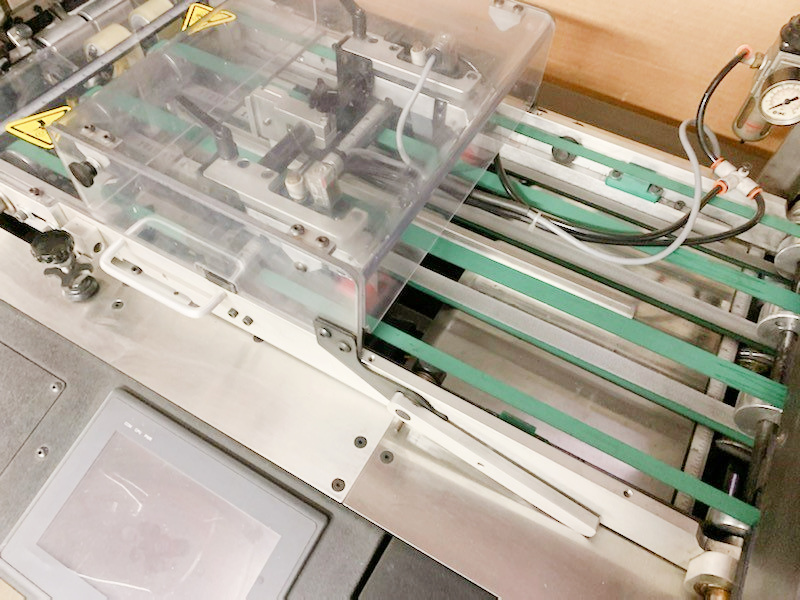

Kirk Rudy 545D Dual Head Tabber

• **** From the Manufacturer:
• KR545D Tabber www.kirkrudy.com Outstanding Performance Designed and engineered to meet the USPS specifications for self-mailers and booklets that require multiple tabs per piece, the KR545D utilizes a unique dual web applicator and innovative, patented, trailing edge tab mechanism. • Servo driven web and trailing edge kicker • Handles large 18” diameter rolls • Also applies labels and stamps • Operates inline with standard addressing systems
• General Specifications:
• Length 72” 182.9 cm Width 38” 96.5 cm Heigth 77” 195.6 cm Shipping Weight 1395 lbs. 632.76 kg Physical English Metric Electrical Requirements Compressed Air Requirements Operating Speeds Products Voltage Amp Phase Hz 220 VAC 50 1 50/60 Tabs/Labels Min. .50” dia. (1.27 cm) Max 1.5” dia. (3.81 cm) Tab Quantity 1 to 6 Tabs or STamps Tab Accuracy +/- .0625” (1.6 mm) Labels 3” (7.62 cm) Width x 2” (5.1 cm) Length Materials Minimum: 3.50” W (8.9 cm) 3.50” L (8.9 cm) .008” T (0.2 mm) Maximum: 11” W (27.9 cm) 11” L (27.9 cm) .25” T (6.3 mm) 80 psi at 5.0 acfm Maximum 350 fpm (138 mpm) NOTE: Speeds are dependent on material being fed. • Servo driven controls • Side register belts for tight tabs • Touch screen operator interface • Side to side tabletop adjustment • Quick-release upper belt system • Quick-release peel plates • Stop-in/Stop-out electrical interface • KR conveyor pass through controls
