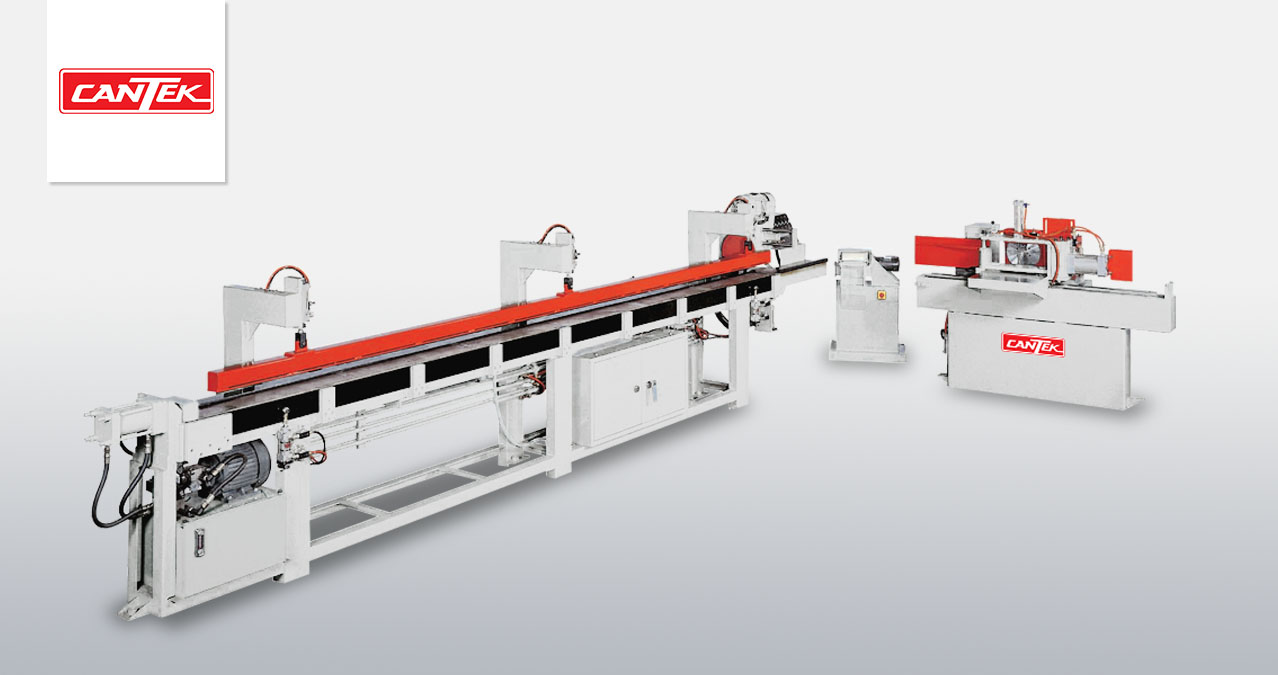

Cantek FJ16 Manual Finger Jointer

SKU: CT-106360
Manufacturer: Cantek

Entry-level finger jointer solution for lower production applications.

The Cantek FJ16 Manual Finger Jointer is simple in design and easy to operate. As our entry-level model, it offers exceptional affordability and is perfectly suited for workshops where production volumes don’t warrant investment in a high-end system. With a single shaper, glue, and press setup, this system delivers outstanding value in terms of affordability and performance. This machine offers three configuration upgrade choices to align with your production needs: manual, semi-automatic, and automatic. The FJ-16 Manual Finger Jointer can perform both horizontal and vertical cuts ranging from 4.5 to 6 inches. Despite its simple design, this finger jointing system doesn’t compromise on quality or performance, establishing itself as a lasting and groundbreaking manual solution in the woodworking industry.

Why Cantek FJ16 Manual Finger Jointer?

- Entry-level model
- Cost-effective model
- Easy to operate
- Low maintenance
- Only 3 operators are required for maximum production
- Simple upgrade options to increase production volume

GET PRICING

Features & Specifications

Features:

- The F-C51 manual finger shaper is a hand-operated model that consists of a trim saw, a shaper, and a moving table to cut the left and the right side of the workpiece
- The F-G01 hand gluing station allows the operator to manually glue the finger tenons before going into the assembler
- The F-A06 assembly press is suited for jointing two workpieces up to lengths of 14 ½ feet and although the material infeed and cut-off are operated manually, the jointing motion is automatically operated with a powerful hydraulic system.

Specifications:

The FJ-16 Manual Finger Jointer comes with:

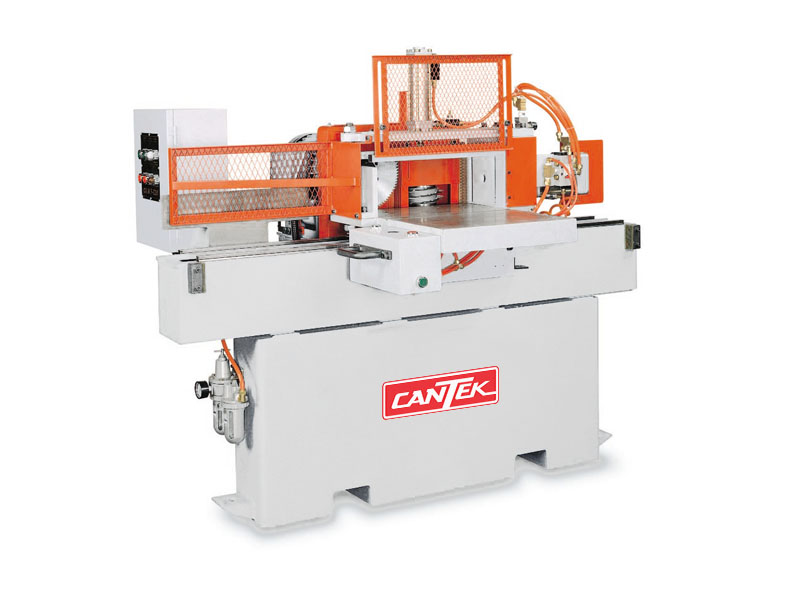

F-C51 Manual Finger Shaper

- Max. available width working table: 450 mm (17.5”)
- Range of workpiece length: 115~1000 mm (4.5~39.4”)
- Range of workpiece width: 30~450 mm (1.2~17”)
- Range of workpiece thickness: 30~160 mm (1.2~6”)
- Trimming saw speed: 2800 RPM
- Scoring saw speed: 5000 RPM
- Bores diameter: 1 x 150 mm (5.9”), 1 x 100 mm (3.9”)
- Packing dimension (L x W x H): 70 x 45.3 x 57.1”

POWER REQUIRED

- Finger cutter: 7 1/2 HP
- Trimming saw: 5 HP

1: Finger cutters – 10 pieces (160X70X4mm X2T)
2: Comes with saw blades
3: CSA-approved electrical components

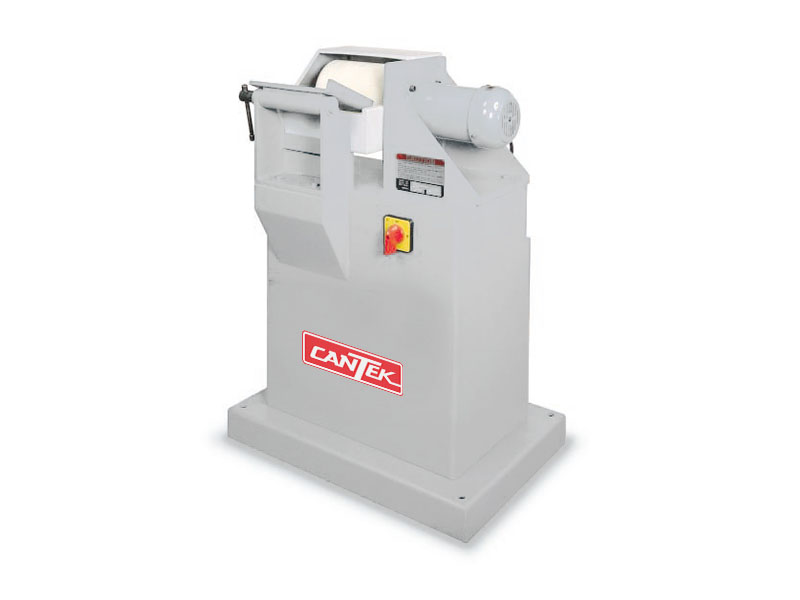

F-G01 Manual Gluing Unit

Machine dimensions (L x W x H): 24 x 16 1/2 x 33″

F-A06-16’ Single Stage Manual Finger Press

- Max. working size length: 4900 mm (192”)
- Working size width: 20~160 mm (0.79~6”)
- Working size thickness: 20~102 mm (078~4”)
- Packing dimensions (L x W x H): 271 x 33 1/2 x 53”

POWER REQUIRED
- Sizing saw: 3 HP
- Oil pump: 3 HP

1: Comes with saw blades
2: CSA-approved electrical components

Pricing & Shipping

Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.

Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
