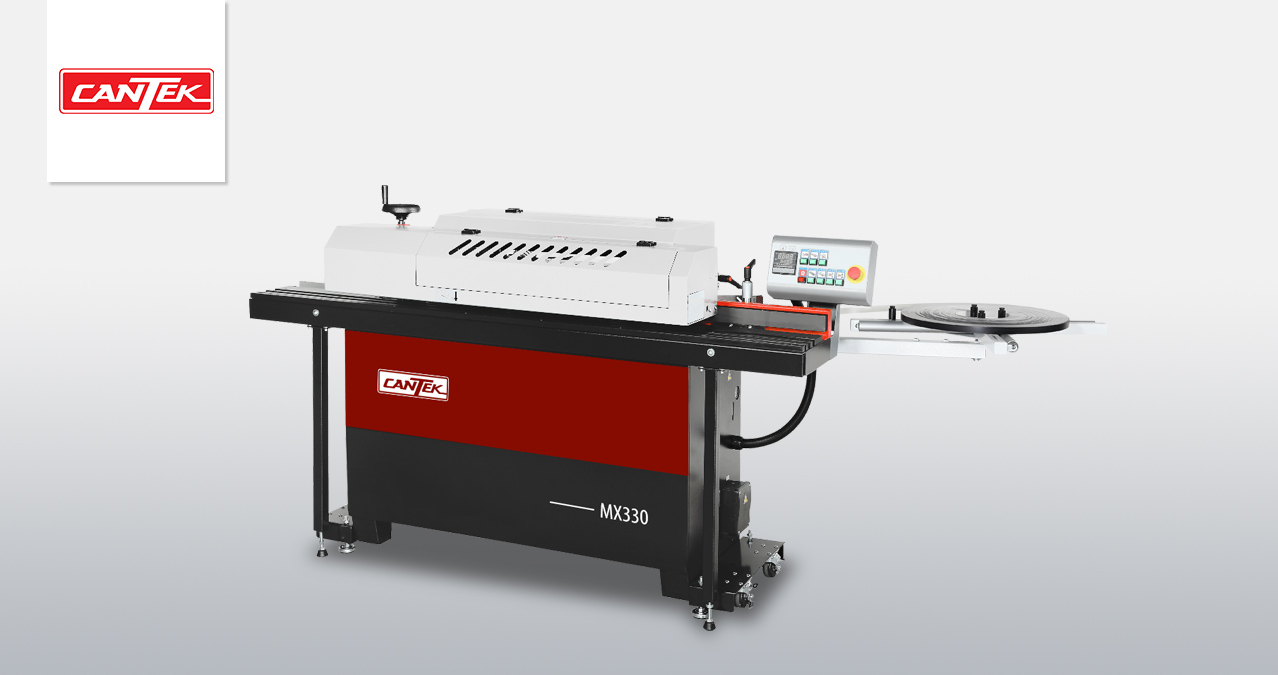

Cantek MX330 Automatic Edgebander

SKU:
Manufacturer: Cantek

Compact design with best-in-class edgebanding result.

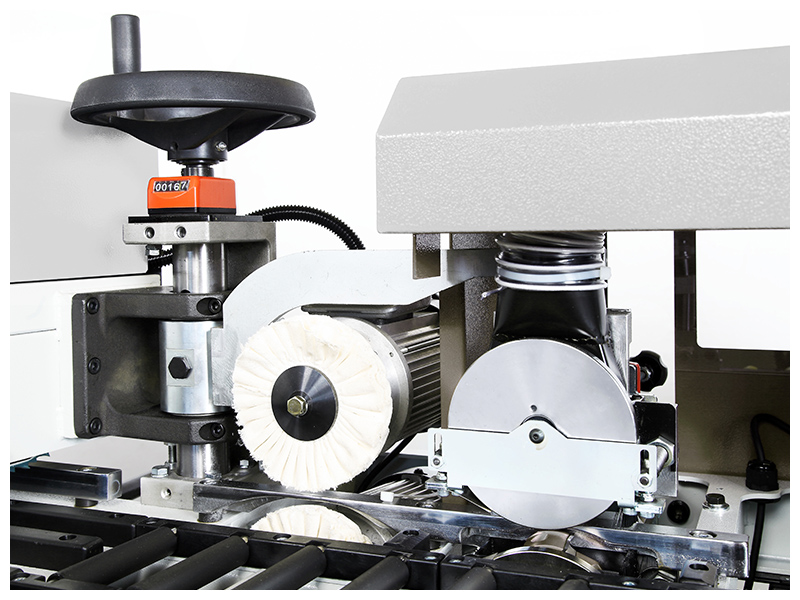

The Cantek MX330 Automatic Edgebander is a compact entry-level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX330 can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Why Cantek MX330 Automatic Edgebander?

- Compact design makes it the ideal edgebanding solution for small workshops.
- Precise adjustments for optimum edge quality.
- Castor wheel adding mobility to your edgebander.
- Available in 230V 1 phase.

Link to Video of the Machine

GET PRICING

Features & Specifications

Features:

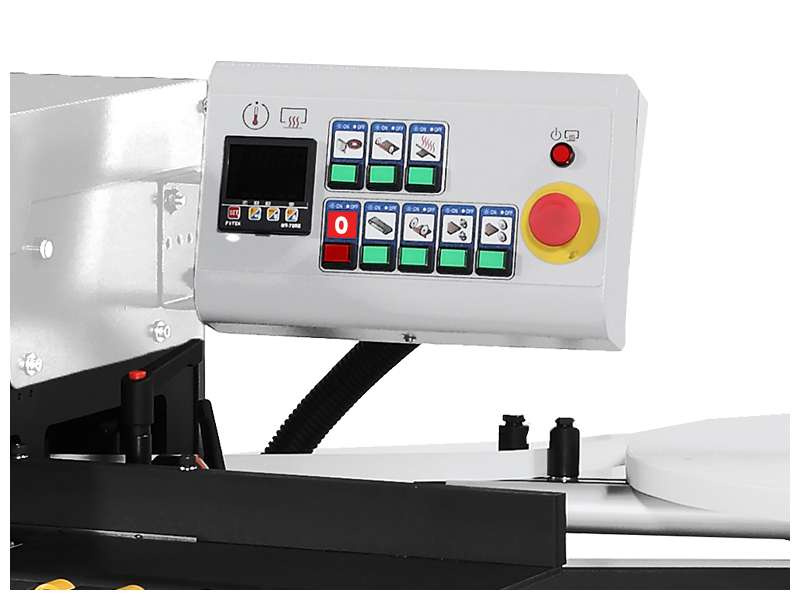

- PLC control system with LED display and keypad.

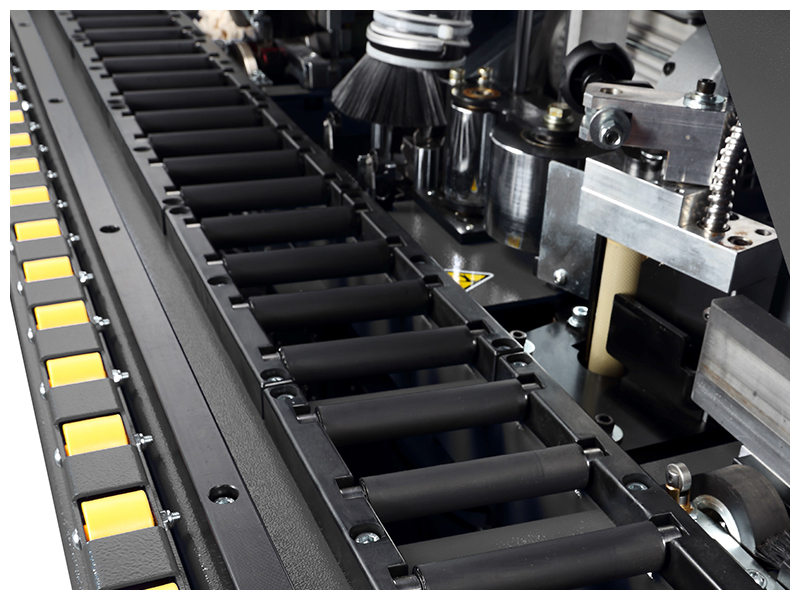

- Workpiece is fed by upper conveyor belt & idle table rollers.

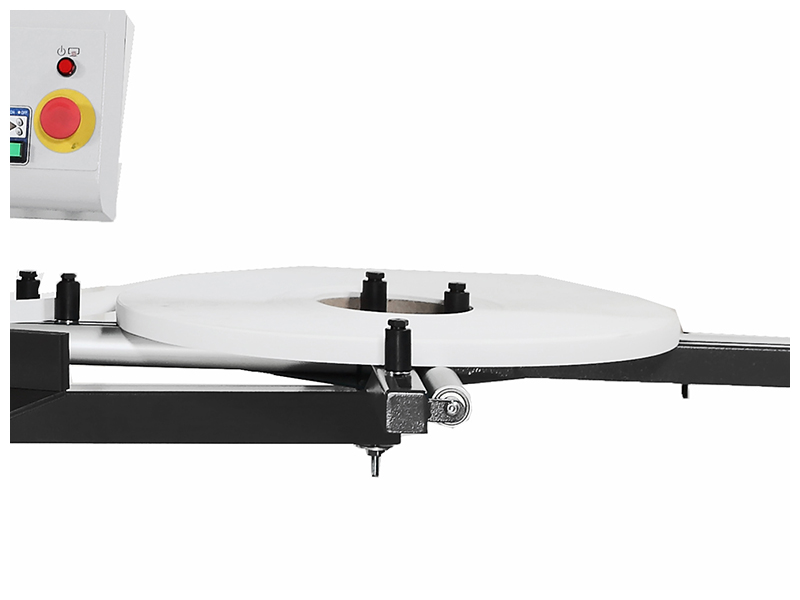

- Edge coil support plate: Ø 800 mm (31.5″) for PVC/ABS.
- Automatic edge feeding with a thickness capacity of 0.4-3 mm.
- Coiled edge bands up to 2 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

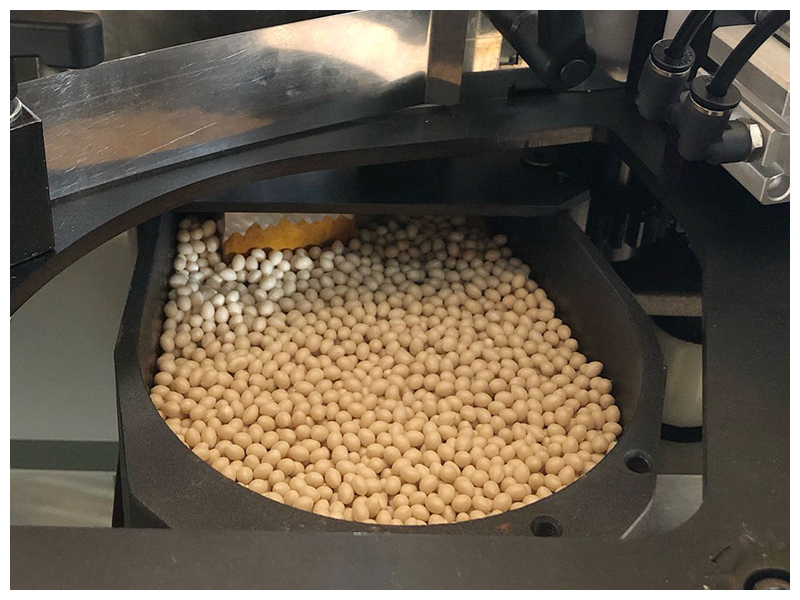

- 2 kg (2.6 lb) Teflon-coated hot-melt glue pot.

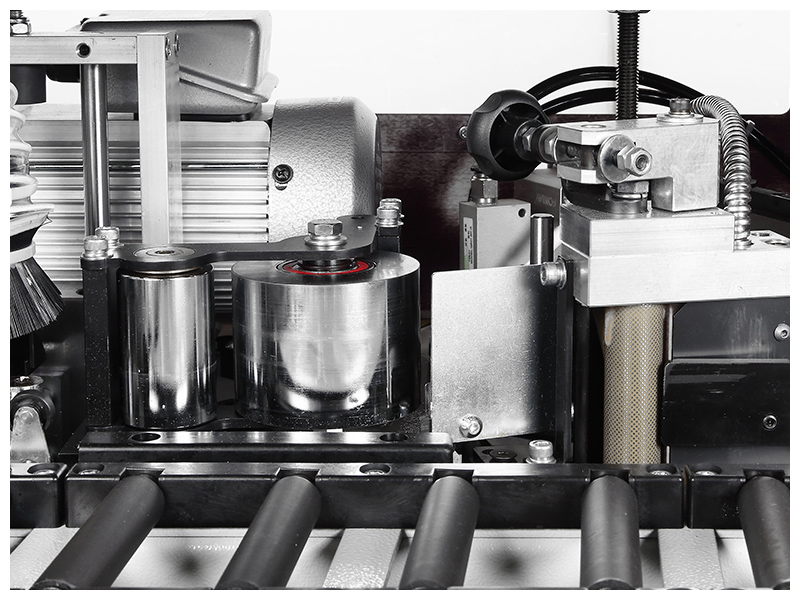

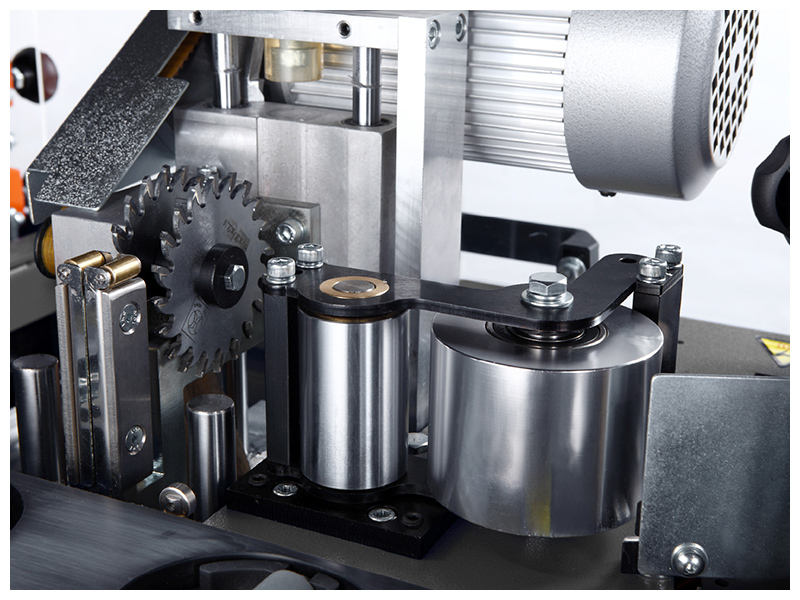

- Spring-loaded pressure unit with (2) chrome pressure rollers.
- Heavy-duty pressure beam with extendable workpiece support.
- Heated infeed fence for pre-heating the panel for optimum glue penetration.

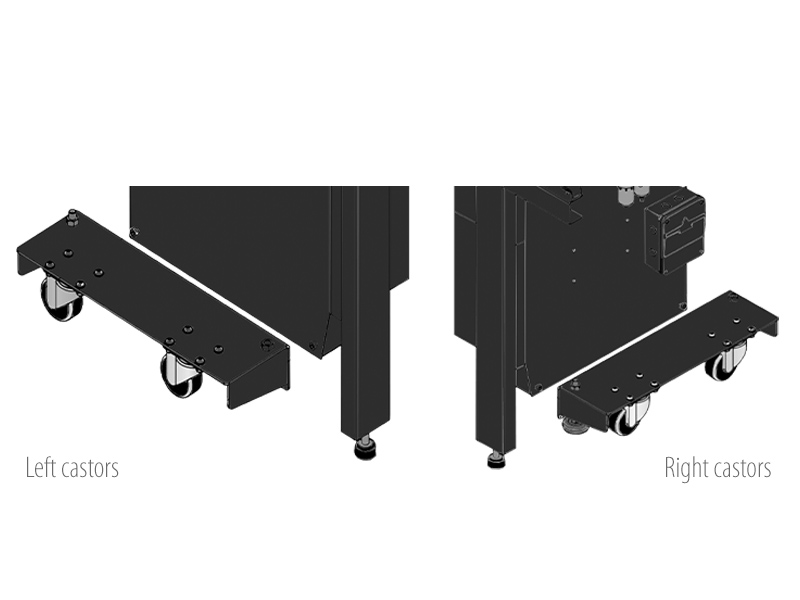

- Mobility wheels allow you to move your edge bander in and out of position to save you work space.

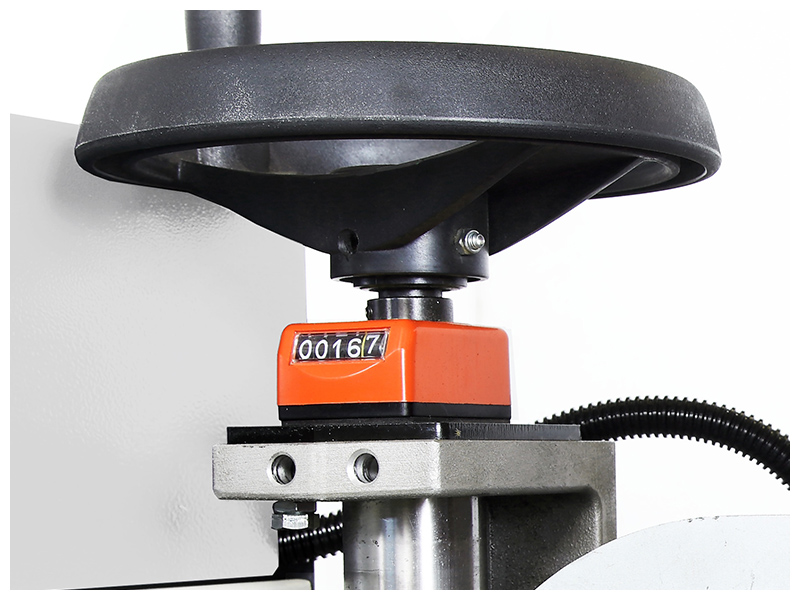

- Mechanical digital readouts for convenient and quick adjustment to the working units & thickness.

Specifications:

- Feeding speed: 16.4 FPM || 5 m/min.
- Panel thickness: 0.472~1.77″ || 12~45 mm
- Edge thickness: 0.0158″~0.0787″ || 0.4 ~ 2 mm
- Min. panel width: 4.73” || 120 mm
- Min. panel length: 9.45” || 240 mm
- Working table height: 33.7″ || 856 mm
- Dust collection outlet dia.: 2 x 4″ = 800 CFM || 2 x 100 mm = 800 CFM
- Total connected power: 4.5 HP || 3.3 KW
- Air: 6 CFM / 85 – 100 PSI || 169 liters/min / 6 – 7 kg/cm2
- Max. machine dimensions (LxWXH): 110″ x 61″ x 49.4″ || 2780 x 1540 x 1255mm
- Machine weight: 766 lbs. || 348 kgs.
- Shipping dimensions (LxWxH): 89″ x 29″ x 52″ || 2261 x 737 x 1321mm
- Shipping weight: 1021 lbs. || 464 kgs.
- Electrical requirements: 230/1/60 = 30 amps || 230/1/60 = 30 amps
