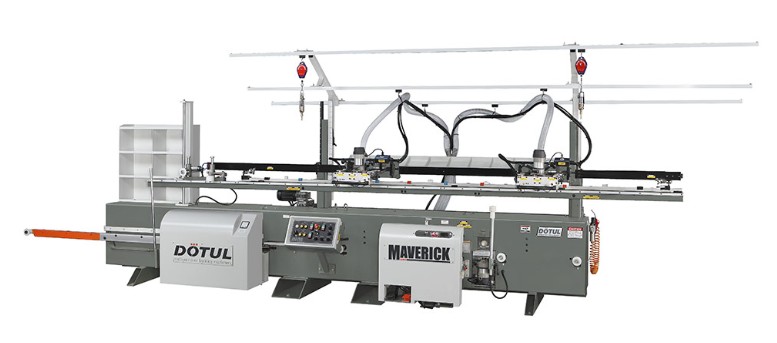

Dotul Maverick DT-500 Door Machine

***Manufacturer's Information:

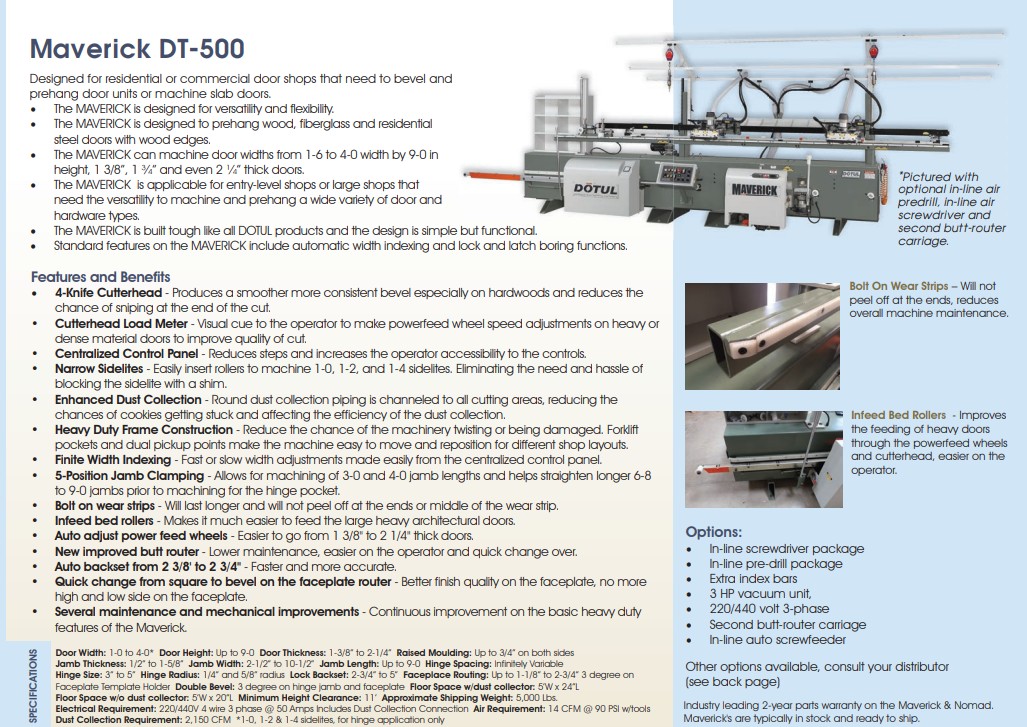

Features & Specifications:

• 4-Knife Cutterhead - Produces a smoother more consistent bevel especially on hardwoods and reduces the
chance of sniping at the end of the cut.
• Cutterhead Load Meter - Visual cue to the operator to make powerfeed wheel speed adjustments on heavy or
dense material doors to improve quality of cut.
• Centralized Control Panel - Reduces steps and increases the operator accessibility to the controls.
• Narrow Sidelites - Easily insert rollers to machine 1-0, 1-2, and 1-4 sidelites. Eliminating the need and hassle of
blocking the sidelite with a shim.
• Enhanced Dust Collection - Round dust collection piping is channeled to all cutting areas, reducing the
chances of cookies getting stuck and affecting the efficiency of the dust collection.
• Heavy Duty Frame Construction - Reduce the chance of the machinery twisting or being damaged. Forklift
pockets and dual pickup points make the machine easy to move and reposition for different shop layouts.
• Finite Width Indexing - Fast or slow width adjustments made easily from the centralized control panel.
• 5-Position Jamb Clamping - Allows for machining of 3-0 and 4-0 jamb lengths and helps straighten longer 6-8
to 9-0 jambs prior to machining for the hinge pocket.
• Bolt on wear strips - Will last longer and will not peel off at the ends or middle of the wear strip.
• Infeed bed rollers - Makes it much easier to feed the large heavy architectural doors.
• Auto adjust power feed wheels - Easier to go from 1 3/8" to 2 1/4" thick doors.
• New improved butt router - Lower maintenance, easier on the operator and quick change over.
• Auto backset from 2 3/8' to 2 3/4" - Faster and more accurate.
• Quick change from square to bevel on the faceplate router - Better finish quality on the faceplate, no more
high and low side on the faceplate.
• Several maintenance and mechanical improvements - Continuous improvement on the basic heavy duty
features of the Maverick

- Door Width: 1-0 to 4-0* Door Height: Up to 9-0 Door Thickness: 1-3/8” to 2-1/4” Raised Moulding: Up to 3/4” on both sides
- Jamb Thickness: 1/2” to 1-5/8” Jamb Width: 2-1/2” to 10-1/2” Jamb Length: Up to 9-0 Hinge Spacing: Infinitely Variable
- Hinge Size: 3” to 5” Hinge Radius: 1/4” and 5/8” radius Lock Backset: 2-3/4” to 5” Faceplace Routing: Up to 1-1/8” to 2-3/4” 3 degree on
- Faceplate Template Holder Double Bevel: 3 degree on hinge jamb and faceplate Floor Space w/dust collector: 5’W x 24”L
- Floor Space w/o dust collector: 5’W x 20”L Minimum Height Clearance: 11’ Approximate Shipping Weight: 5,000 Lbs.
- Electrical Requirement: 220/440V 4 wire 3 phase @ 50 Amps Includes Dust Collection Connection Air Requirement: 14 CFM @ 90 - PSI w/tools
- Dust Collection Requirement: 2,150 CFM *1-0, 1-2 & 1-4 sidelites, for hinge application only
