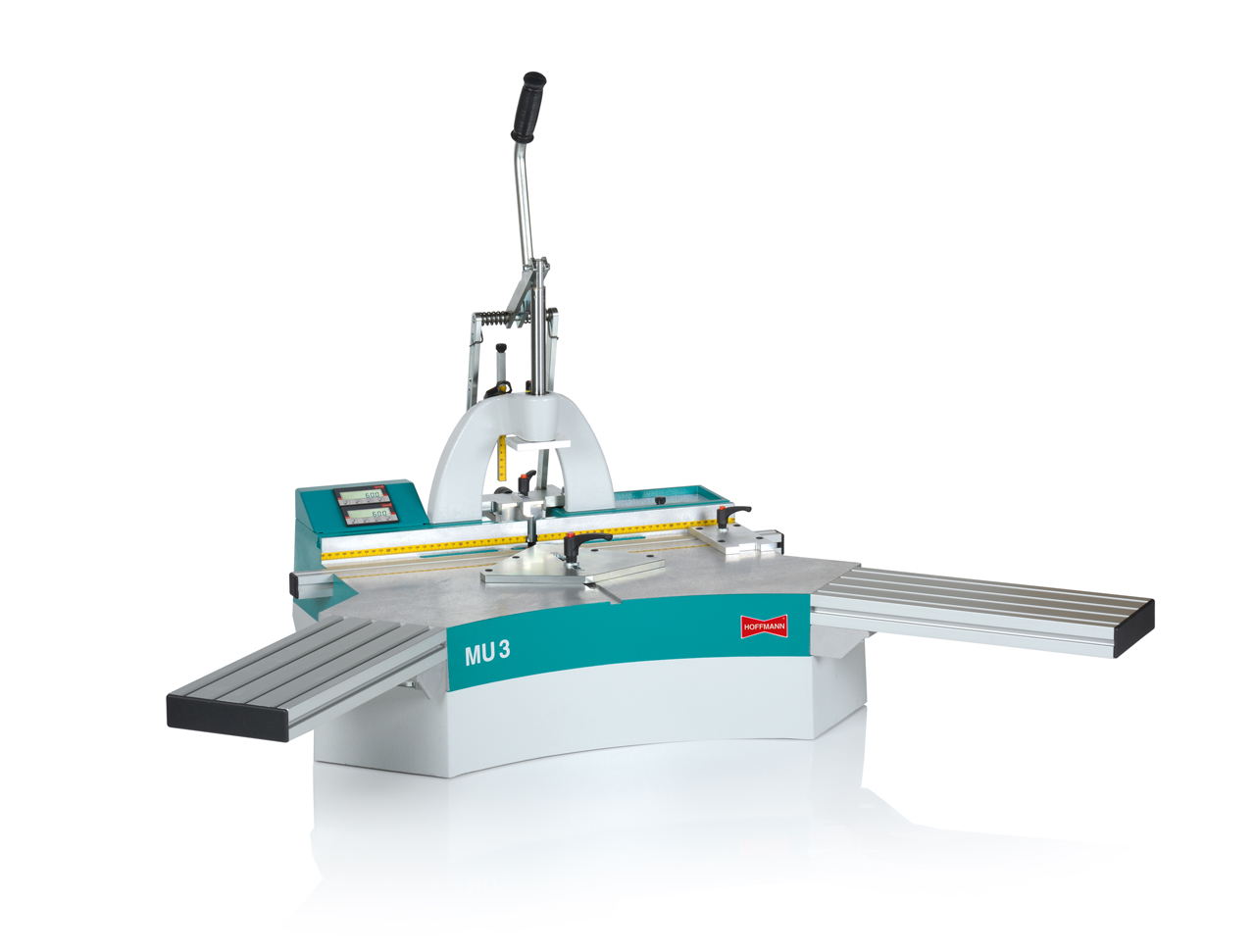

Hoffmann MU3-D Manual Dovetail Routing Machine with Digital Position Display

Highlights:

This manually operated dovetail routing machine does not require a compressed air supply. It can be equipped with the optional left and right hand extension tables, a helpful feature especially when processing longer parts.

Standard Features:

Hoffmann Dovetail Routing Machine, model MU 3-P, ready for operation, with air regulator installed, W-2 solid carbide router bit installed, standard 45 degree center fence plate, center line locator and square stop, motor fine adjustment, parts storage, toolkit and manual.

Operation:

The keyway location is adjusted by positioning the guided center fence plate on the machine table;
the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting.

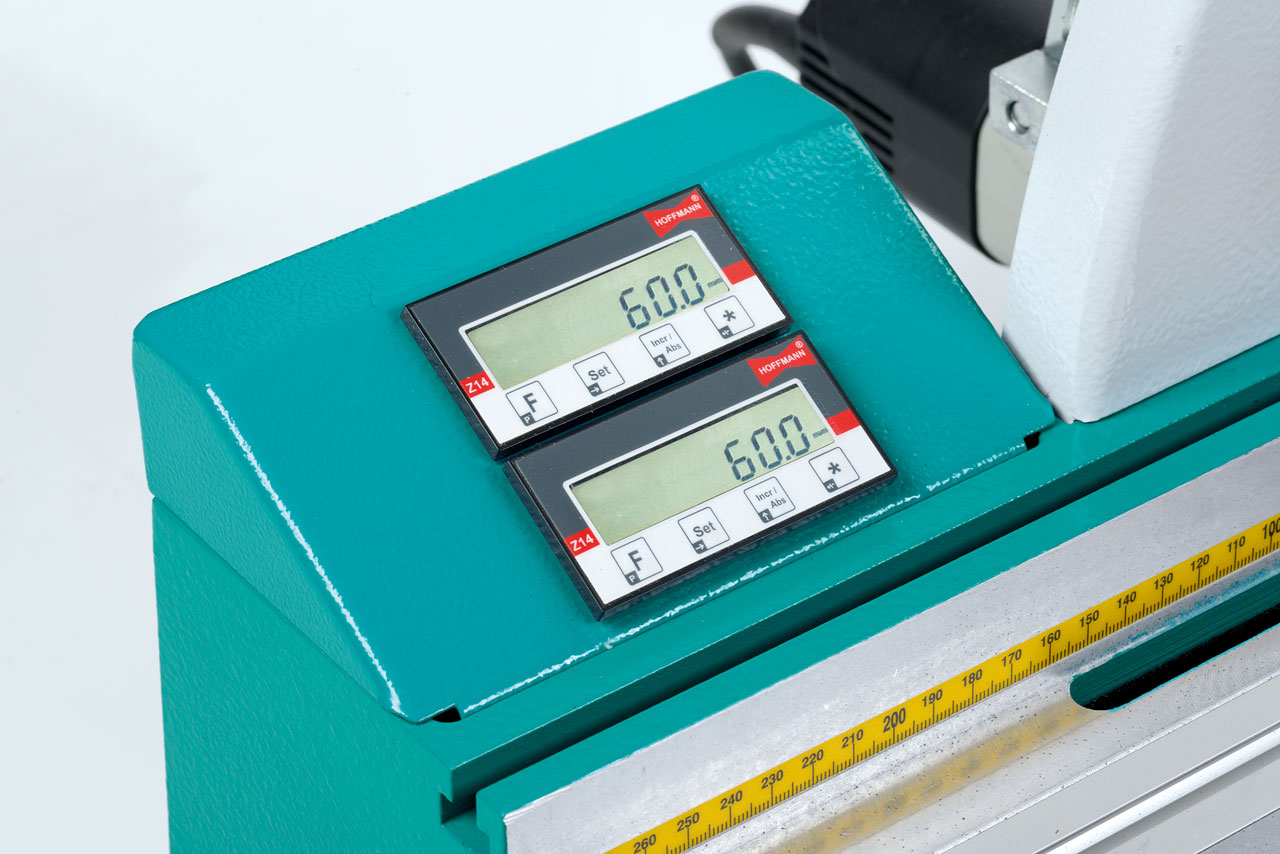

Both positions are shown on separate digital displays for accuracy and repeatability.

Standard Features:

Hoffmann Dovetail Routing Machine, model MU 3-D, ready for operation, W-2 solid carbide router bit installed, standard 45 degree center fence plate, center line locator and square stop, motor fine adjustment, dual digital displays for keyway location and routing height, covered parts storage, toolkit and manual.

Technical data:

- Power Supply: 120 volts – 7.4 Amps
- Motor: 885 Watt motor with double front bearing
- Motor speed: 35,000 rpm at idle
- Collet size: 1/4”
- Motor carriage guides: 20mm diameter guide rods, precision ground
- Digital Display: dual liquid crystal display, 3/8” digit size, accurate to 0.004”
- Operation: manual– dual action design
- Max. height routing: 3 3/8” – 85mm / moulding 5 1/8” – 130mm
- Dust collection port: 2” – 50mm diameter
- Installed router bit: W-2, solid carbide
- Available router bits: W-0, W-1, W-2, W-3 (W-4 with optional larger motor)
- Dimensions (W/D/H): 29 1/8” x 25 5/8” x 32 3/4” (without optional table extensions)
- Weight: 70.4 lbs.

Warranty:

One year on parts and workmanship. Complete Hoffmann Warranty Terms apply
