Picture Framing Equipment Lot: Brevetti Prisma Maxi Double Mitre Saw, Cassese CS4095 Ultra Frame Joiner, & Cassese CS299M Ultra Frame Joiner

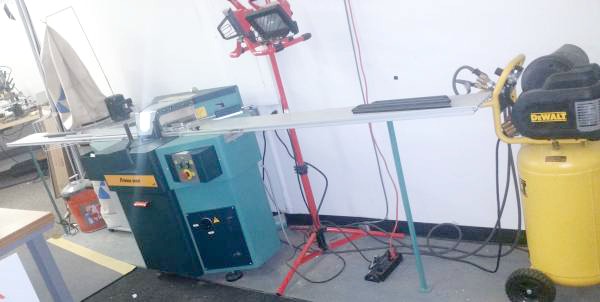

AGFS-81a Brevetti Prisma Maxi Double Mitre Saw $ 5,000 ***Price Reduced !!!

Includes: Air compressor, dust collector, and an extra set of blades

From the Seller: "Bought new in 2009 and used a short time; has been idle since."

Will cut 7" wide at perfect 45-degrees

***Manufacturer's Information:

Brevetti Prisma Maxi

The PRISMA MAXI is a slightly larger version of the PRISMA CE. It provides greater flexibility by accommodating larger moldings while offering the same precise quality cuts. It also utilizes design and technology to reduce vibrations felt by the operator through its unique horizontal cutting stroke.

Brevetti Prisma Maxi Features

- Functional, attractive double blade miter saw well suited to low to medium volume custom frame shop whose market demands larger moldings for its frames.
- Cuts molding up to 7" wide by 3 1/4" high. Right and left moulding support arms with attached measure marks.
- Sliding stop to facilitate multiple accurate, equal length cuts.
- Mechanical clamps to hold molding secure during cutting stroke to help maintain smooth and accurate cuts in the moulding and reduce waste.
- Includes two high quality 275 mm, 80 tooth blades from Tenryu, manufacturer of industrial saw blades for 100 years. (100 tooth blades optional).

Brevetti Prisma Maxi Specifications

- (2) 275mm (10-13/16″) saw blades/ bore 32mm(1-1/4″)/ 80 tooth (100 tooth available)
- (2) 1.5HP 220V/60Hz single phase motors
- (2) 52 1/2" molding support arms
- (2) mechanical hold down clamps for moulding
- 78 3/4" measuring scale
- Cuts molding up to 7" wide by 3 1/4" high
- Right sliding stop for repeatable cuts
- Blade Rotation speed 3200 RPM
- Dimensions: 48" (w) x 27 9/16" (d) x 44 1/16" (h)
- Weight: 363 lbs

AGFS-81b Cassese CS4095 Ultra Frame Joiner $ 5,000 ***Price Reduced !!!

This is a multi channel machine /programmable / automated machine. It will load up to 5 different size vnails at one time.

From the Seller: "Bought new in 2010 and used a short time; has been idle since."

Joiner - Underpinner - Vnailer

***Manufacturer's Information:

Cassese CS 4095 Ultra

(List Price $14,535)

Approx. Shipping Weight: 450 Lbs.

Approx. Shipping Dimensions: 48" L x 48" W x 55" H

Specifications:

Electrical: 115V/1PH

Uses: Cassese Wedges

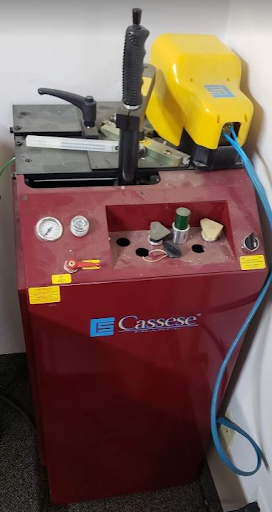

AGFS-81c Cassese CS299M Ultra Frame Joiner $ 2,500

Used by picture framers & artists to join picture frames

Manufactured: 2003

From the Seller: "In good working condition"

***Manufacturer's Information:

The new CS299M XL2 is designed to meet the needs of every framer looking for high quality joins and comfort of use, thanks to the adjustable fences and the new patented retractable Ultra clamps.

- Wide joining capacity (190mm stroke 7 1/2")
- Ultra powerful Double-action "Push and Tighten" rebate clamp
- New retractable Ultra clamp system retracts into the table leaving a flat surface Great for big frames!
- All air powered no electrical components to fail
- Patented adjustable fences
- Clamping of mouldings activated by foot pedal
- Wedge firing activated by push button
- Automatic position lock
- Built-in extension arms for large frames
- New magnetic XL adjustable top clamp
- No tools required to change wedge's sizes
- No pressure adjustment required
- Minimum service required

Technical Data:

- Mouldings Width: 1/4" – 6" (5mm – 150mm)
- Mouldings Height: 5/16" – 3 1/2" (7mm – 90mm)
- Minimum Frame Dimensions: 3 5/16" x 3 5/16" (85mm x 85mm)
- Stroke Length: 7 1/2" (190mm)
- Net Weight: 133 lbs (60 kg)
- Dimensions: L 490mm (19 1/4") W 450 mm (17 3/4") H 1100 mm (43 1/4")
- Power Supply: Compressed air at 100 lbs psi
