Picture Framing Equipment Lot: Vacuseal 4468H Press, Fletcher 3000 Cutter, Fletcher 2200 Cutter & AMS Air Compressor

UE-021421B-1 D&K Expression (Bienfang / Vacuseal) 4468H Dry Mount Press

(SOLD)

***From the Manufacturer:

The Expression line of vacuum presses from D&K offers guaranteed quality results every time for mounting, laminating, and texturing projects. Vacuum presses allow users to simultaneously process multiple pieces of artwork with varying sizes and thicknesses. The 4468H Vacuum Press is the preferred choice for framing professionals with user-friendly touch pad controls with six factory-installed programs for processing common applications. The 4468H Vacuum Press also includes an Expression cutting mat that allows you to use the top of the press as a working surface.

Features:

- Touch-pad controls.
- Easy to read digital display.
- Programmable system controller with six preset programs.
- End-of-cycle signal.
- Space-saving work surface.
- Maintenance-free vacuum pump.

Technical Specifications:

- Working Capacity: 44" x 68" x 1"
- Dimensions: 72.25" x 56.5" x 6.5"
- Net Weight: 205 lbs
- Shipping Weight: 720 lbs
- Power: 230V AC, 15 Amps
- Electrical Requirements: 4-wire, single phase NEMA L14-20 plug
- Pressure: 13 psi
- Floor Stand: Optional - 41 lbs

UE-021421B-2 Fletcher - Terry 3000 Multi Material Cutter

(SOLD)

Manufactured 10 / 14

***From the Manufacturer:

The 3000 is the ideal product to make short work of the critical task of preparing your materials for framing. With its simplistic design and user-friendly cutting head, you will see an immediate improvement in accuracy and productivity in the first day of use. Our versatile 3000 unit features a three position cutting turret for glass, acrylics and mat board sizing. Equipped with a patented score and break-out feature, the 3000 unit provides effortless and operator-safe cutting with every use.

Features a 3-position cutting turret containing a glass scoring wheel, scoring tip for scoring acrylic materials and a cutting blade for cardboard and foam board materials up to 1/4” (6mm). A ramping feature allows the lifting of scoring wheel on top edge of glass resulting in a cleaner edge break when scoring glass. Handles material sheets up to 60” high (1.52m). Mounts on wall or freestanding installation.

Unique Performance Features:

- 3-postion cutting turret for quick blade changes - Glass scoring, matboard cutting and acrylic scoring
- Patented glass cutting turret has a ramping feature that allows the lifting of turret device on top edge of glass resulting in a cleaner edge break.
- Wall mounted or free-standing

Substrate Cutting Capabilities:
- Glass Up to 1/4" (6mm)
- Mirror Up to 1/4" (6mm)
- Acrylics Up to 1/4" (6mm)
- Cardboard Up to 1/4" (6mm)
- Foamboard Up to 1/4" (6mm)

Tech Specs & Dimensions:
- Vertical Cutting Capacity: 60" (1.52m)
- Cutting Head: Rides on high tensile strength steel, hard chrome plated and polished, resulting in smoother gliding action for consistent cutting head performance and longevity.
- Vertical Bars: Rails do not bend or flex during the cutting process for straight, accurate cutting over the entire substrate height.
- Material Clamping System: Patented lever-type clamping system that secures in place substrate heights up to 60" (152cm) to prevent buckling and shifting of material during the cutting process.

Wall Mounting Specs:
- Height: 72" (183 cm)
- Width: 80" (203cm)
- Depth: 11.64" (30cm)
- Weight: 70 lbs / 32kg
- Cut Capacity: 60" (152cm)
- Needed Wall Space: 36.38 sq. ft. (3.38sqm)
- Shipping Weight: 80 lbs /36kg

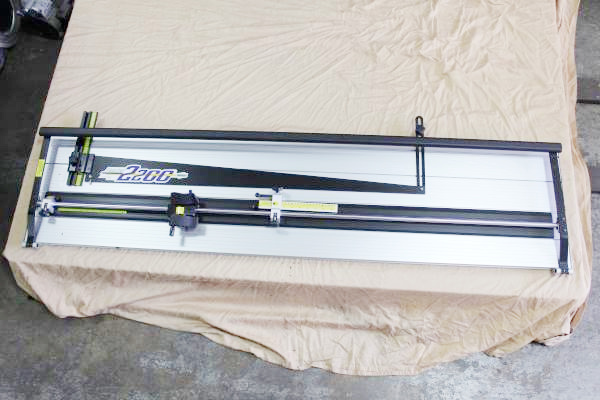

UE-021421B-3 Fletcher - Terry 2200 60" Mat Cutter

(SOLD)

Manufactured: 11 / 13
Size: 60"

***From the Manufacturer:

The Fletcher 2200 Mat Cutter is a professional level mat or mount board cutter for creating bevels and producing V-Grooves as decorative features and finishes in matboard up to 4-ply. Features a dual cutting feature for matboard specialty cutting or a 90° cutting feature for sizing matboard or cutting of foamboard up to 1/2" (13mm). Available machine sizes, 48" (1.2m) or 60" (1.5m).

Besides being used at many global custom frame shops, the 2200 is a great investment and business expansion tool for sign companies, photo studios, boutique shops, quick printers, and arts & crafts shops.

PERFORMANCE FEATURES & DIMENSIONS:

- Cuts 8-ply mat, gator, and form board
- Maximum Material Cutting Thickness: 1/2" (13mm)
- Three different blades are available: .012", .015" and 90 degree blade
- Sight Gage on the cutting head provides precise control of over/under cuts when using pencil lines on the back of the mat
- Cutting blades are held by removable magazines – permits quick, safe, interchangeability and cutting depth adjustments
- Ball bearings glide the cutting head along the hardened aluminum bar clamp for cutting ease
- Two large adjustable Delrin bushings fit the head firmly to the chrome plated steel shaft – eliminates right and left head movement and hooked cuts
- A pin locator system and mat gauge provides accurate and repeatable settings for mat borders
- Machine base is made from anodized aluminum and will not warp or flex during the cutting process

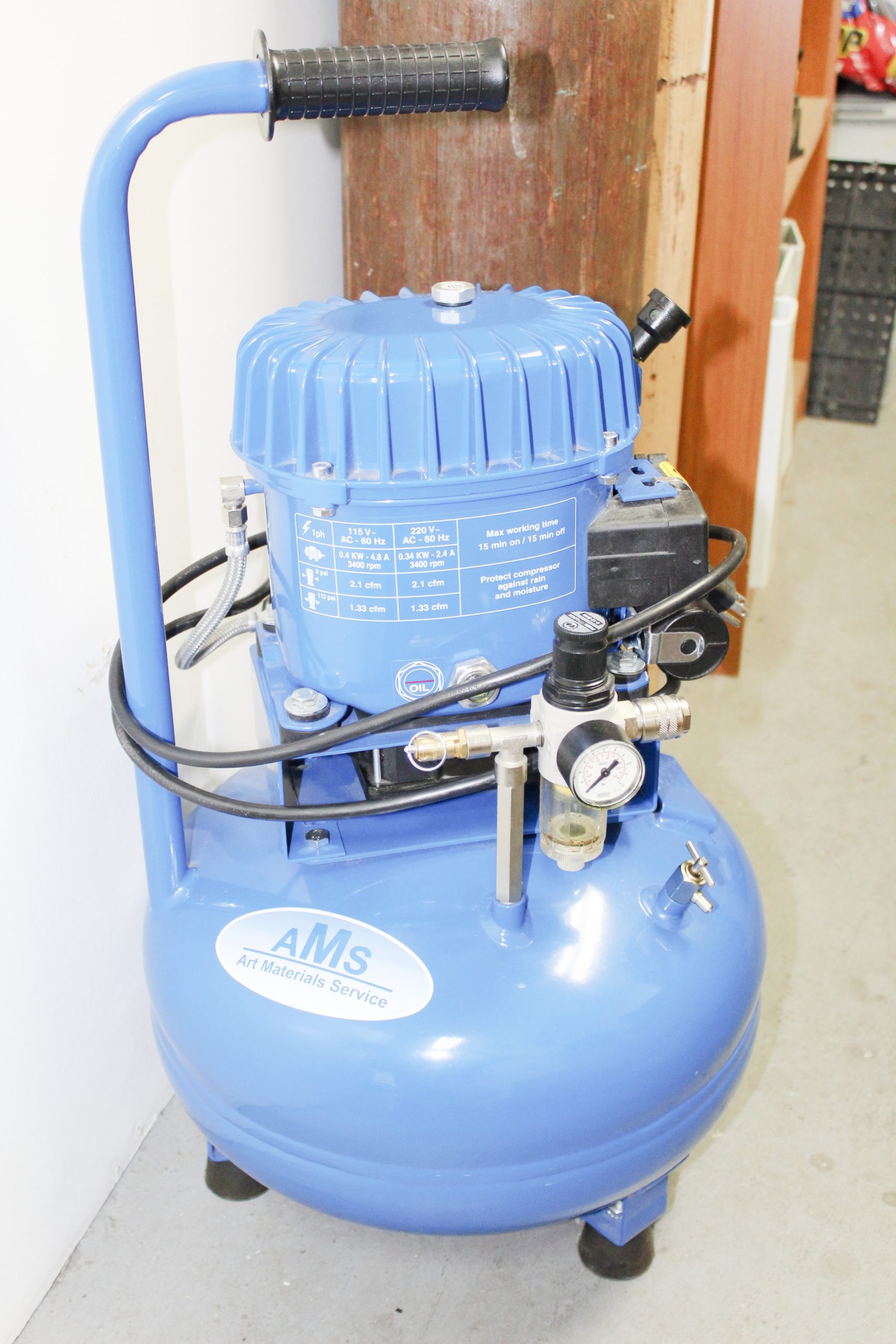

UE-021422B-4 AMS Air Compressor

(SOLD)

***From the Manufacturer:

AMS Air Compressors are well designed and built from high quality components. These compressors operate quietly and require little maintenance. Overheating damage is prevented with a thermal cut-out device. 1-year limited warranty is applicable to each purchase. All compressors are available in 120-volt and 220-volt. See other components and lubricants on following pages in this catalog. Please contact the AMS Customer Service Department for further advice.

AMS recommends changing both the coalescent (AMS #CM3C0985) and top intake (AMS #CM3C1794) filters every six months.

Each compressor is shipped with:
- USA-standard type #152 female coupler
- Tank and line pressure gauge
- Line pressure regulator
- Moisture trap/filter/gauge
- Safety valve
- Air intake filter
- Carrying handle
