RazorGage Positioning System & MORSO Face Frame Notching Machine

SKU: HM-102100
Manufacturer: Hoffmann

This system is ideal for operations that already have an accurate and reliable cut-off saw, preferably with an automated positioning system, for cutting cabinet stiles and rails to length. When precise cutting equipment is already in place, adding the RazorGage Positioning System and MORSO notching machine creates an efficient, streamlined solution for beaded face frame production.

Fast, Accurate Face Frame Production

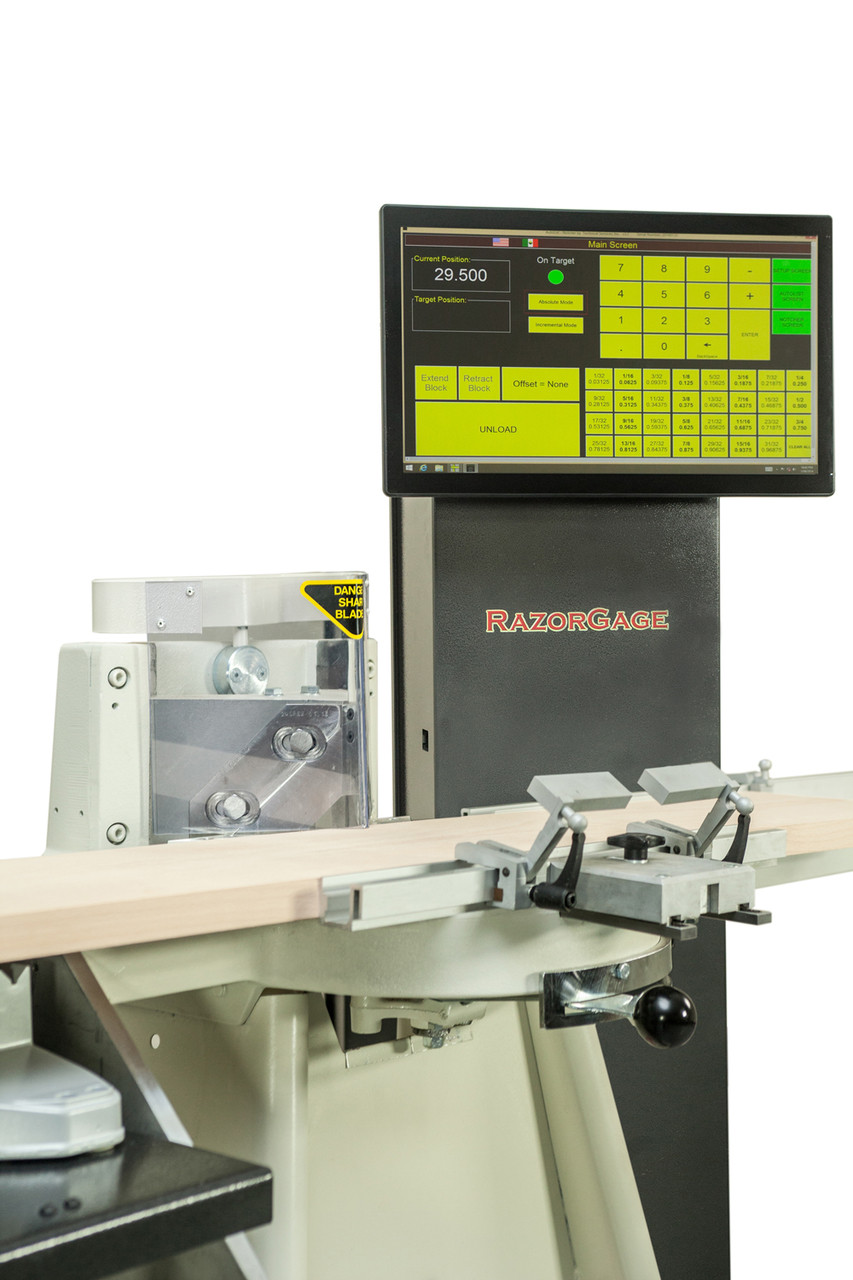

This precision positioning system features a comprehensive software package that gives operators the flexibility to create face frames directly on the large color touchscreen. Complete face-frame files can also be imported from compatible cabinet design programs using .RZG files.

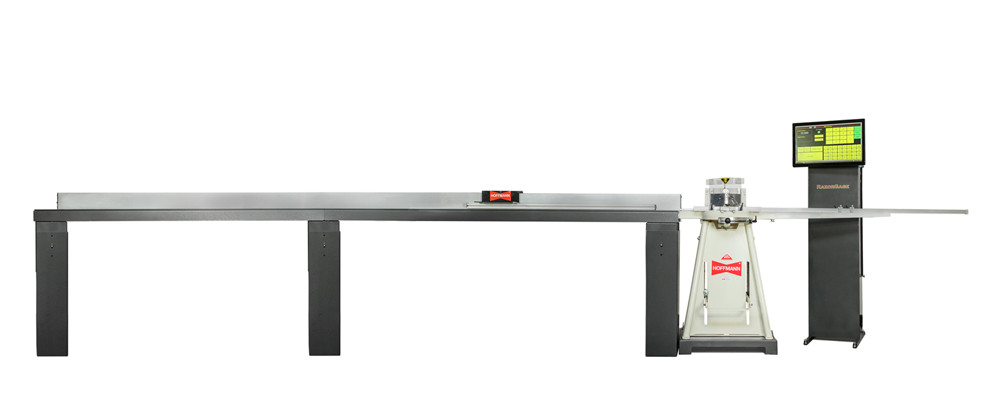

The RazorGage system and MORSO notching machine are connected using specially designed hardware and custom brackets, creating a sturdy, reliable, and fully integrated machining cell.

System Benefits:

Automatic positioning for fast, repeatable production
Designed specifically for beaded cabinet face frames
Precision positioning system manufactured to Hoffmann specifications
Large color touchscreen for easy face-frame design and operation
Ability to import .RZG files from compatible cabinet design software
Integrated RazorGage and MORSO equipment for a streamlined workflow
Custom brackets and hardware provide a sturdy, reliable setup
Ideal for operations with an existing accurate cut-off saw

This integrated solution helps streamline face-frame production while providing the accuracy and repeatability needed for professional cabinet manufacturing.

SKU	HM-102100	HM-102120	HM-102140	HM-102160
Model	RGNFXL 95-14	RGNFXL 119-14	RGNFXL 143-14	RGNFXL 167
Max. distance at nose knife	95”	119”	143”	167”
Overall system length (approx.)	177”	201”	225”	249”
Table length	10 ft.	12ft.	14ft.	16 ft.
Table support legs	2	3	3	3
MORSO machine (included)	NFXL	NFXL	NFXL	NFXL
MORSO nose knives (included)	3/4” & 1”	3/4” & 1”	3/4” & 1”	3/4” & 1”
Standard touch screen	15.5” diag.	15.5” diag.	15.5” diag.	15.5” diag.
Optional screen (w. tower stand)	21” diag.	21” diag.	21” diag.	21” diag.

GET PRICING

Features & Specifications

Software Features:
The included software gives operators the flexibility to design a face frame directly on the large touchscreen or import completed files through a USB connection.

Different stile and rail widths are displayed on screen for easy visual verification. There is no longer a need to match moulding sizes to nose knives, as is recommended with manual stop systems. When a new nose knife is installed, the operator simply enters its width into the software. The system then automatically calculates the correct notch positions and determines the number of steps required when a notch is wider than the installed nose knife.

This flexibility makes it easy to produce custom beaded face frames with varying stile and rail widths to match individual cabinet designs.

Operation

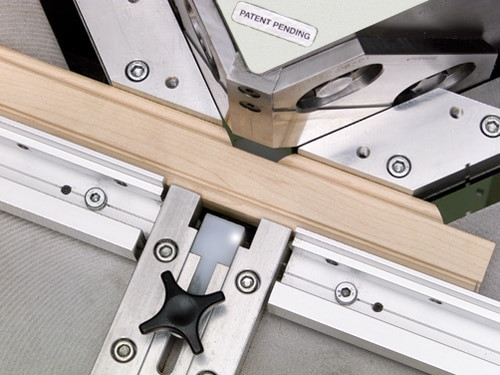

With all stiles and rails pre-cut using existing equipment, the operator uses the touchscreen to control cope cuts and notches along the moulding edges.

After completing each notch, the operator presses a button and the system automatically advances the material as needed for notches wider than the nose knife. This allows for fast, repeatable production of custom face frames with varying component widths, including:
- Wider top and bottom rails
- Wider cross members for refrigerator openings
- Smaller cross members between drawers
- Custom stile and rail widths to match individual cabinet designs

The system delivers accuracy of 4/1000" (0.1 mm), helping produce tight, clean joints for both stain-grade and paint-grade face frames.
