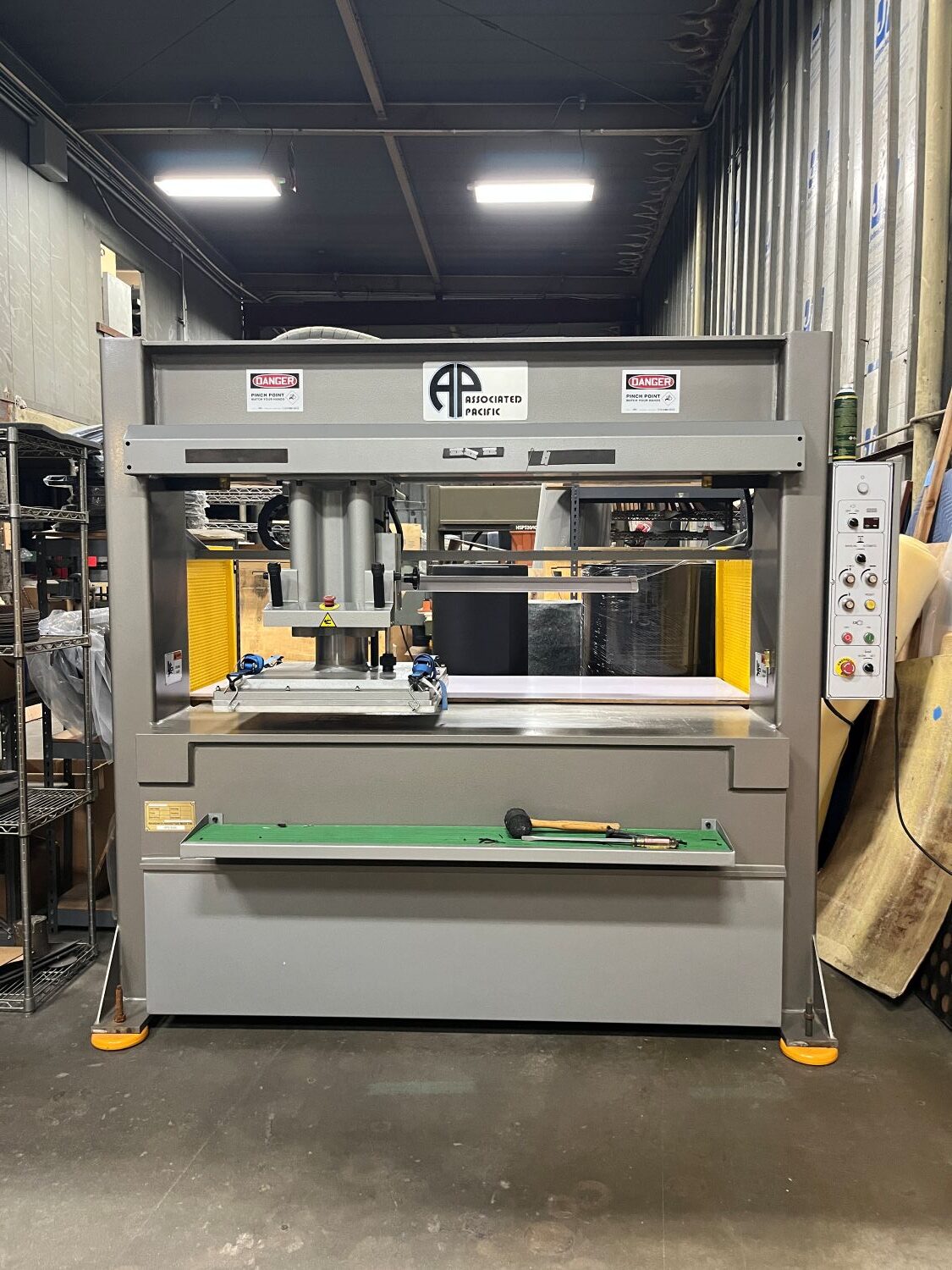

APMC Travelling Head 25 Ton Die Cutting Press

***Manufacturer's Information:

Travelling Head Die Cutting Presses (TH – 25 Tons)

A hydraulic traveling head press producing 25 metric (28 U.S.) tons of cutting force. This very quiet, high speed machine has a heavy-duty, single cylinder construction that provides for efficient cuts of single or multiple layers of material. The hydraulic up stroke and down stroke provide for an even cutting depth. It is especially designed for maximum material yield of small parts cut from wide materials. Die and material height is set quickly and easily making this machine operator friendly.

Features:

- Efficient cuts of single or multiple layers of material
- Uses a hydraulic-down and hydraulic-up system to provide an even cutting depth
- Wide bed, allows full width to be processed without the added expense of slitting to a smaller dimension
- Special cutting pad locking device can prevent cutting pad from warping

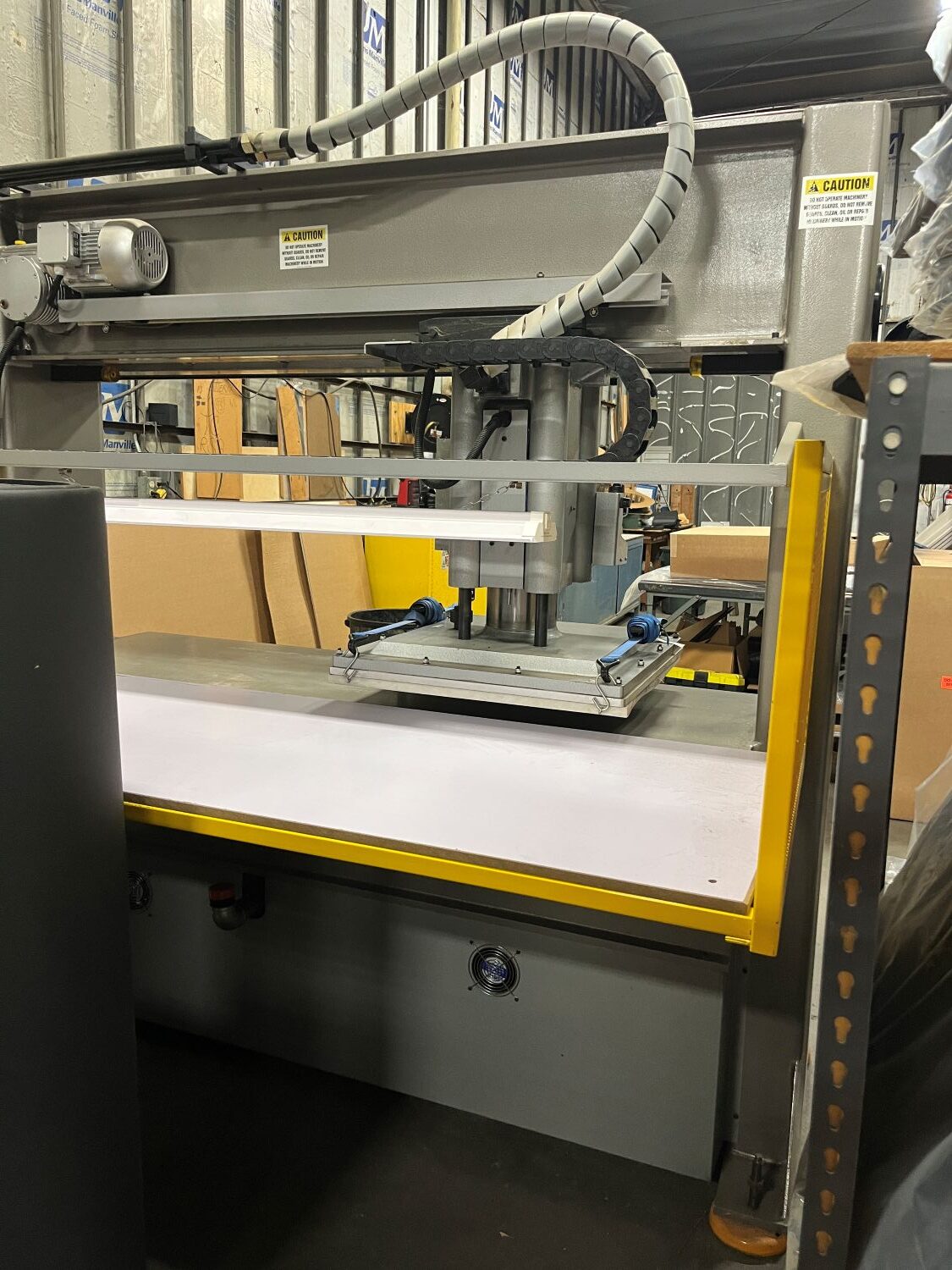

- Movable platen, allows the operator visibility to conveniently and accurately place the die onto material
- Two hand tripping action, ensures complete operator safety
- Automatic head down stroke speed reduction prior to actual cutting action to minimize any possible size difference between top most and bottom layers in multiply applications
- Die height and material height can be set quickly
- Excellent repeat accuracy of stroke ensures extended cutting pad life and clean accurate parts.

Specifications:

- Cutting Force: 28 Tons (25 Metric Tons)
- Cutting Head: 25.6” x 25.6” (650 x 650 mm)
- Cutting Stroke: 5.9” (150 mm)
- Maximum Daylight: 7.1” (180 mm) (without pad)
- Machine Bed: 25.6” D x 70.9” W (650 x 1800 mm)

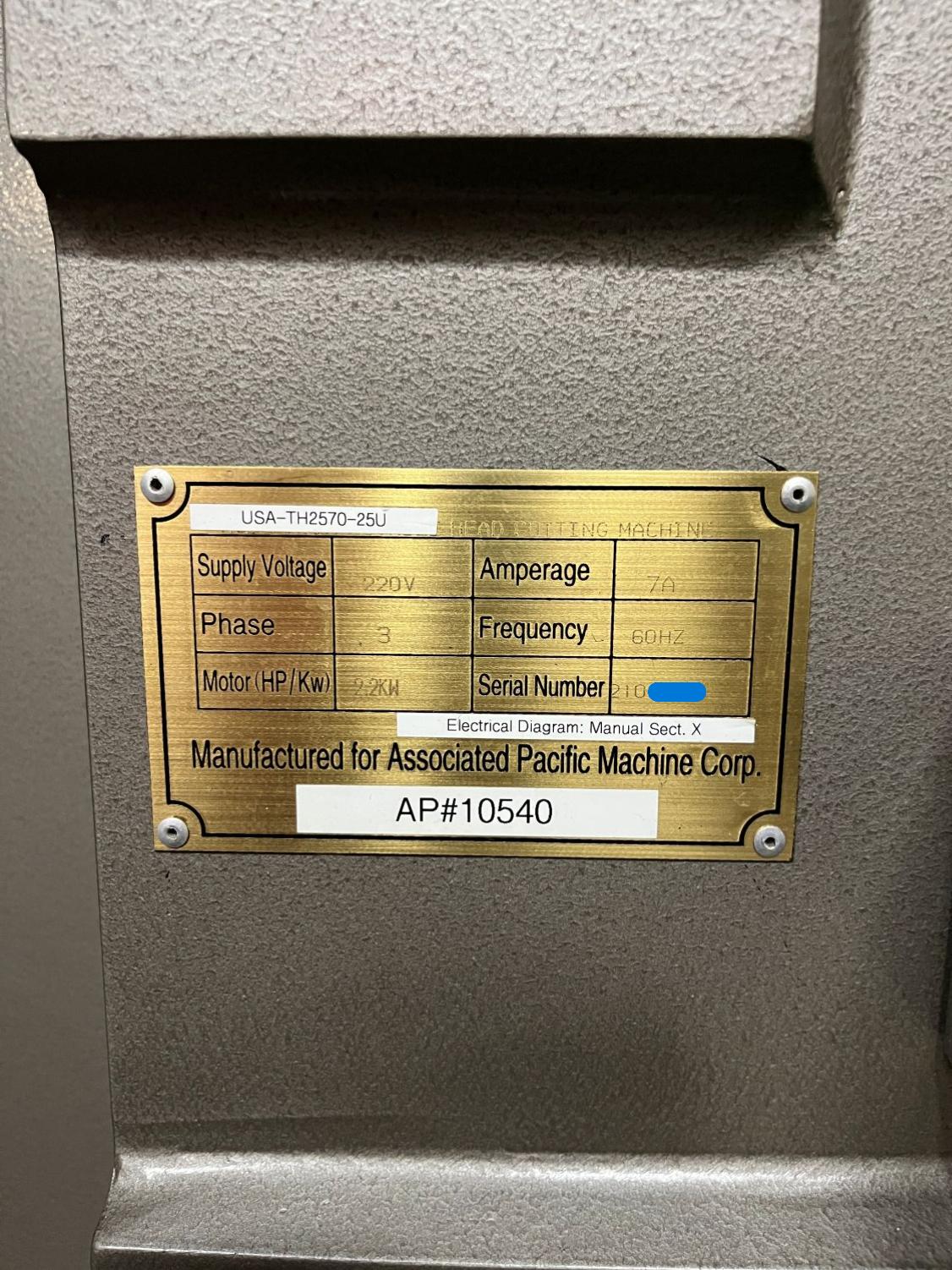

- Main Motor: 3 HP
- Gross Weight: 4,300 lbs. (1951kg)
- Series: TH - 25 Tons
