Used
Aslan DCY-550 22" Automatic Double Head Miter Saw
SKU: UE-100125C
Manufacturer: Aslan
Date listed: October 1, 2025

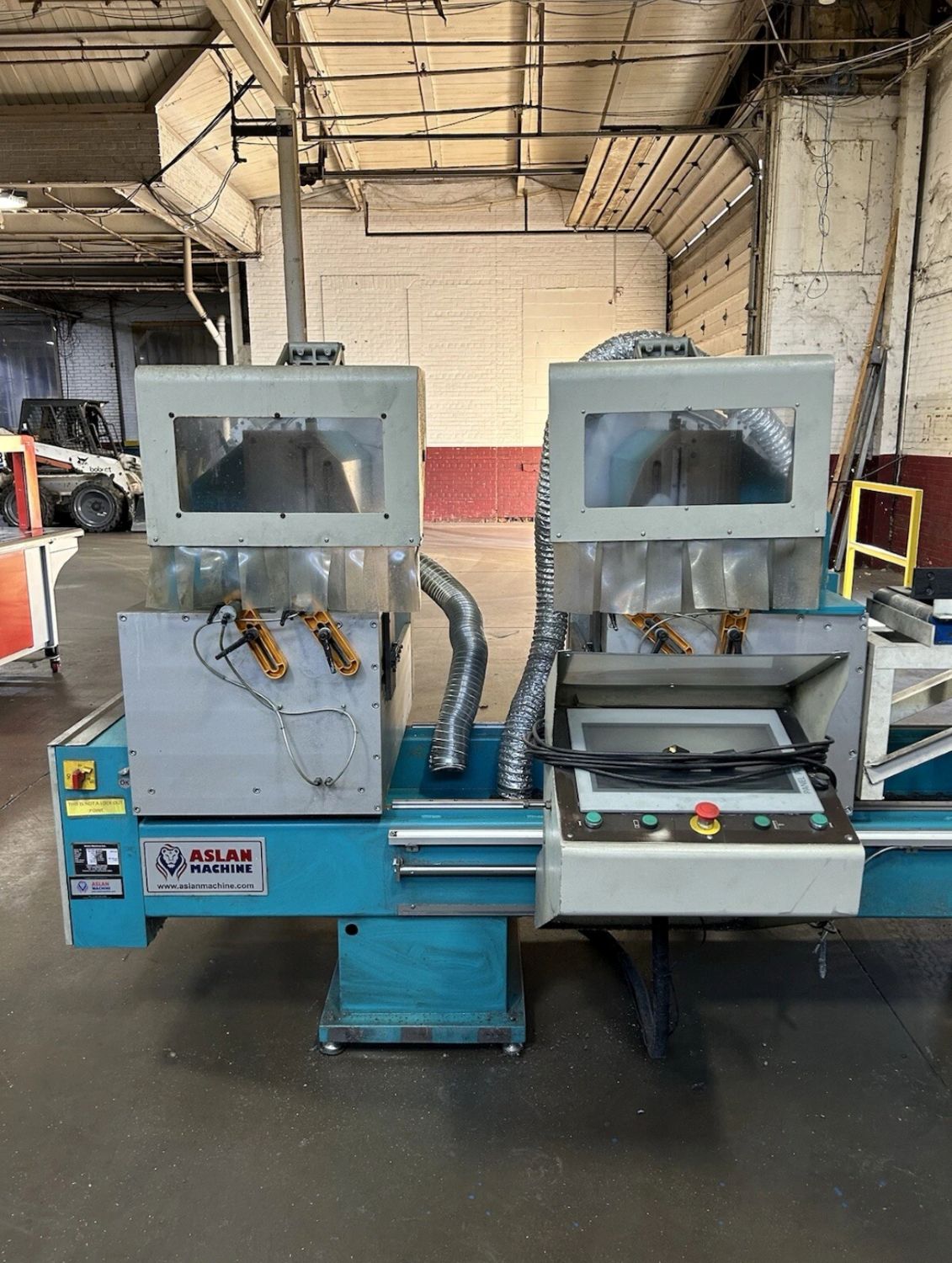

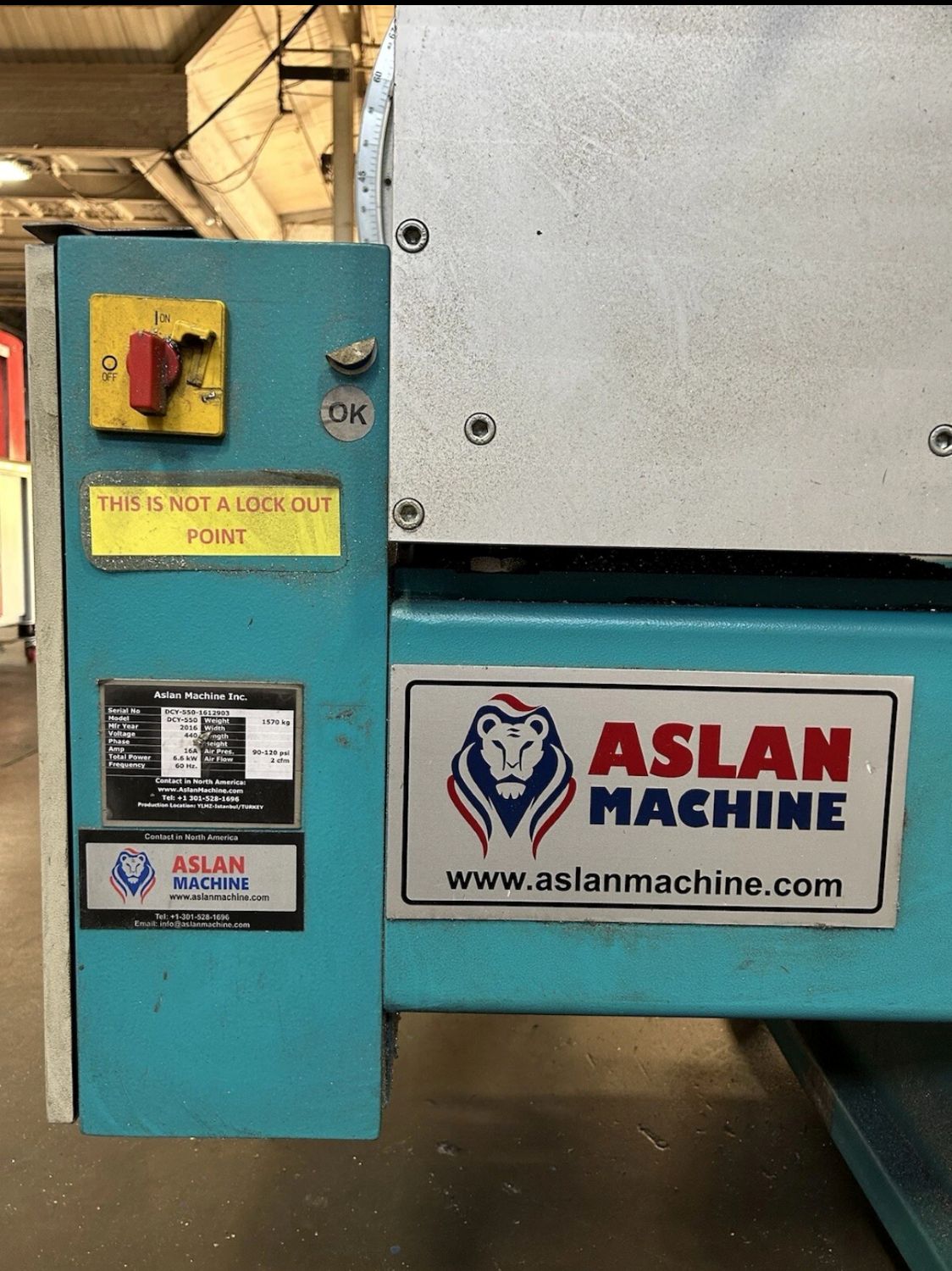

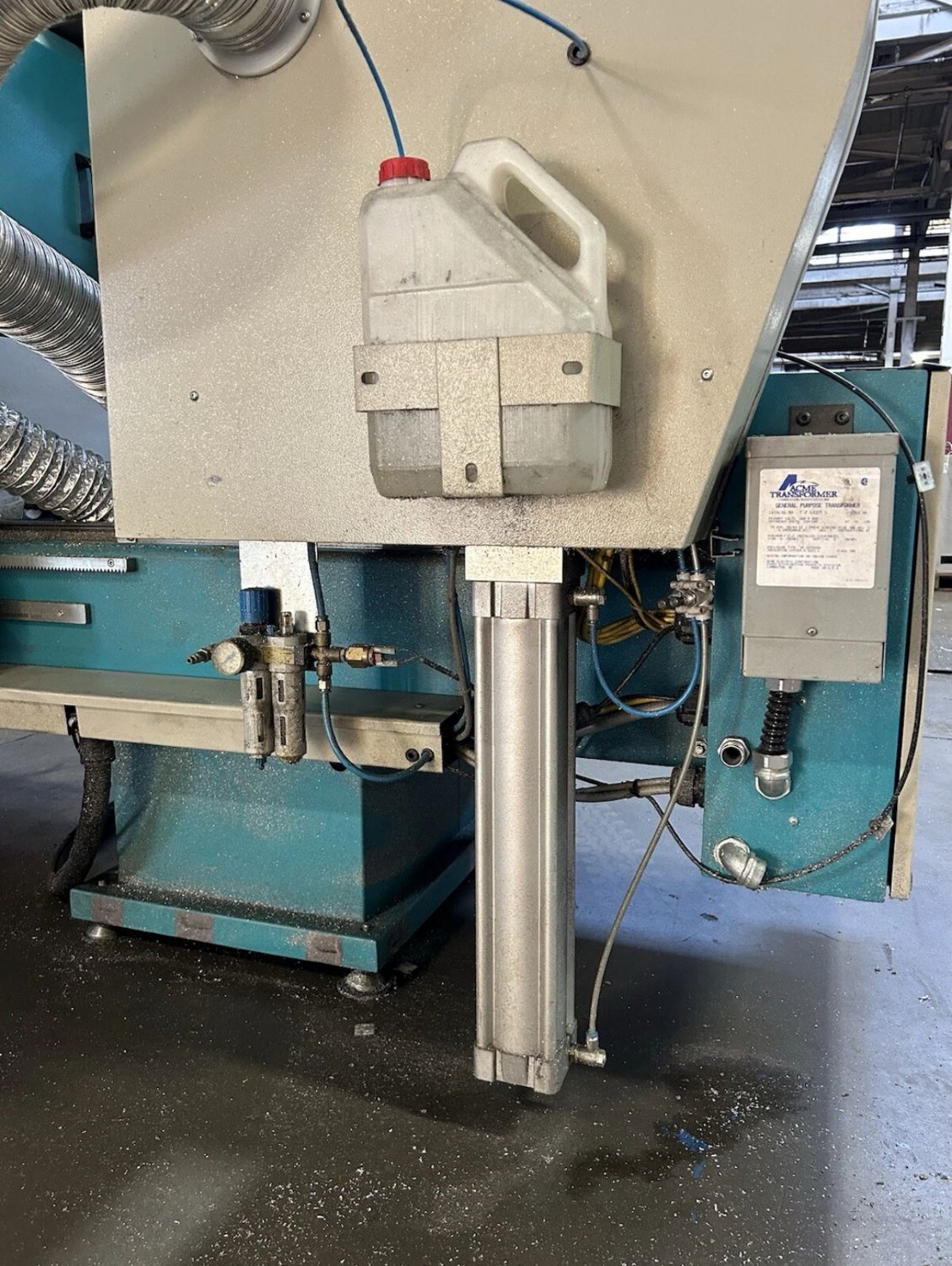

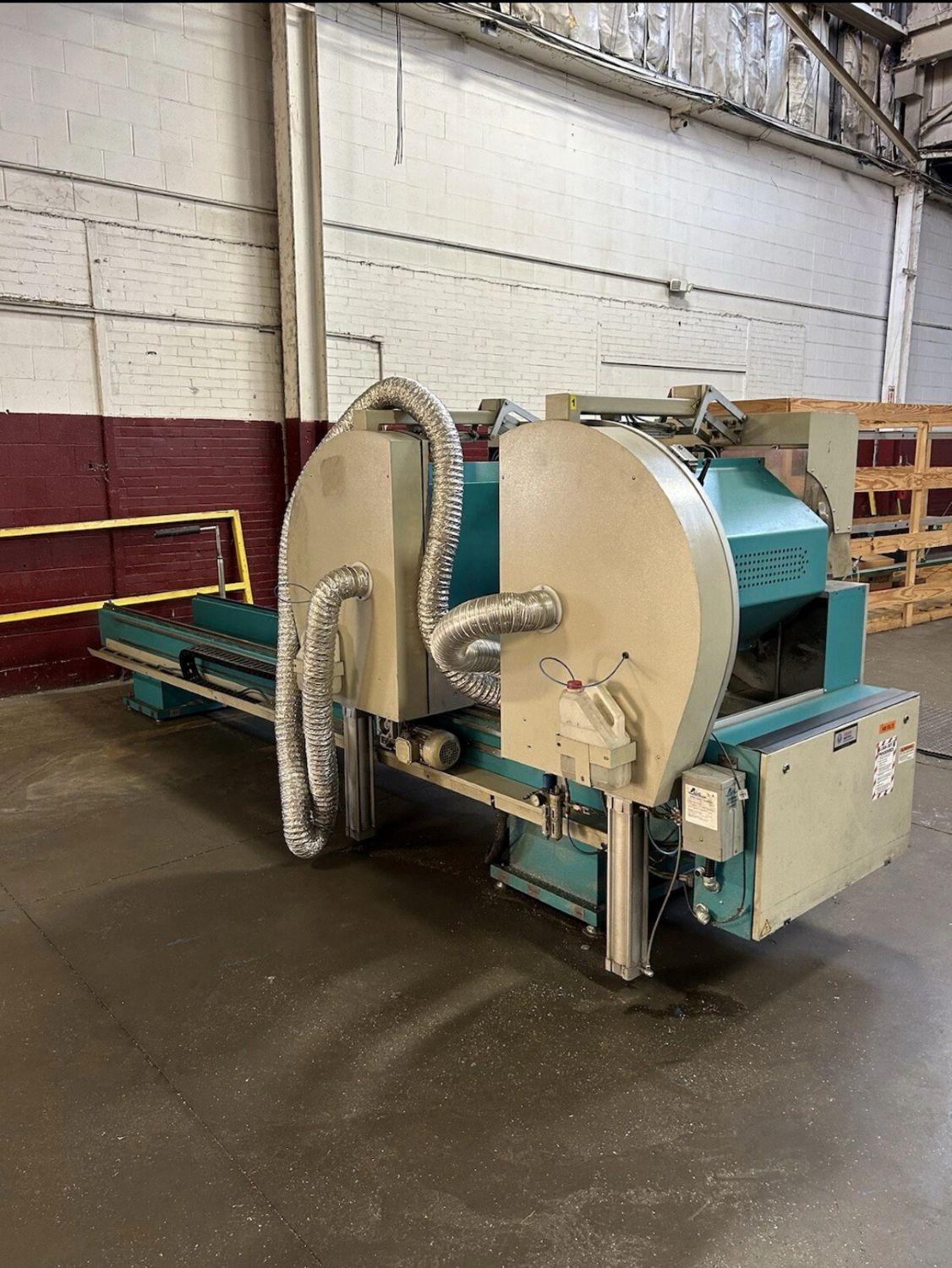

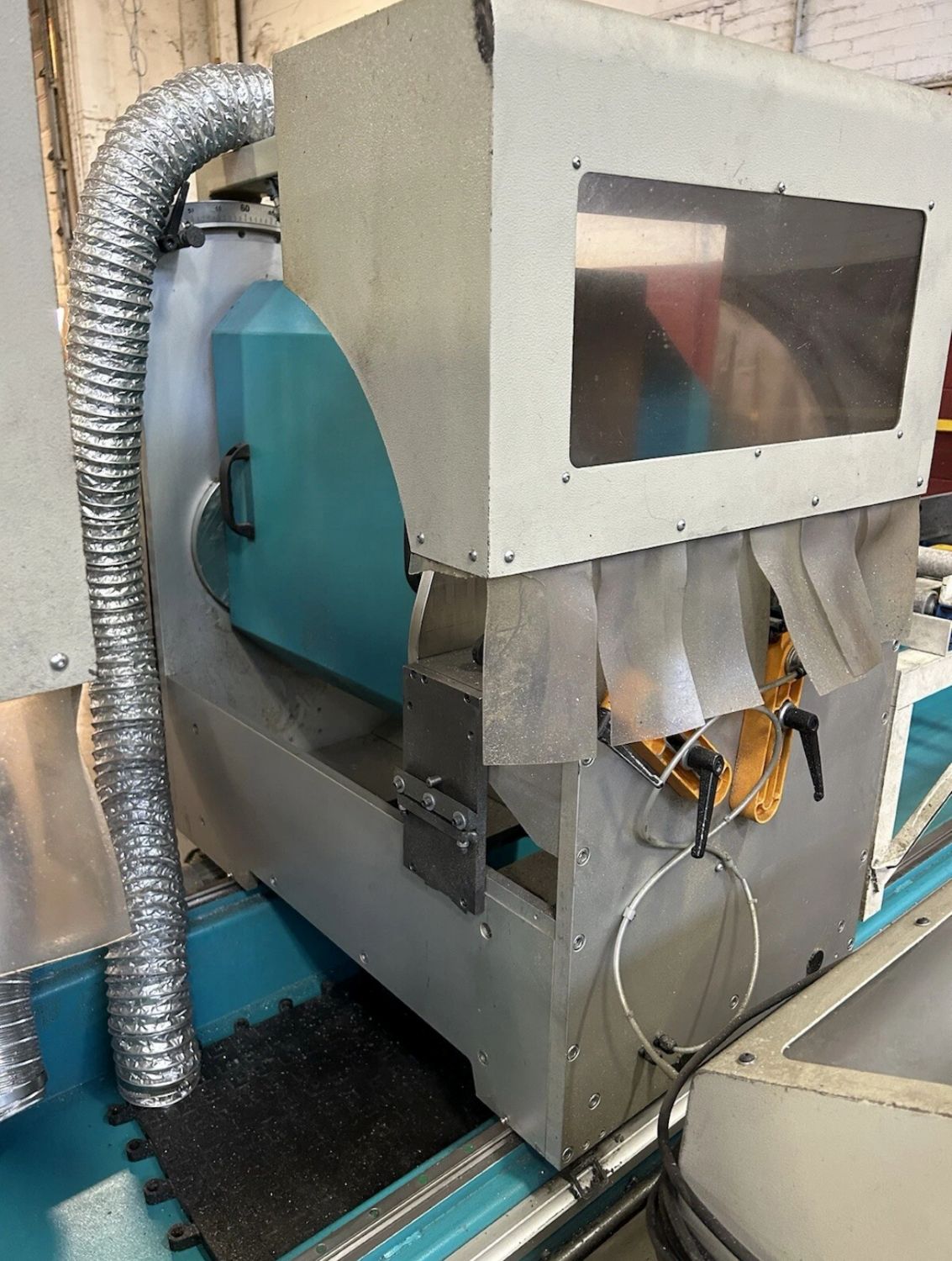

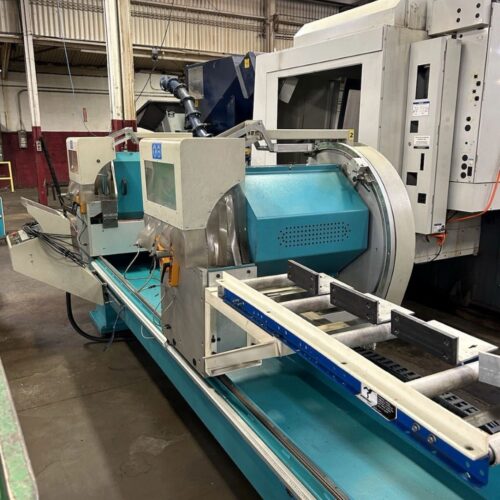

Aslan DCY-550 22" Automatic Double Head Miter Saw
- Year Manufactured: 2016
- Model Number: DCY-550
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes

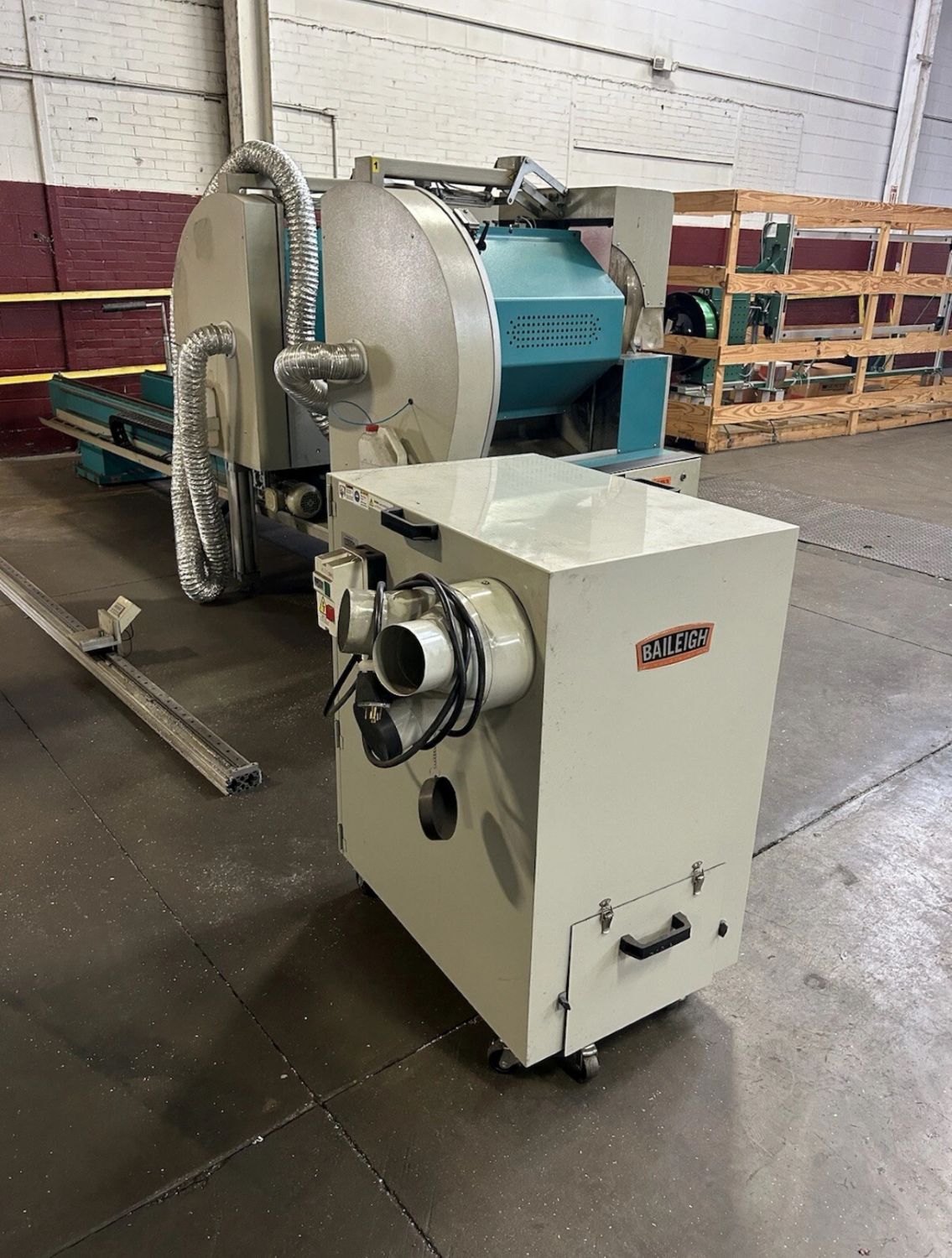

From the Seller: "Single owner. Used for cutting aluminum window frames. 15 hours per week for 18 months. Approximately 1100 hours. Clean and in good condition. Recently powered on for a video test. Includes dust collector."
About this Item
Features & Specifications
***Manufacturer's Information:
Features:
● For smooth, precise, fast and easy cutting of vinyl and aluminum profiles
● Automatic digital positioning and cut-list application for multiple cuts.
● Automatic wedge cutting / slicing feature.
● Saw blade movement is hydro-pneumatically controlled for smooth cutting of aluminum.
● Adjustable cutting speed.
● Automatic angle adjustments from 90° (straight cut) to 45° or vice versa.
● Can cut profiles at all other angles with manual setting.
● Cutting accuracy: +/- 0.2 mm
● The left head is fixed, the right head is moved manually for positioning.
● Easy and fast manual control of the right cutting head for required size.
● Pneumatic profile clamping system.

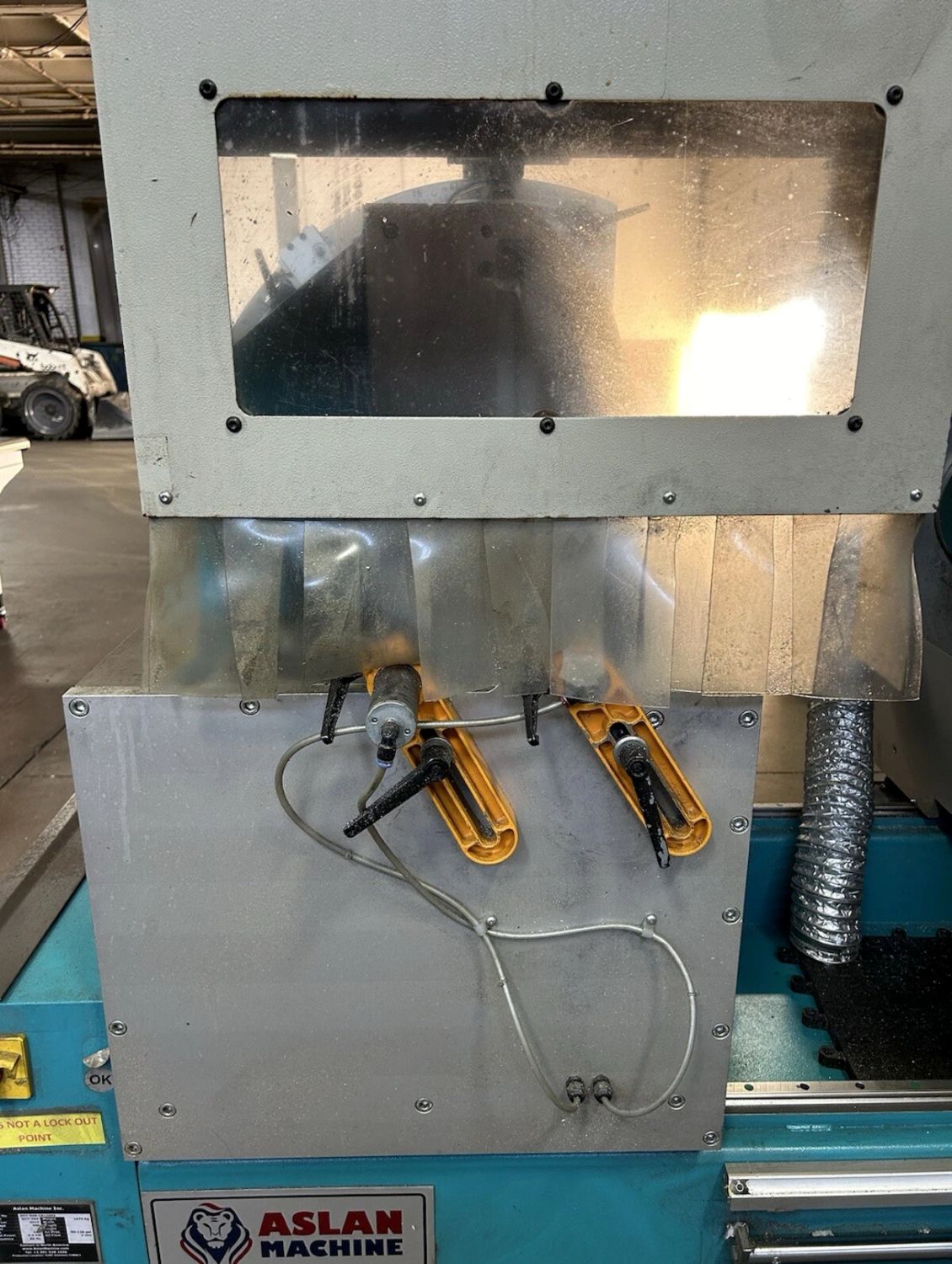

● Safety guards for saw blade protection.
● Double push-button cutting operation for operator safety.
● Standard vertical pneumatic profile clamping system
● Standard horizontal pneumatic profile clamping system
● Dust ports in the back
● Touch screen control panel
● Spray mist cooling system for the blade
● Strong motor
● Special alloy aluminum table, strong sheet body and durable electrostatic paint
Standard Equipment:
● Machine as described above.
● Safety & instruction manual.
● 1 set of saw blades installed on the machine.
● Spray mist lubrication system for cutting aluminum.
● 4 units of horizontal clamps.
● 2 units of vertical clamps.
● Conveyor and profile support.
● Air gun.
Specifications:
● Motor Power: 3 kw (4 hP) x 2
● Voltages: 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 3000 rpm
● Blade Size: 550 mm (22 inch)
● Bore Diameter: 30 mm / 32 mm
● Air Pressure: 90-120 psi (6 - 9 Bar)
● Weight: 1400 kg (3100 lb)
● Dimensions (WxLxH): 512x1240x187 cm (49x202x74 inch.)
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in Ohio. Customers can pick the machine up or have it shipped for an additional fee.
