Used
Bottero 353 BKM Automatic Glass Cutting Table / System
SKU: UE-102826F
Manufacturer: Bottero
Date listed: October 28, 2026

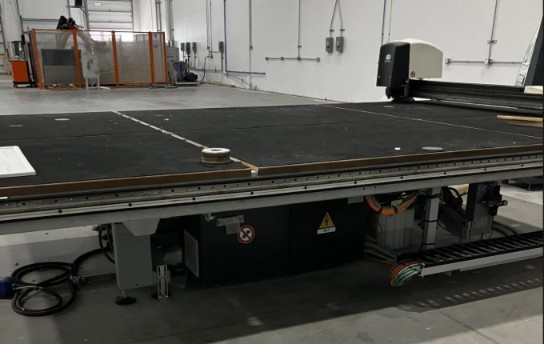

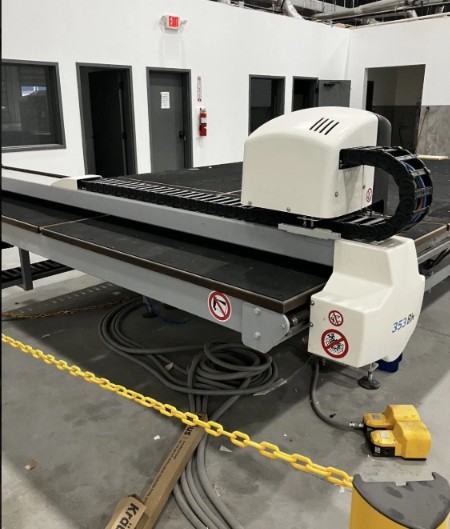

Bottero 353 BKM Automatic Glass Cutting Table / System
- Year Manufactured: 2022
- Model Number: 353 BKM
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "Bottero 353 BKM automatic glass cutting system designed for precision processing of large-format flat glass. The 353 BKM is part of Bottero’s automatic cutting table line and is commonly used for high-volume glass fabrication and production environments.
Dimensions 197x114
Main Table 197x115x124
Control Box 29x25x70
Bus Plug/Electrical Pallet 44x40x49"
About this Item
Features & Specifications
***Manufacturer's Information:
From the manufacturer and web:
Features & Specifications:
- Measured Table Size: Approximately 197" L x 114" W
- Maximum Processable Glass Size: Approximately 144" x 108"
- Metric Maximum Sheet Size: 3,650 x 2,750 mm
- Maximum Glass Thickness: 19 mm / approximately 3/4"
- Minimum Published Glass Thickness: 2 mm / approximately 5/64"
- Maximum Cutting Speed: 150 m/min / approximately 5,906 IPM
- Straight-Cut Accuracy: ±0.15 mm / approximately ±0.006"
Table / Material Handling
- Automatic glass cutting table
- Designed for monolithic flat glass
- Integrated air-cushion table
- Automated glass handling
- Automatic cutting-pressure management
- Programmable linear and shaped cutting
- Breakout capability
- Glass loading/positioning capability
- Heavy-duty welded industrial machine structure
Cutting System
- NC-controlled cutting head
- High-speed bridge and carriage movement
- Automatic cutting-pressure control
- Capable of straight and shaped glass cutting
- Integrated cutting lubrication system
- Precision bridge and carriage guide system
Control
- NC / computerized operator control
- Industrial operator interface
- Programmable cutting layouts
- Support for optimized glass cutting patterns
- CAD / shape-processing capability depending on installed software/options
- Electrical Supply: 400 VAC
- Phase: 3 Phase + PE
- Frequency: 50 / 60 Hz
- Installed Power, Regular Configuration: Approximately 10.25 kVA
- Compressed Air Operating Pressure: 7 bar / approximately 102 PSI
- Maximum Air Pressure: 10 bar / approximately 145 PSI
- Maximum Standard Air Consumption: Approximately 70 NL/min
- Working Surface Height: Approximately 930 mm ±40 mm / 36.6" ±1.6"
- Published Maximum Weight, Regular Configuration: Approximately 1,760 kg / 3,880 lb
Applications
- Suitable for processing monolithic flat glass used in:
- Architectural glass fabrication
- Commercial glazing
- Window and door manufacturing
- Interior glass
- Furniture glass
- Custom glass fabrication
- General flat-glass production
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
