Used

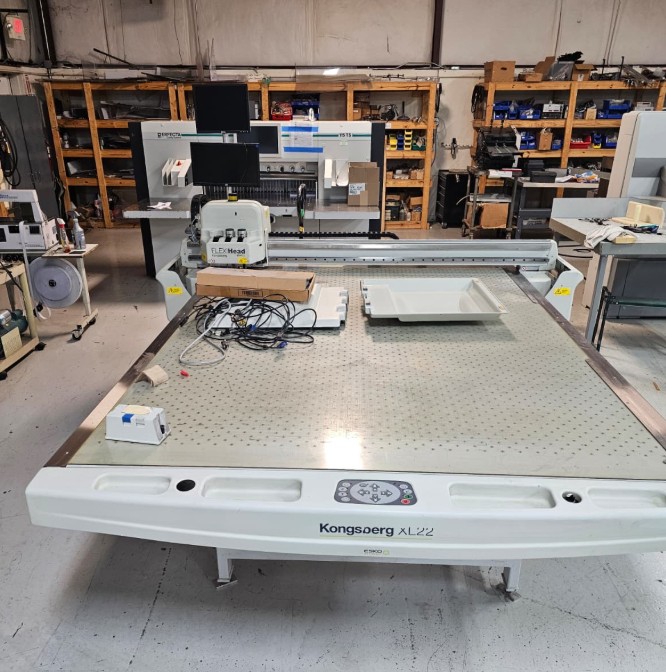

Esko Kongsberg XL22 Flatbed Digital Cutter / Cutting Table
SKU: UE-042326A
Manufacturer: Esko Kongsberg
Date listed: April 23, 2026
Esko Kongsberg XL22 Flatbed Digital Cutter / Cutting Table
- Year Manufactured: 2011
- Model Number: XL22
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "Kongsberg xl22
Manufactured: 2011
Includes:

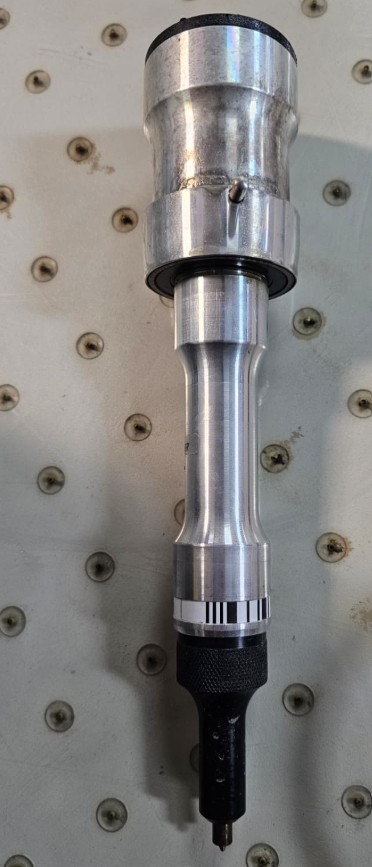

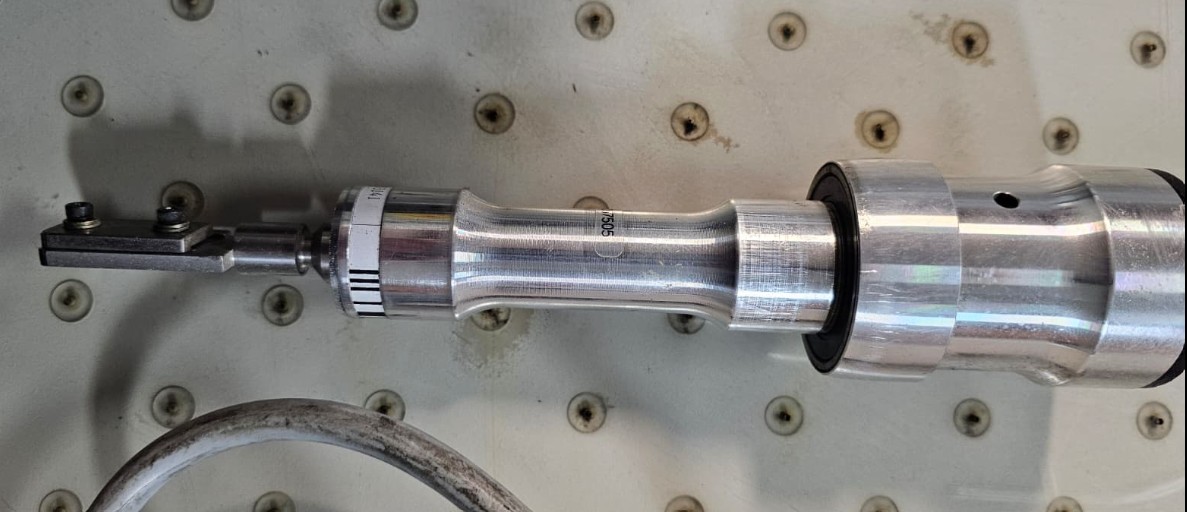

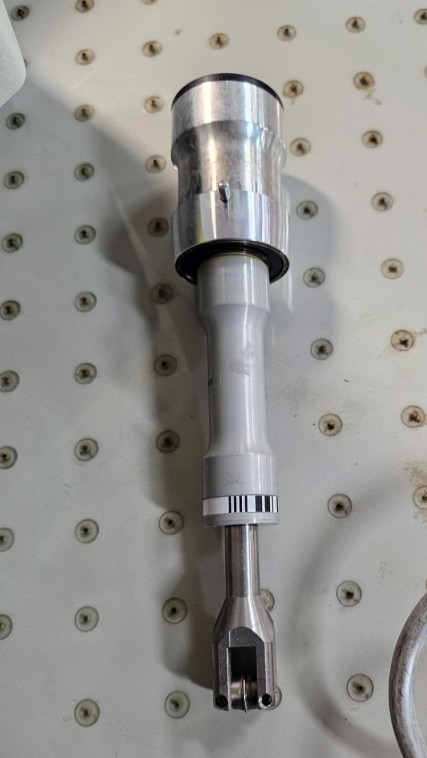

all tooling as shown in photos

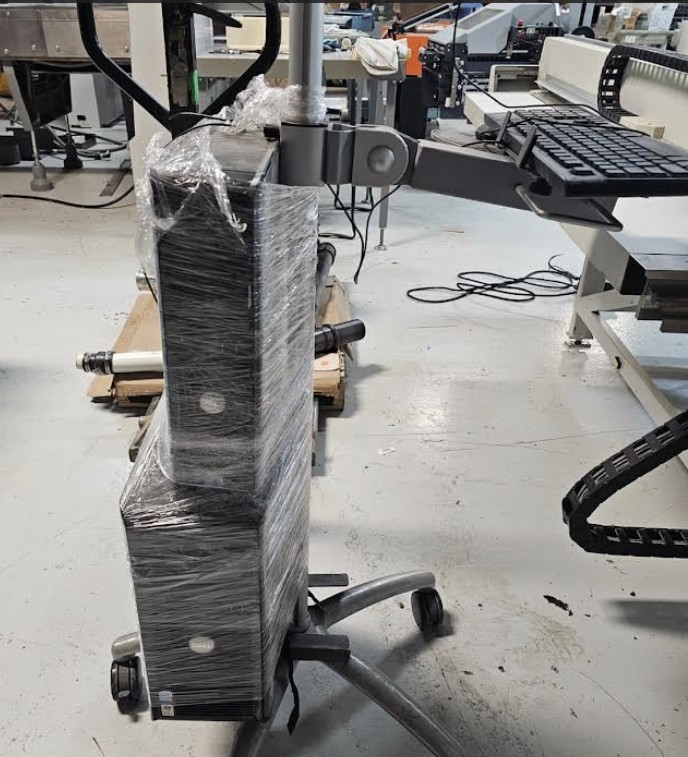

fiery station, PC, Dongle / software
no issues
Detailed and ready to ship
Commercial Location with Loading Dock"
From Kongsberg: regarding XL22
Work area 66" x 86"
Work area PowerHead (all 3 tools) 63.7" x 85"
Max Sheet Size: 69" x 102"
Overall Dimensions: 89 x113"
Weight 1,045 lbs"
About this Item
Features & Specifications
***Manufacturer's Information:
The Kongsberg XL22 (and its modern successor, the Kongsberg X22) is a versatile digital flatbed cutting table designed for short-run production and sample-making across the packaging, signage, and display industries. It is known for its modular design, allowing users to upgrade tool heads as their business needs evolve.
Specifications:
- Work Area: 1680 x 2190 (66 x 86)
- PowerHead (All 3 Tools): 1618 x 2190 (63.7 x 86)
- Max. Sheet Size: 1750 x 2580 (69 x 102)
- Overall Dimensions: 2250 x 2860 (89 x 113)
- Weight: 475kg (1045lbs)
- Position Accuracy: +/- .0078″
- Repeatability: +/- .0019″
- Maximum Speed: 50 m/min – 33 IPS
- Max. Acceleration: 5.6m/s – .56G
- Standard Material Clearance: 30mm – 1(3/16)
- Optional Material Clearance: 50mm – 2″ or 95mm – 3(1/4)
- Vertical Tool Force: Standard tool Stations: 220 N. Powerhead crease station: 500N
The Kongsberg XL22 is designed to process both flexible and rigid substrates:
- Packaging: Folding carton, corrugated board (including triple-wall), and solid board.
- Signage & Display: Vinyl (kiss-cutting), foam core, rigid board, and textiles.
- Specialty Materials: Wood, MDF, acrylic, aluminum composite materials (ACM), and rubber.
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in USA - Southeast. Customers can pick the machine up or have it shipped for an additional fee.
