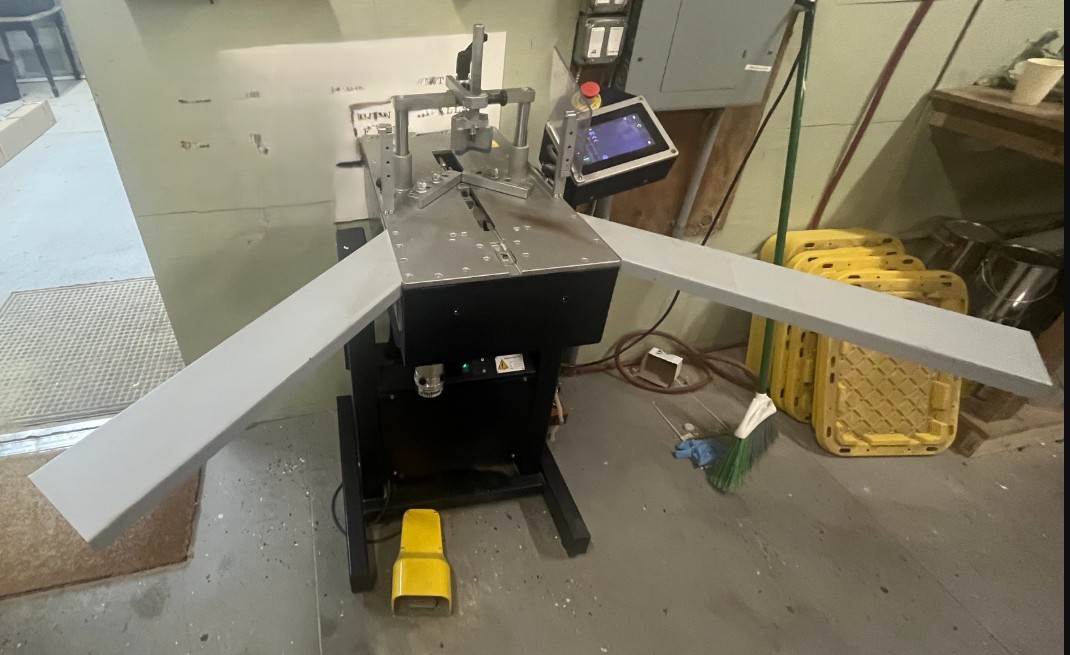

Fletcher AMP U-500 / U500 Single Channel - Single Level - Programmable Joiner

***Manufacturer's Information:

The U-500 is recommended for high-volume production facilities that require the primary use of a single sized V-Nail for frame joining. The U-500 has the same user-friendly, touch screen interface as our U-600 Underpinner. The only difference between the two models being the U-500 has single channel capacity compared to a multi-channel with the U-600 unit.

The U-500 has the capability of joining single level or multi-level frames depending on the joining requirement. The maximum stroke height for multi-level joining is 3/4".

With data storage of 5,000 different frame profiles, the operator can easily recall any frame profile alphabetically, numerically or by using the bar code reading option.

Handles frame joining requirements commonly found in picture framing, woodworking (Door Trim), canvas stretcher bar and mirror frame joining.

The U-500 has the capability of joining 45 and 90 degree angles.

Computerized Air Pressure System:

AMP's Computerized Air Pressure System (C.A.P.S.) is the latest operating feature for its U-600 Production Underpinner solutions offering the following benefits to any production based joining operation.

This new system provides the following production features:

- Eliminates the need of making manual air pressure adjustments for Vertical Clamping Mechanism
- Maximizes production efficiently with pre-set clamping pressures
- Eliminates moulding material damage by controlled vertical clamping pressure
- "Soft" vertical clamping option reducing the chance of moulding surface damage with very soft materials or surfaces with gesso or other delicate finishes
- To utilize this new feature, the operator stores in the air pressure values needed depending on the moulding hardness for each of the frame profiles stored in memory. By setting a pressure setting into the memory database, programs recalled through the key pad or barcode scanning option automatically sets the clamping air pressure needed.

All new equipment purchases for U-500 now include the C.A.P.S feature.

See also: Alphamacchine Alphamachine
