Used
Griggio Model GB 2/8 Single Sided Edge Bander
SKU: UE-091725F
Manufacturer: Griggio
Date listed: September 17, 2025

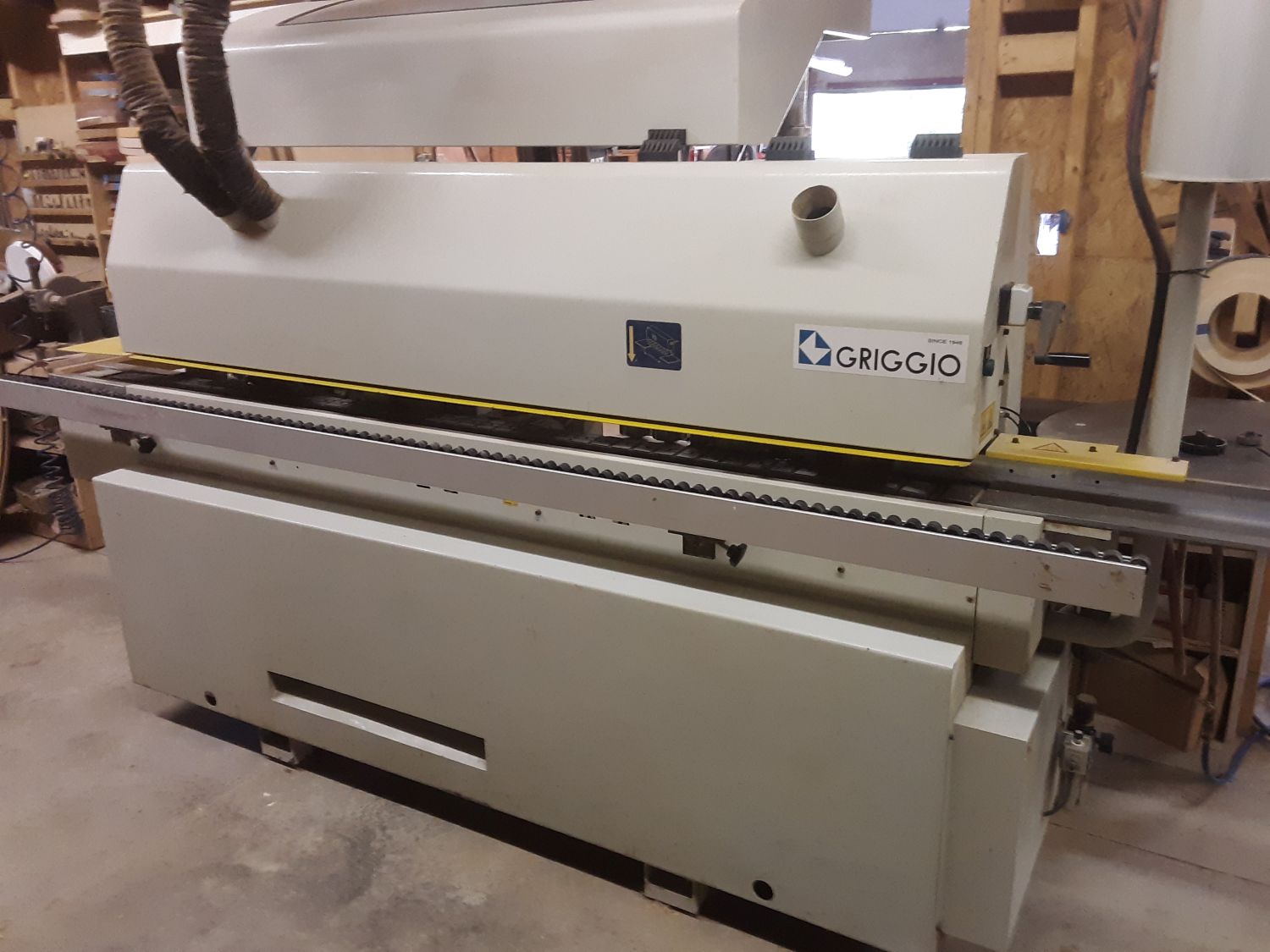

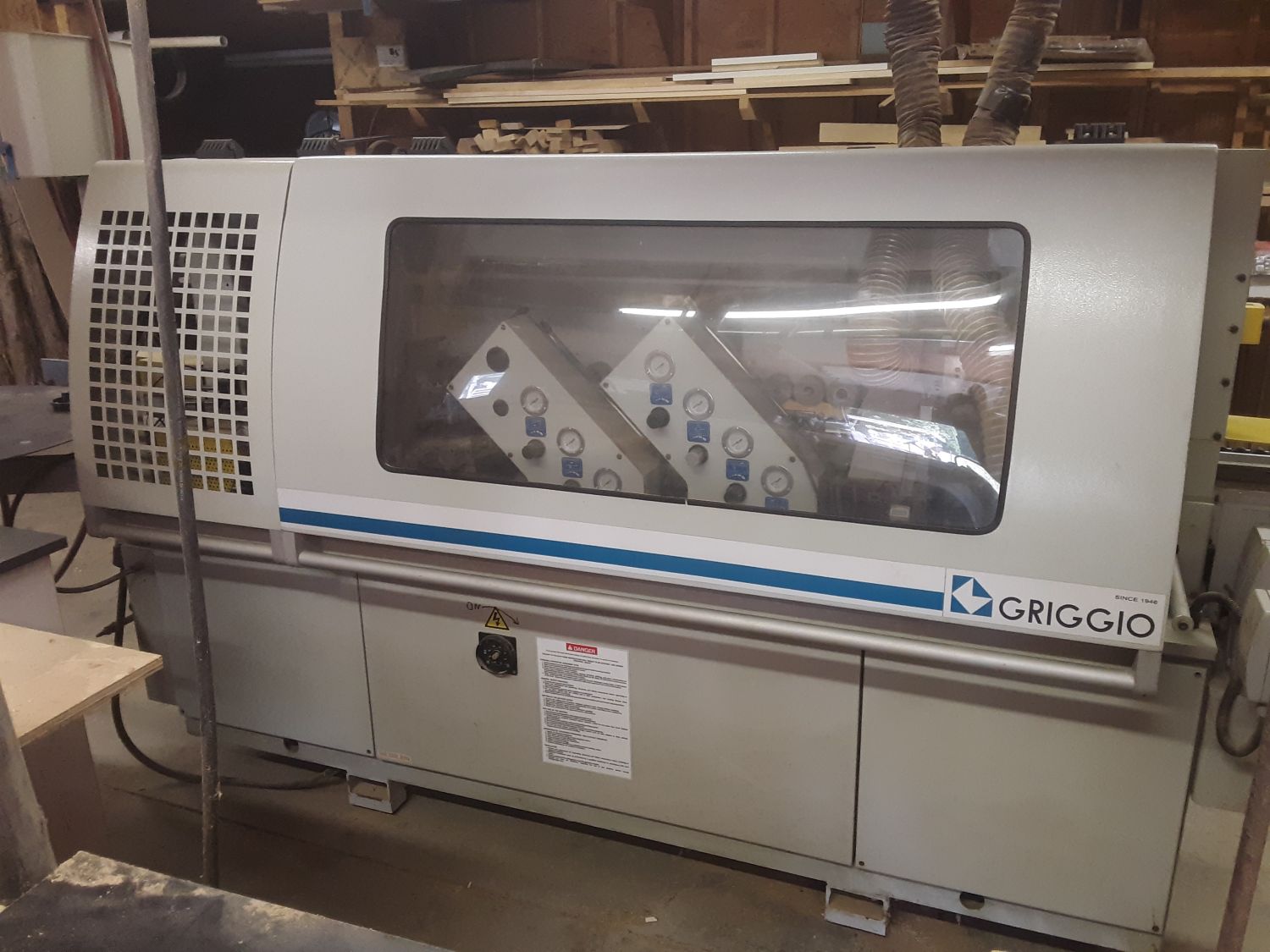

Griggio Model GB 2/8 Single Sided Edge Bander

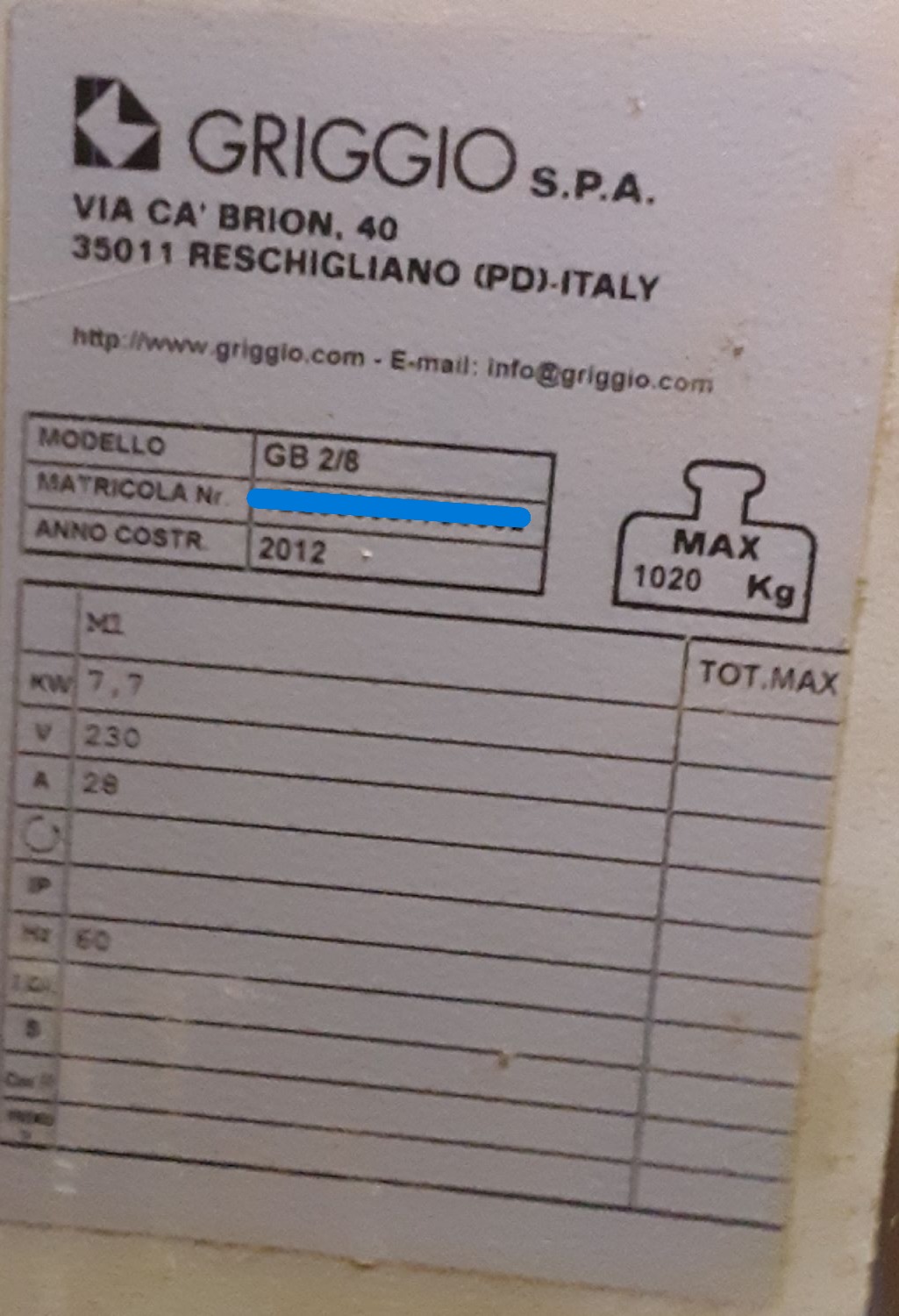

- Year Manufactured: 2012
- Model Number: GB 2/8
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "In good working order. Video available upon request. Can also do an onsite inspection. Retiring and no longer need."
About this Item
Features & Specifications
***Manufacturer's Information:
GRIGGO Model GB 2/8 Edge Bander
Automatic one-sided edgebanding machine GB 2/8 is designed for straight edges with the application of hot melt glue on the end of the workpiece.
Designed for applying PVC and ABC edges with a thickness of 0.4 to 3 mm, and a strip material up to 8 mm.
The machine is designed to work with the following edging materials:
- rolls: Melamine, PVC, ABS, 3D acrylic, duplicated veneer,
- strips: the edge of their solid wood, formica-type melamine, natural veneer in strips, etc.
Edgebander automatic machine GB 2/8 has two feed speeds of the workpiece 12 and 16 meters per minute, so the GB 2/8, GB 4/8 series can rightly be called high-performance.
The machine GB 2/8 is equipped with a glue station with a capacity of 4 liters. The edge clamping unit is reinforced and consists of one motorized roller with a teflon coating and three conventional rollers with independent pneumatic adjustment of the pressure of the clamp. In practice, 30% of the pressure in the pneumatic system is enough to provide a virtually invisible adhesive joint.
The bundling of the GB 2/8 edgebanding machine includes a device for automatic feeding of edging material in a roll and preliminary butt trimming with the help of a pneumogill, a working group for face finishing, a milling unit for removing overhangs on a face with adjustable angle of cutters.
The following components are installed on the GB 2 8 edge banding machine:
- Crosscut knot with 2 tilted motors
- Knot of removal of sves with 2 inclined motors and micrometric adjustment with electronic visualizer Siko.
Specifications:
- The minimum width of the workpiece 90 mm
- The minimum length of the workpiece 180 mm
- Maximum workpiece thickness 60 mm
- The minimum thickness of the workpiece 12 mm
- Strip edge thickness 0.4 - 8 mm
- Thickness of edging material in reels 0.4-3 mm
- 2 feed speeds of 12-16 m / min
- Volume of glue tank 4 liters
- Installed power 7 kW
- Air pressure 6 bar
- Tortsovochny knot with 2 inclined motors 0,5ls, 0,38 kW
- Knot of removal of sves with 2 inclined motors and micrometric adjustment with electronic visualizer 0.75 hp, 0.55 kW
- Net weight 1020 kg
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
