Used
Konica Minolta LS-506 Large Capacity Stacker
SKU: UE-090226A
Manufacturer: Konica Minolta
Date listed: September 2, 2026

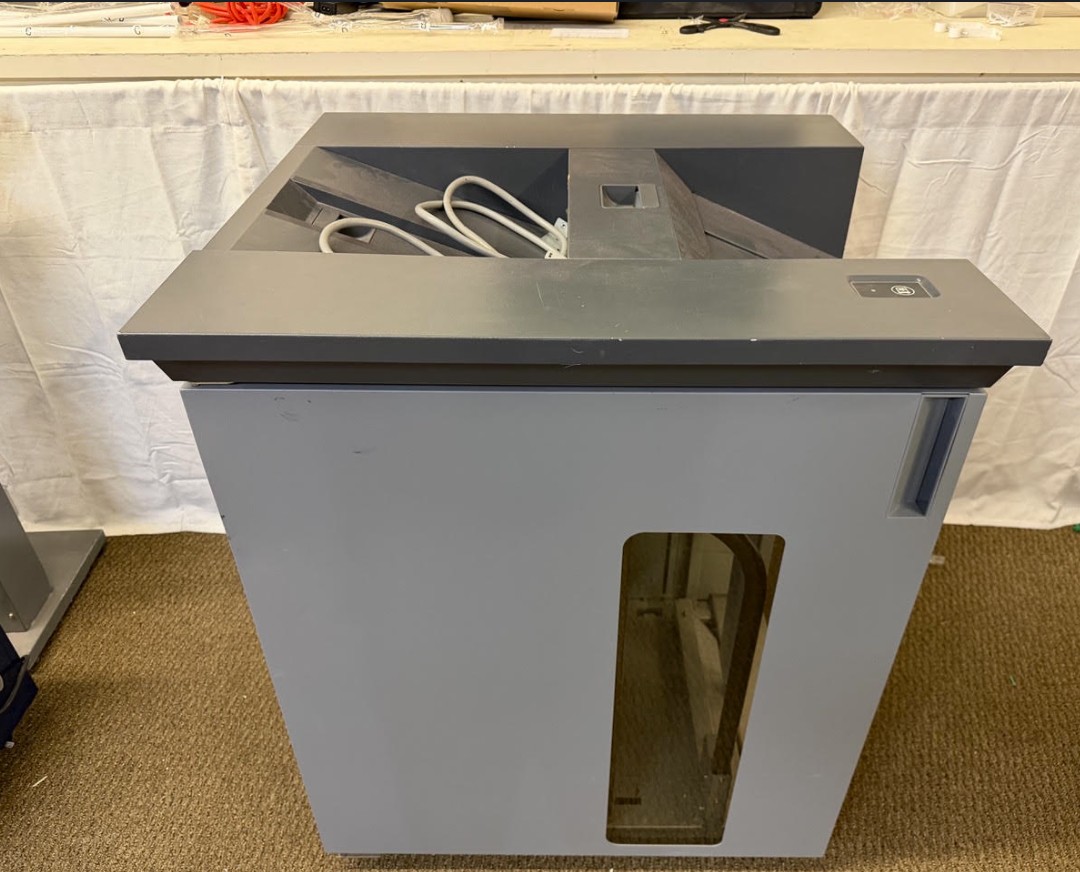

Konica Minolta LS-506 Large Capacity Stacker
- Year Manufactured: 2018
- Model Number: LS-506
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "In good working order."
About this Item
Features & Specifications
***Manufacturer's Information:
From the manufacturer and web:
The Konica Minolta LS-506 is a heavy-duty, production-grade Large Capacity Stacker designed to streamline high-volume printing operations. It maximizes efficiency by collecting up to 5,000 sheets of printed material directly from compatible production presses like the AccurioPress and bizhub PRESS series
Specifications:
The LS-506 uses a grip-conveyor horizontal stacking system to ensure precise alignment and neat paper delivery:
Main Stacker Capacity: Holds up to 5,000 sheets at maximum capacity. Note: Capacity drops to 2,000 sheets for specific smaller coated media such as B5, A5, or 148 mm to 194 mm widths.
Secondary (Sub) Tray: Positioned at the top to hold up to 200 sheets of non-offset or utility sets (such as straight delivery, Z-Fold, or Half-Fold tests) without interrupting the main stack.
Shift Processing: Performs a 20 mm (0.8") offset shift to cleanly separate sorted print sets for fast distribution.
Physical Dimensions: Measures 30.9" (W) x 28.46" (D) x 40.16" (H) and weighs 242.5 lbs (110 kg).Power Requirements: Operates on a standard AC 100 to 240 V line, pulling under 150 W.

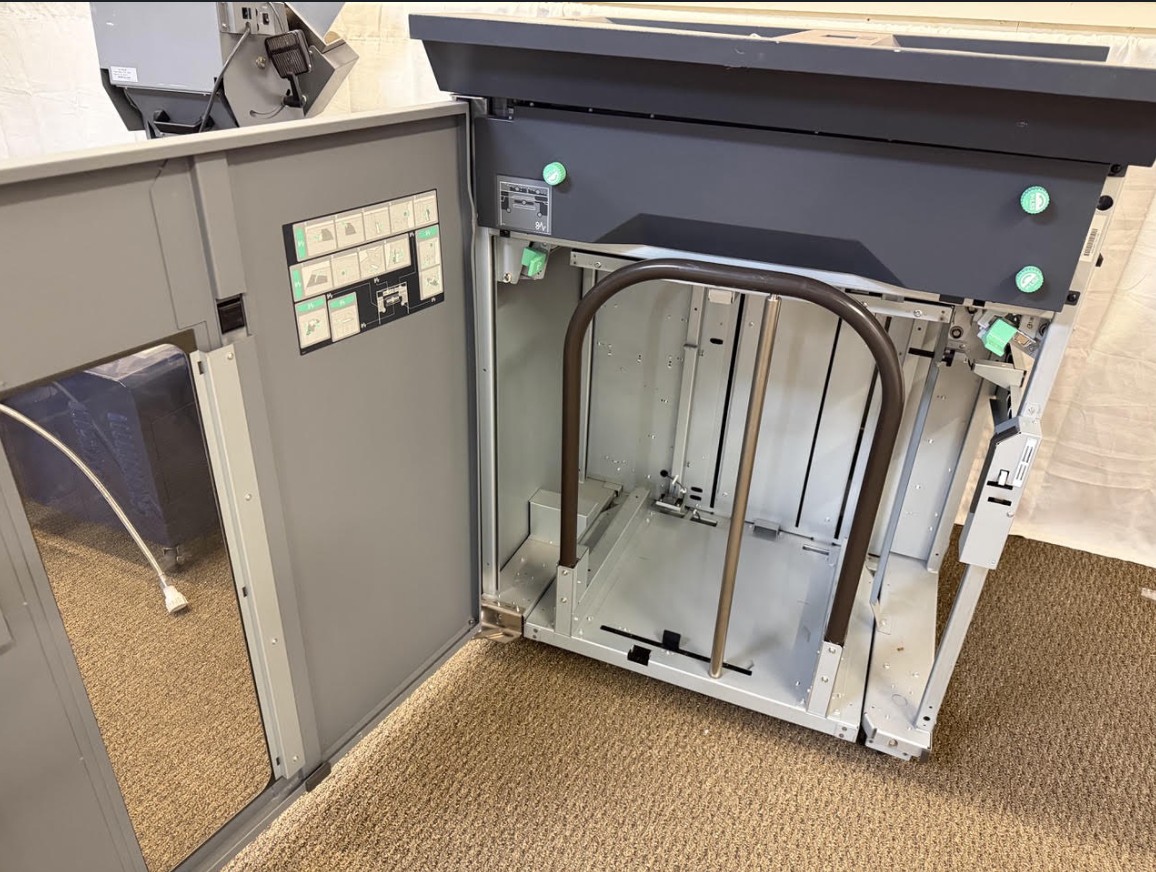

Roll-Away Removable Carriage: The stacker features a cart-style inner mechanism. Once a 5,000-sheet job finishes, operators can roll the entire stack directly out of the unit to the finishing station.
Dual Stacker Capability: Production environments can link two LS-506 units in tandem. This unlocks an "Auto-Switch" feature, instantly routing prints to the second unit when the first fills up, achieving non-stop print production.
---------
From web:
Accessory for:
AccurioPress C1100/C1085, C7hc, 1250/1250P/1052/2250P, C2070/C2060/C2070P, C6100/C6085, 6136/6120/6136P, C3080/C3080P/C3070/C3070P/C83hc/C73hc
Konica Minolta LS-506 was part of the AccurioPress C6100 system
