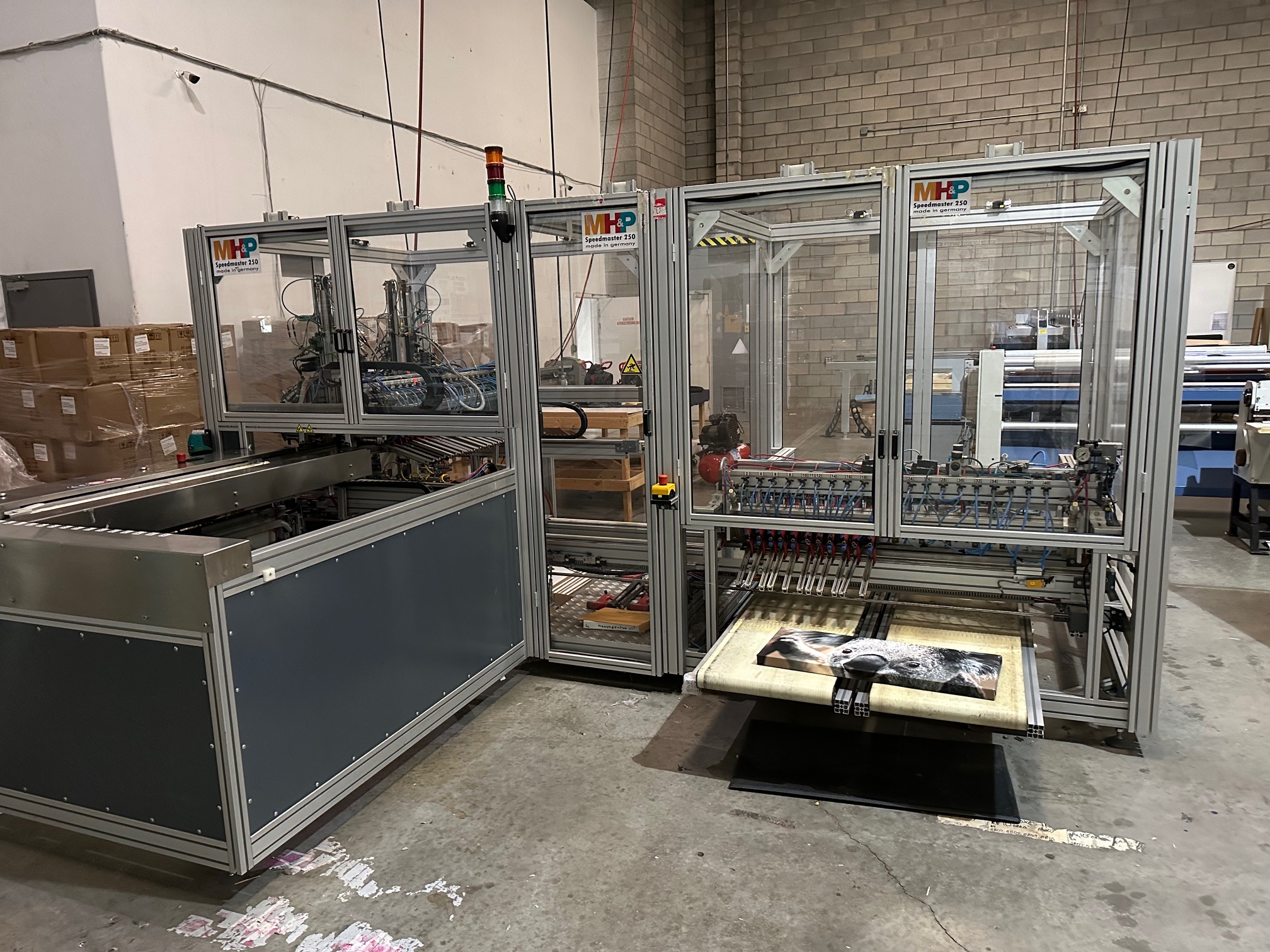

MH&P SpeedMaster 250 SM-250 Auto Canvas Stretching Machine

***Manufacturer's Information:

FULLY AUTOMATIC SOLUTION //
4 CANVASES/MIN.
Up to 270 canvases per hour
Conveyor belt (input and output)
Formats from 20 x 20 cm (8 x 8 inches) up to 160 x 160 cm (63 x 63 inches)
4-sided canvas stretching / 4-sided folding
Processes standard frames made of wood or MDF
Suitable for fabrics and laminated papers
Only one semi-skilled, non-technical operators required for production
Process combination with the MHP PLUG
Can be used as an integrated, process-controlled solution for upstream and downstream process
DESIGNED FOR LONG RUNS WITH A QUICK AND RELIABLE PROCESS
The MHP SP stretches, folds, and staples complete canvases automatically.

It is available as a stand-alone machine or optionally as an integrated, process controlled machine for up- and downstream workflow applications.

You can expect hourly production yields of about 120 units for large formats and up to 270 units for small formats, depending on the efficiency of the machine operator.

Only one semi-skilled, non-technical operator is required for production. Single format production runs up to 270 canvases are possible before staple reloading.

Standard stapling process is for gallery wrap. The automated 4-corner-folding module and an output conveyor belt are included. A square-fold-module and other special features are also available.

FULLY AUTOMATIC AND FULLY INTEGRATED INTO EXISTING WORKFLOW
Customization options:
Additional, integrated and synchronized conveyor belts (input and output)
Customized stretcher bar heights
Synchronization interface

Processed materials:
Raw and primed textile having a weight of 160–420 g/m²
Pre-printed textiles and paper weights of 160–420 g/m²
Laminated paper of 180 g/m²
Different stretcher bar heights

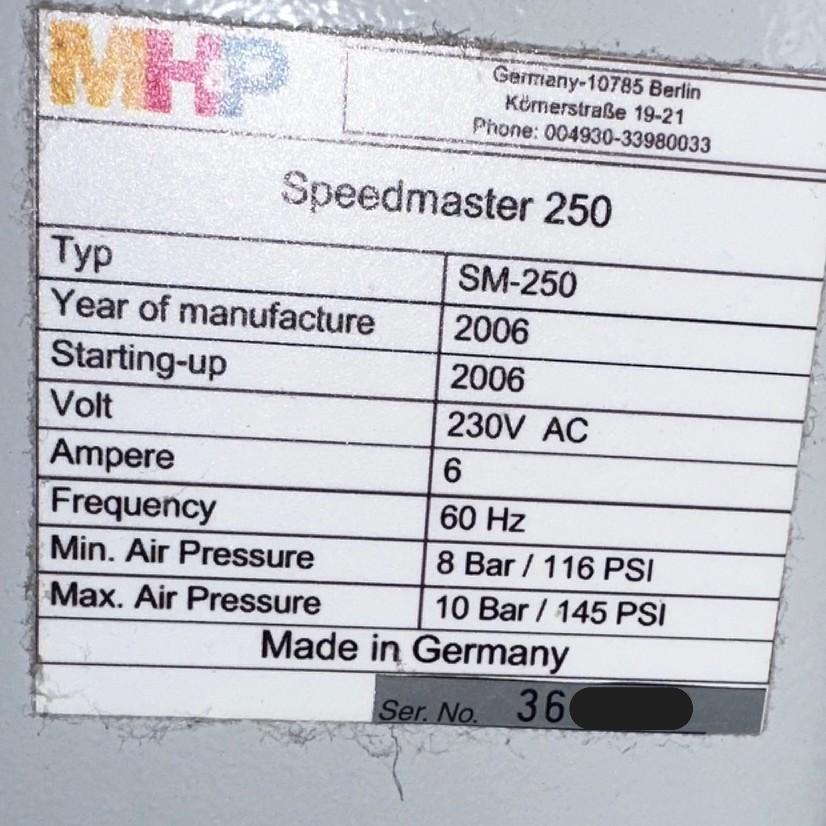

General technical data and power requirements:
Compressed air: 8 Bar
Voltage: 230 V
Engine performance: 900 W"
