Norfield 3800LR Door Lite Machine

***Manufacturer's Information:

From the manufacturer and web:

The Norfield 3800LR is a specialized door lite cutting machine designed to cut glass openings (lites) and perform lock prep on wood, steel, and fiberglass doors. The "LR" designation specifically indicates the inclusion of an overhead template system, which allows for quick-change setups for common lite styles without the need for individual plywood templates for every job.

Features:

- Overhead Template System: Integrated into the Norfield 3800LR to eliminate the need for manual plywood templates when cutting standard 22" x 36" and 22" x 64" half and full lites.
- Multi-Material Capability: Equipped with adjustable RPM speed control to handle wood, fiberglass, and up to 18-gauge steel doors.
- Integrated Lock Prep: Standard functionality includes lock boring (1-1/2" to 2-1/8") and backset adjustments (2-3/8" to 2-3/4"). Many LR units also feature latch drilling and faceplate routing.
- Compact Footprint: Front-loading design eliminates the need for side infeed or outfeed space, making it ideal for smaller shops.
- Clamping System: Utilizes an 8-point pneumatic clamping system with non-marring neoprene pads to secure the door during the high-speed routing process.

Standard features:

- Eight location clamping system provides a firm grip on the door
- Adjustable RPM speed control accommodates both wood and metal cutting
- Industrial air filter, lubricator and regulator for long life
- Three location clamping actuation
- Neoprene clamp pads that protect the material from marring

Specifications:

Capabilities Min Max

- Door Width: 3'0"
- Door Height: up to 8'0"*
- Door Thickness: 1-3/8" 1-3/4"
- Lockbore Size: 1-1/2" 2-1/8"
- Lock Backset 2-3/8": 2-3/4"
- Faceplate Width: up to 1-1/8"
- Faceplate Length: up 2-1/2"
- Approx. Shipping Weight: 2,000 lbs

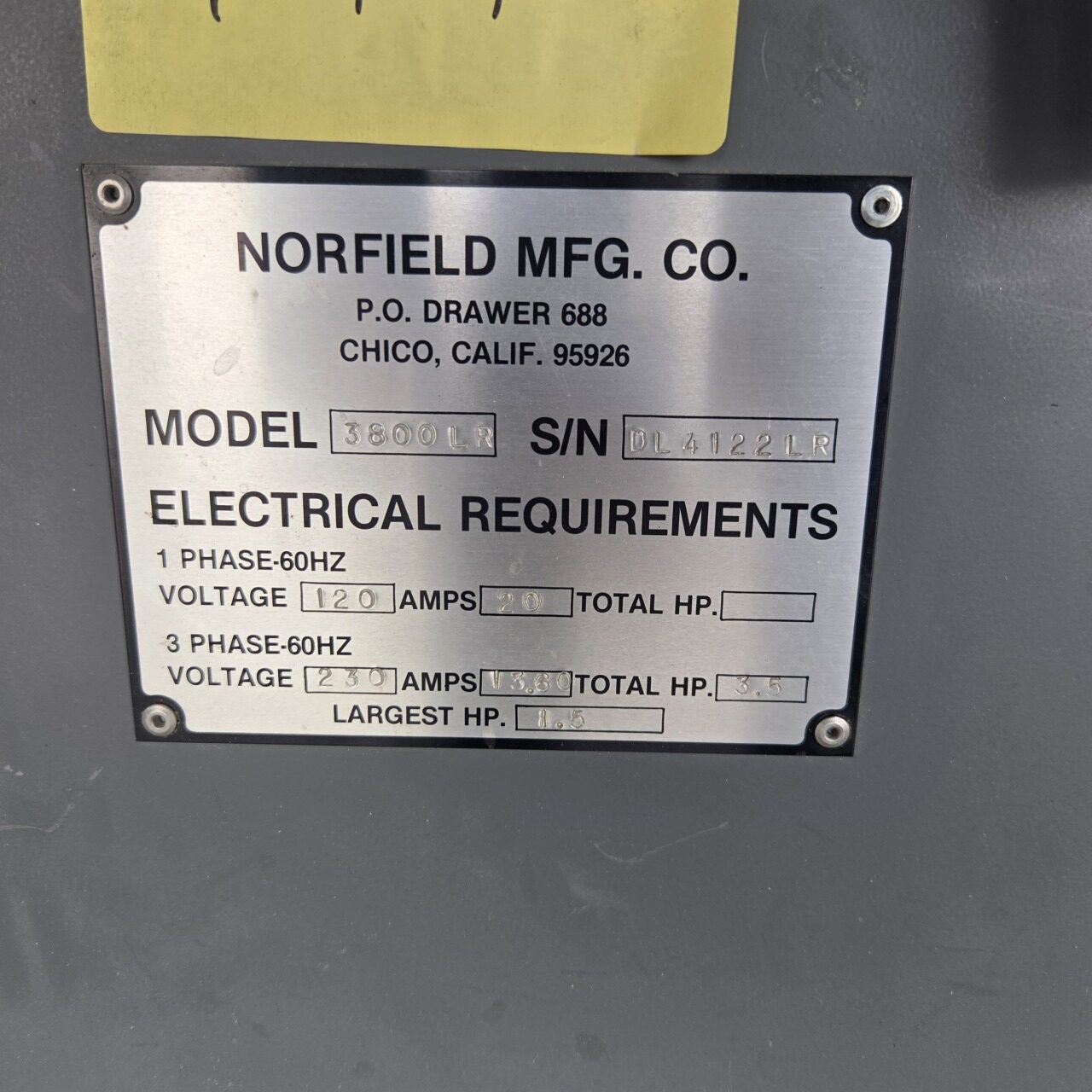

- Electrical: 208V 60Hz 230V 60Hz
- Air: 3CFM @ 90PSI
