Used
Norfield 5000 Door Machine Line
SKU: UE-071825B
Manufacturer: Norfield
Date listed: July 18, 2025
Norfield 5000 Door Machine Line
- Model Number: 5000
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "It runs every day and is available for viewing. Will do 6.8 Doors Only
Additional Photos and Video available.

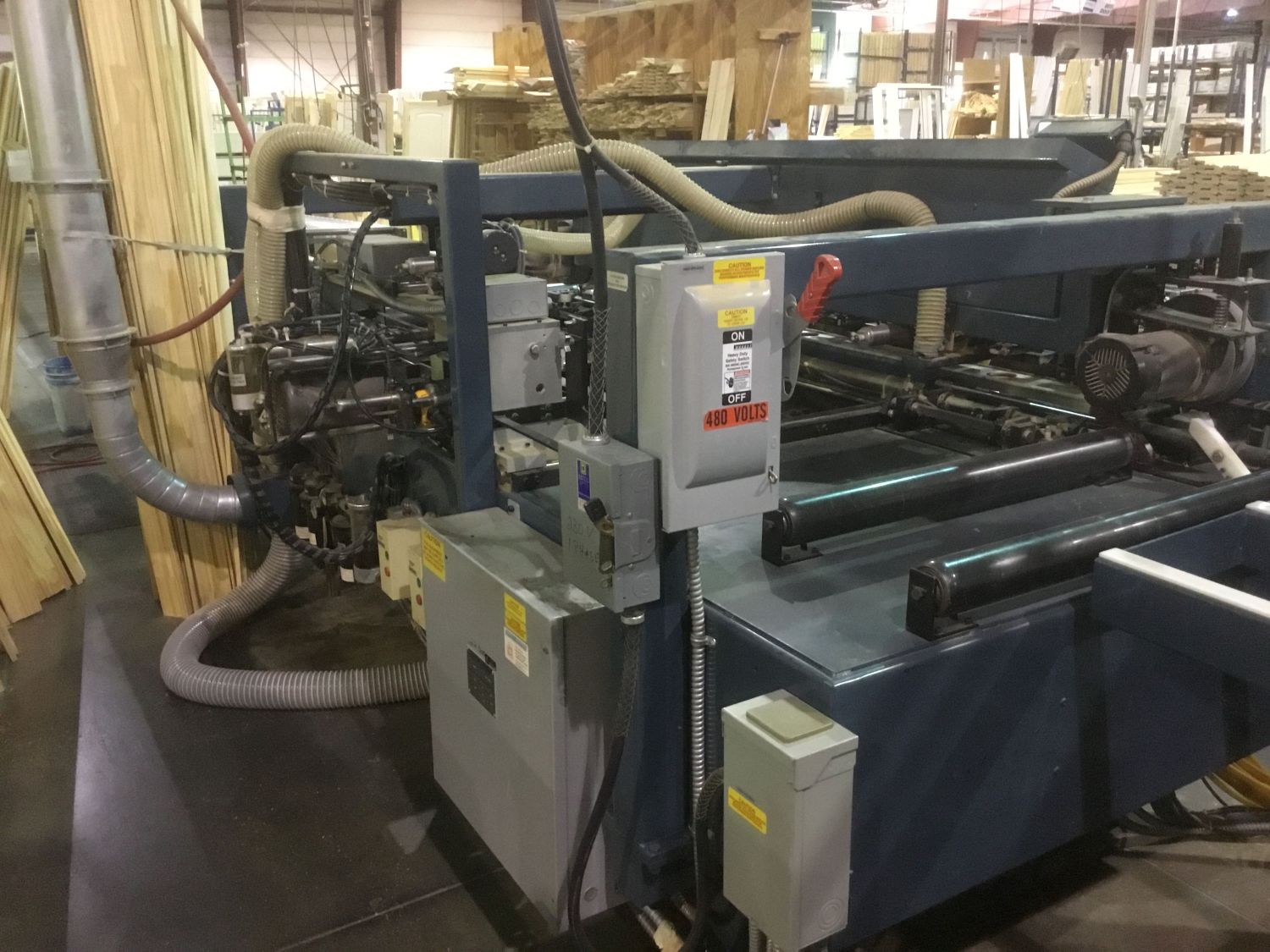

NORFIELD 5000 LINE
Includes:

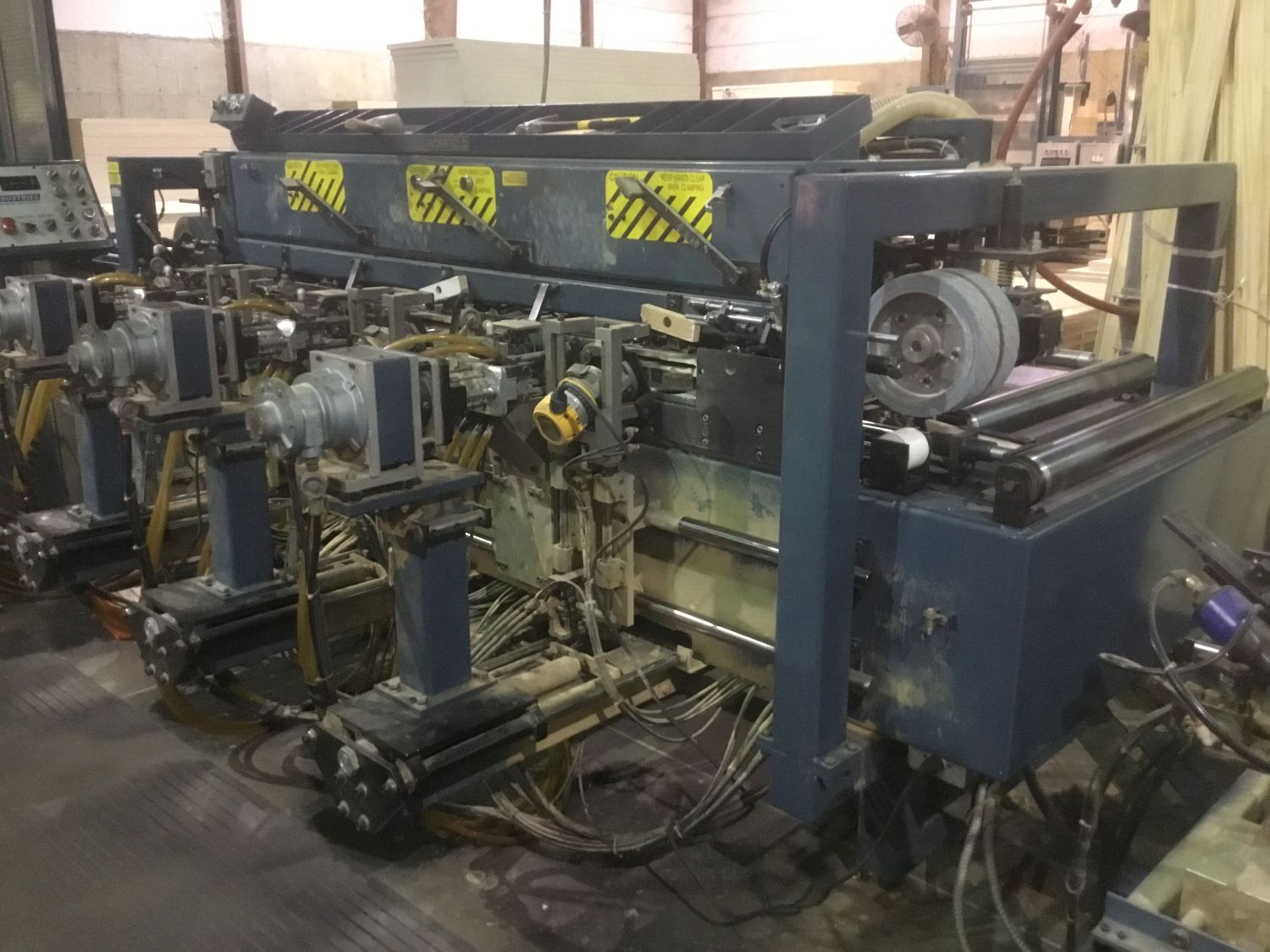

- NORFIELD 5000 MACHINING CENTER w/Auto-Screw Feeders

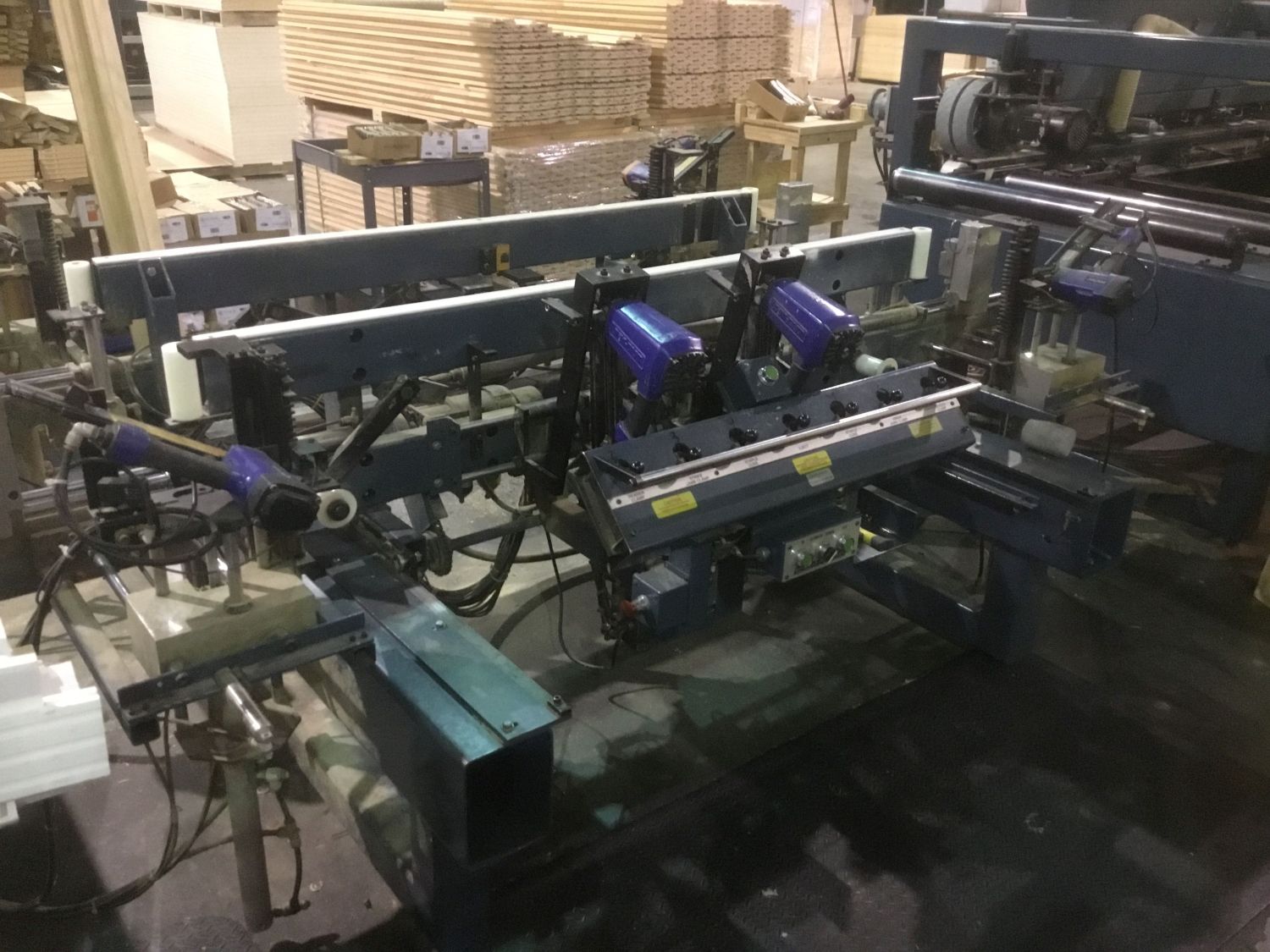

- NORFIELD 5100 ASSEMBLY STATION
- NORFIELD 5200 DOOR LOADER"
About this Item
Features & Specifications
***Manufacturer's Information:
5000 Automatic Prehung Door Machine
Features:
- Automatic door width adjustment
- Automatic door feeding, and positioning for right- or left-hand doors
- Automatic pre-drill for 3-1/2" hinges
- Automatic hinge application - operator places hinges on applicators
- Automatic 2-1/8" lock bore, latch bore and faceplate routing
- Center mounted cycle start controls are ergonomically placed for operator
- E-stop with air dump releases pinch points and clamps for operator safety
- Bypass lock bore machining
- Sequenced based sensors ensure reliability at higher operating speeds
- Machine clamps the door up for varying door thicknesses
- Simplified re-positioning of door for handling changes
- 7" operator touchscreen with graphical interface for ease of use
- Raised molding compatible
- 10" touchscreen control
- Operating temperature above 50º
- Options
- Spare parts packages
- 3HP vacuum with auto start
- Additional conveyor sections
- Auto tilt changeover, 0° to 3° for hinge and latch sides

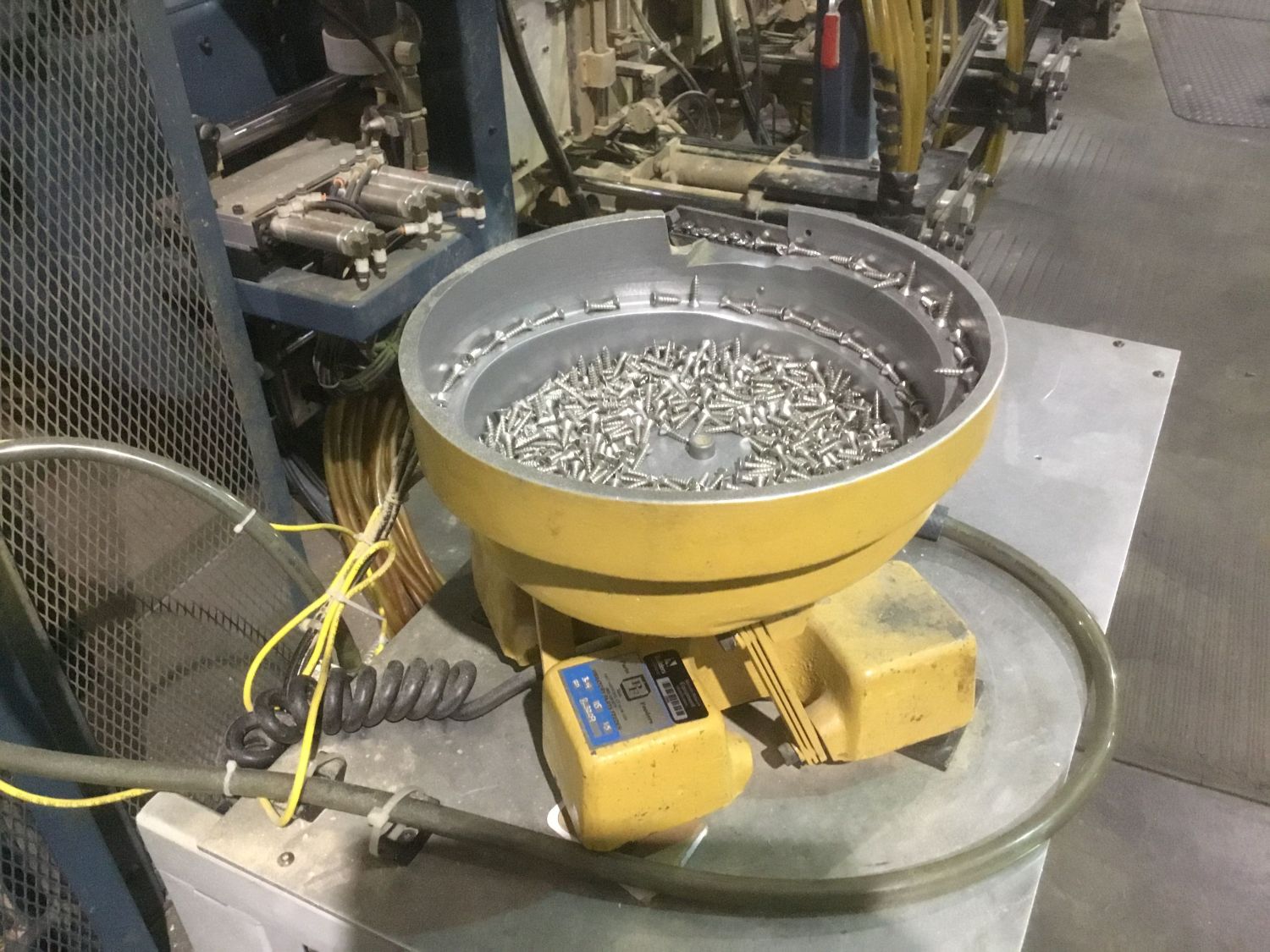

- One bowl automatic screwfeeding (Designed for #9 philips screws)
- Two bowl automatic screwfeeding (two screw colors)(Designed for #9 philips screws)
- High speed option for increased production output
*not adjustable between 6-8 and 7-0 door production
