Norfield Eagle Line Door Machinery Lot

***Manufacturer's Information:

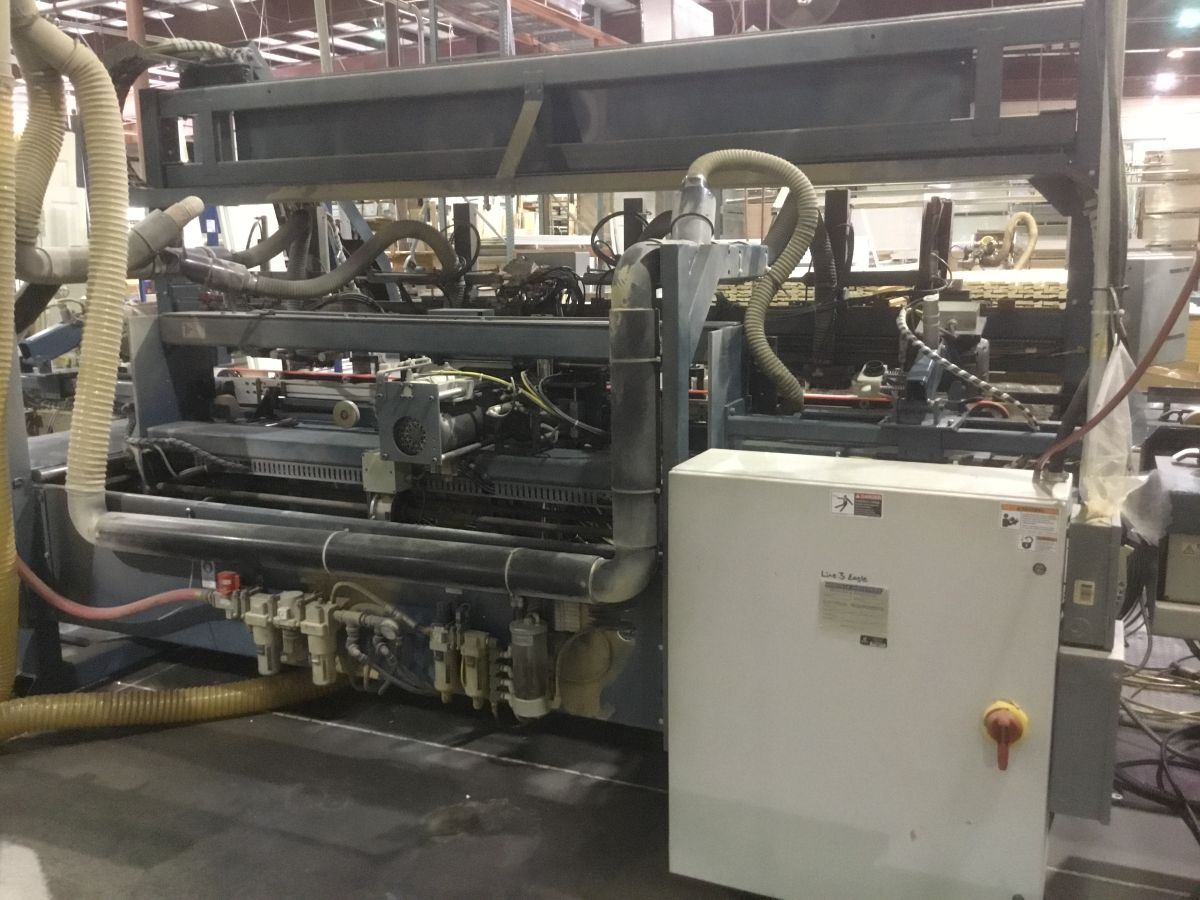

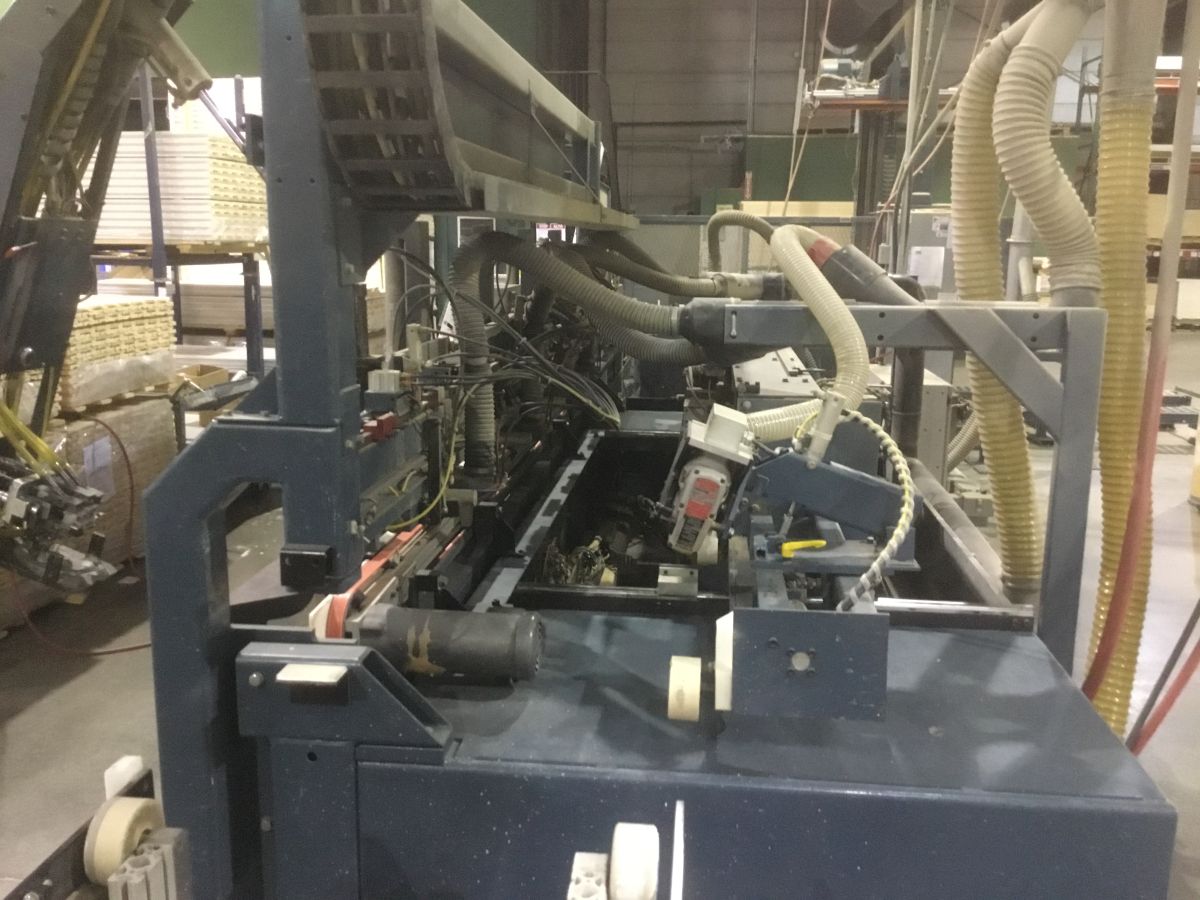

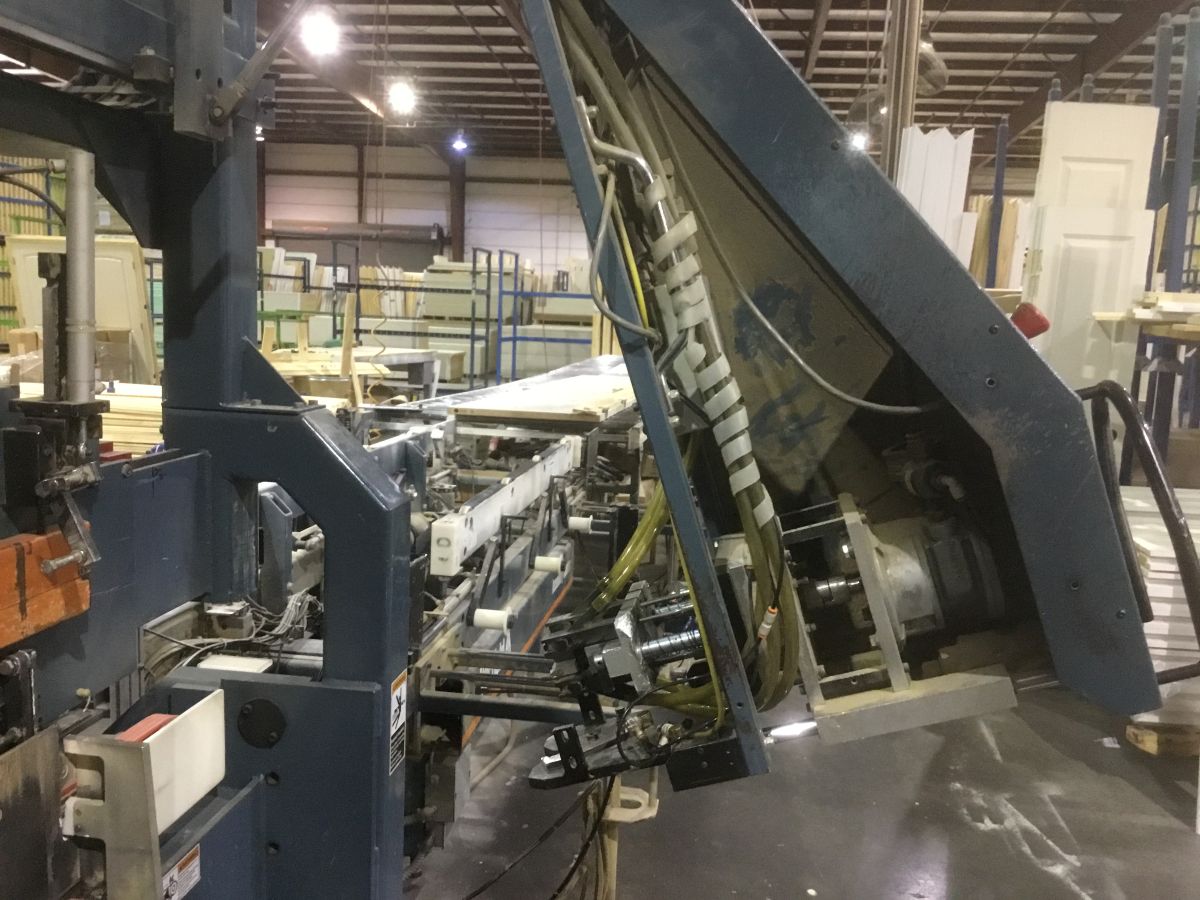

Eagle Automatic Prehung Door Machine

Standard Features:
- On-screen diagnostics & help screens with pop-up messaging to greatly increase the effectiveness of troubleshooting
- Integrated system control
- Raised molding ready
- Auto door position and door feed
- Auto and manual width indexing
- Manual tilt for flush hinge-mortising on double beveled doors
- Interior/exterior ready for both wood and fiberglass
- Centrally located ergonomic controls
- Non-marking rubber rollers
- Dust collection plumbing
- Intuitive graphical user interface using a high resolution, full color 7" touchscreen
- One touch auto change between two different hinge patterns
- Bypass lock bore machining
- Auto screwfeeder vacuum system for manual screw changes
- Auto-start capable for dust collection vacuum
- Third auto-position hinge pattern

Options:
- 3-1/2" & 4" Hinge application (pre-drills required) includes a vacuum system for manual screw changes (Designed for #9 philips screws)
- 3-1/2" & 4" Pre-drilling
- Ball catch drilling operates while processing door for hinges, reducing cycle time
- High-res 10" touchscreen
- One-touch, on-the-fly quick screw change system
- Auto tilt for flush hinge mortising on double bevel doors
- Preventive Maintenance Contract
- 1/4" hinge radius

Specifications:

Capabilities Min Max
Door Width: 1’6” 3’6”
Door Height: 6'6" 8'0"
Door Thickness: 1-3/8" 1-3/4"
Jamb Width: 2-1/2" 7-1/2"
Jamb Height: 6'6" 8'0"
Jamb Thickness: 3/8" 1-1/2"
Hinge Size: 3-1/2" 4"
Hinge Radius: 5/8"
Hinge Butt per Door: 2,3 or 4

Lock and deadbolt bore Min Max
Diameter : 1/2" 2-1/8"
Lock height: 34-1/2" 65-1/2"
Backset: 2-3/8" 2-3/4"

Latch Bore Min Max
Diameter: 1/2" 1-1/4"
Lock height: 34-1/2" 65-1/2"

Faceplate Mortise
Plate width: 1-1/2"
Plate length: 2-1/2"

Installation
Approx. Shipping Weight: 6,500 lbs
Floor Space: 10'W x 13'L x 7'6" H
Electrical: 3 Ph 208/230V @ 50AMP
Air: 50 CFM @ 100PSI 1" air supply with 3/4" @100psi
