Used
OMAL HBD 1300 CNC Bore - Glue - Dowel Insertion Machine
SKU: UE-091525A
Manufacturer: Omal
Date listed: September 15, 2025

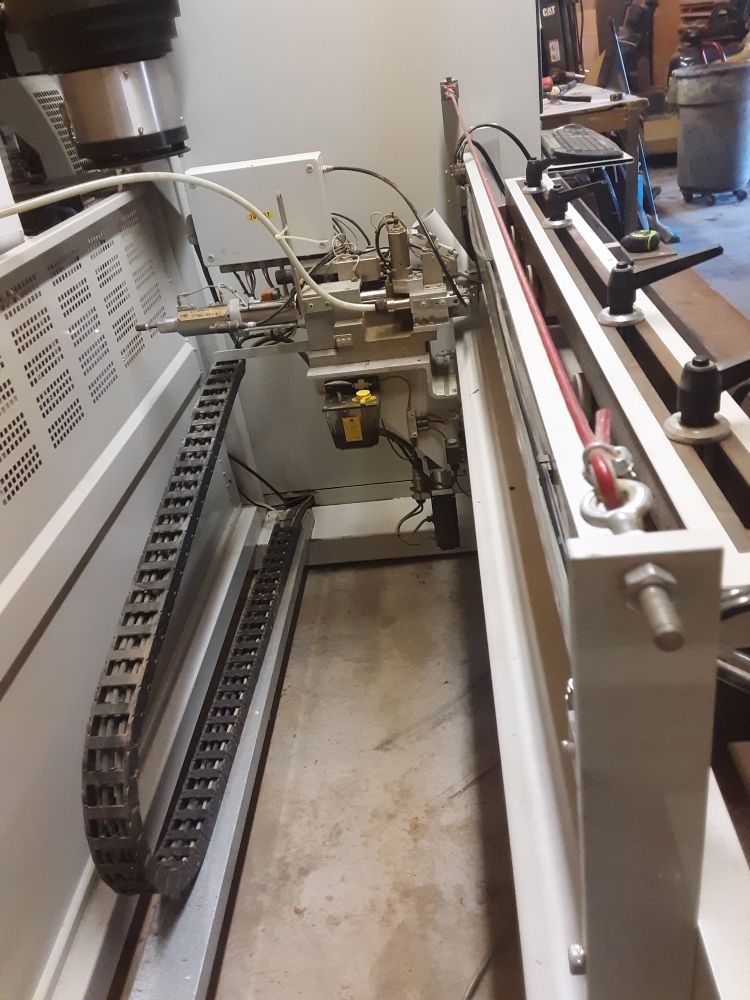

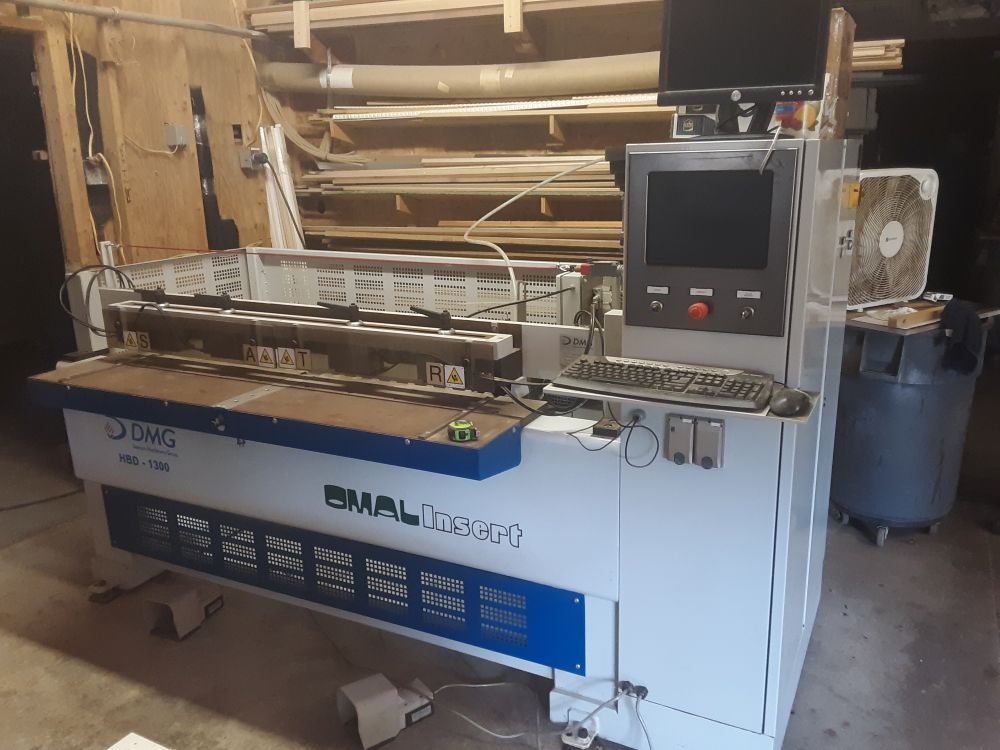

OMAL HBD 1300 CNC Bore - Glue - Dowel Insertion Machine
- Year Manufactured: 2007
- Model Number: HBD 1300
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "In good working order. Includes updated external monitor. video available upon request. Can also do an onsite inspection. Retiring and no longer need."
About this Item
Features & Specifications
***Manufacturer's Information:
The HBD 1300 1H is an Open Frame CNC machine to drill, glue and insert dowels with a 1300mm (51”) working field. The center and side fences are retractable in order to process up to an 8’ length piece in two cycles. With the OMAL “Sure Shot” revolver system the cycle time of drill, glue, and dowel insertion is approximately ONE second when holes are on 32 mm intervals.
Technical Data:
- Width: “X” 1300 mm (51”)
- Depth: “Y” 40 mm (1.57”)
- Vertical: “Z” 40 mm (1.57”)
- Voltage: 460V (220V)/60hz/3~
- Net weight: ~1200 kg (~2650 lbs)
Omal Insert 1300 CNC Bore-Glue-Dowel Machine
PTP drilling gluing insertion machine
- CNC Controlled X axis
Working area: 1300 mm 650x2 w/ 4 working areas
Part thickness: 10mm-40mm
1 horizontal drilling unit
1 glue (squirt) and dowel insertion unit
2- 8 litres glue/water tanks w/membrane glue pump
Shipping Footprint: 8 (length) x 5 (width) x 6 (height)
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in US - Southeast Region. Customers can pick the machine up or have it shipped for an additional fee.
