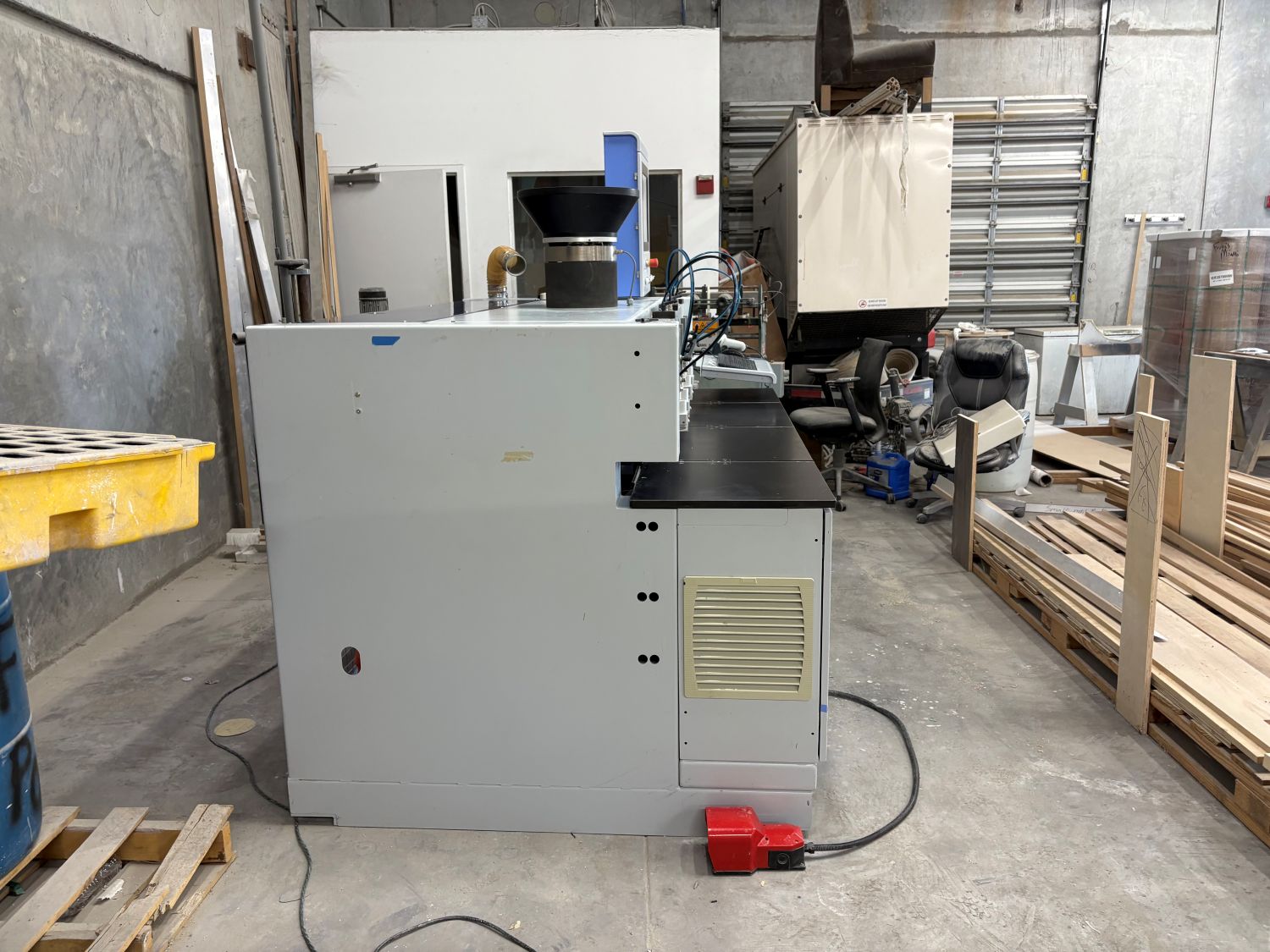

OPTIMAT ABD060/12/NA CNC Controlled Dowel and Boring Machine

SKU: UE-061226B
Manufacturer: Optimat
Date listed: June 12, 2026

OPTIMAT ABD060/12/NA CNC Controlled Dowel and Boring Machine

Year Manufactured: 2016
Model Number: ABD060/12/NA
Item Under Warranty: No
Can Item Be Inspected On-Site: Yes

From the Seller: "Before the new machine it was used almost daily. Replaced the dowel locator and actuator piston 3 times. Some other small electrical components replaced throughout the years, don't know the exact components. was in full use and working/being used up until new machine was installed."

GET PRICING

Features & Specifications

***Manufacturer's Information:

The OPTIMAT ABD060/12/NA (manufactured by the HOMAG Group/Weeke) is a high-speed CNC-controlled dowel and boring machine. It is designed to automatically drill holes, inject glue, and insert wooden dowels into panel edges. It is highly efficient for both small batch and high-volume cabinet or furniture production,

Specifications:

- Functionality: 1 horizontal drilling head and 1 glue/dowel injector.
- Workpiece Capacity: Handles parts up to \(1,250 \text{ mm}\) (49 inches) long, \(800 \text{ mm}\) (31.5 inches) wide, and between \(10 \text{ mm}\) and \(60 \text{ mm}\) thick.
- Dowel Size: Configured as standard for \(8 \text{ mm}\) diameter dowels (usually 30 or 35 mm in length).
- Operating Zones: Features dual independent working fields (left and right) for pendulum processing. This means you can load parts on one side while the machine processes the other side, minimizing downtime.

Features:

- Automation: Equipped with a vibrating hopper for automatic dowel infeed and a low-pressure glue pump for precise glue metering.
- Software: Uses HOMAG’s Power Control and woodWOP operating systems, which allow for graphic programming, error diagnosis, and automatic workpiece mirroring.
- Hold-Downs: Includes pneumatic top clamps to securely lock materials in place during the drilling and insertion cycle

***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
