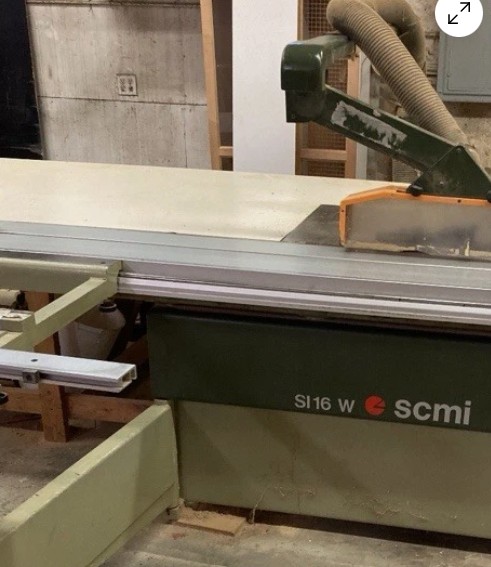

SCMI SI 16 W Sliding Table Saw Scoring Panel Saw

***Manufacturer's Information:

The SCMI Saw SI 16 W is a premium-quality sliding saw designed and manufactured by SCMI. Known for their reliability and durability, SCMI products are highly sought after in the industry. The Saw SI 16 W is a top-of-the-line tool that offers precision cutting and smooth operation, making it a valuable addition to any workshop or job site. With the SCMI brand reputation for excellence, this sliding saw is sure to impress users with its performance and quality.

Features & Specifications:

- 220 v 3 phase
- 10′ sliding table
- c/w scoring, 126″ (3,200 mm) Stroke with scoring.
- Dimensions of the (fixed) table 1150 x 630 mm
- Table height 880 mm
- Dimensions of trolley 3050 x 350 mm
- Run length of the trolley 3400 mm
- Slope range of the saw blade Tool diameter 90º – 45º
- Smallest saw blade 200 mm
- Standard saw blade 350 mm
- Largest possible saw blade 400 mm
- Max. Cutting height (with saws 350 mm) at 90 position 110 mm || at 45 position 75 mm
- 9 HP main motor and 1 HP scoring motor, with (3) main arbor speeds at 3,200 – 4,500 & 6,000 RPM
- speeds n= 3200/4500/ 6000/1′
- Largest cutting width with Parallel stop 1000 mm
- Largest format cutting length 3200 mm
- 4-1/2″ Depth of cut with standard 13-3/4″ blade dia.; max blade is 15-3/4″;
- 30 mm main arbor & 20 mm scoring arbor;
- 39″ max. width to rip fence;
- 45-1/4″ x 24-3/4″ fixed table.
- Motor Power Main Saw 4kw (9HP)
- Motor Strength 0.75 kw ( 1 HP)
- Space Requirements 3300 x 3200 x 1000 mm
- Weight 900 kg
