SlipCon Perfection BBDD Industrial Finish Brush and Denibbing Sander

***Manufacturer's Information:

From the manufacturer & Web:

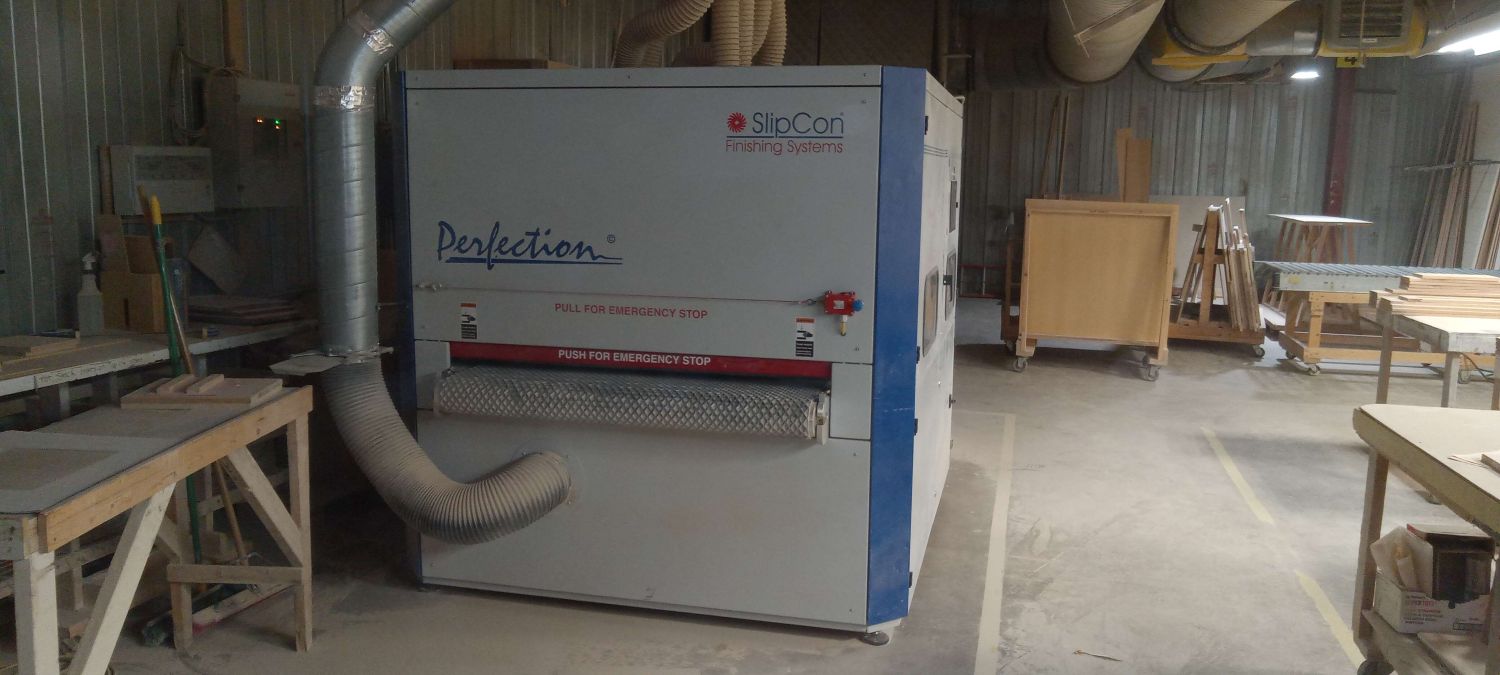

The 2007 SlipCon Perfection BBDD is a heavy-duty, industrial finish brush and denibbing sander manufactured by SlipCon (now Alpha-Brush) in Denmark. It is highly regarded as an industry standard for mid-to-large production facilities to process whitewood, stains, sealer coats, and UV primers across cabinet doors, entry doors, shutters, and face frames.

Specifications:

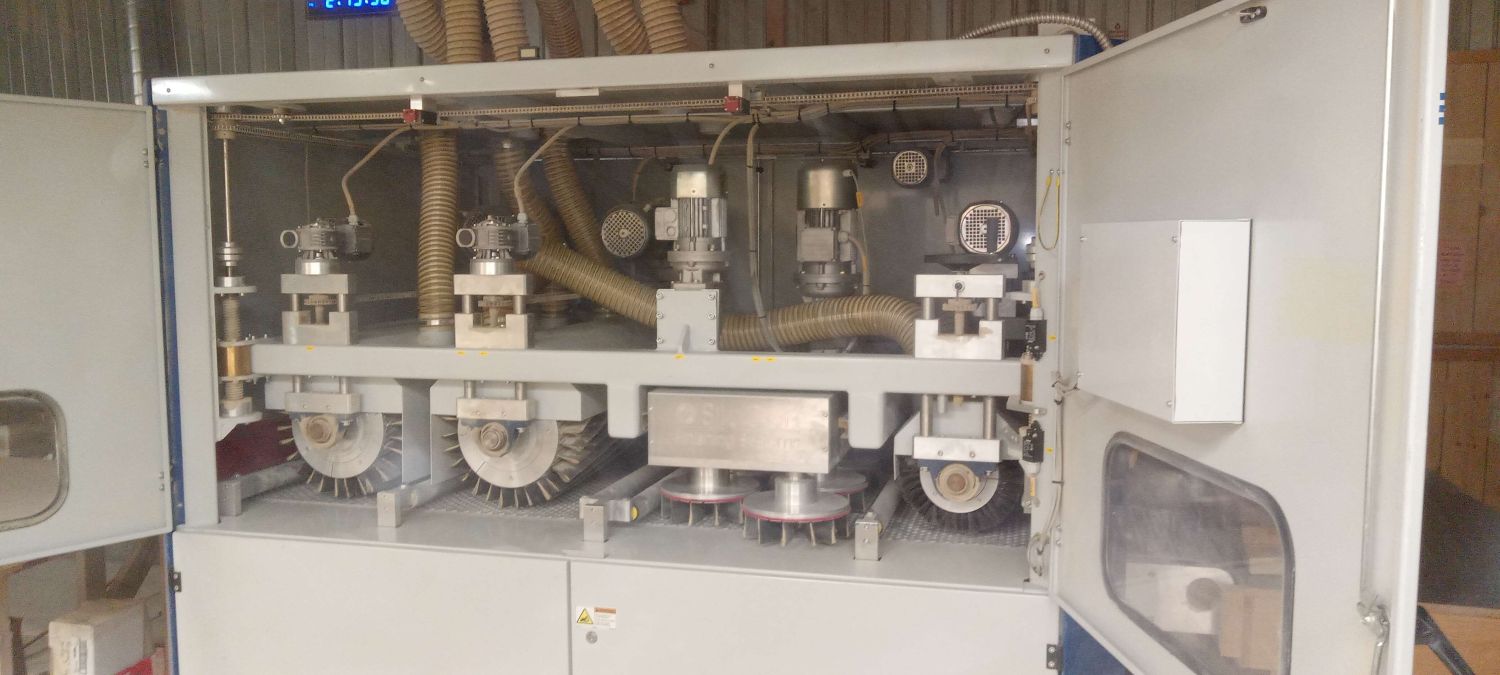

- Machine Configurations: Typically built as a 3-head or 4-head station. The letters BBDD signify its setup:
- B (Brush Roller): First horizontal rotating brush-backed sanding roller.
- B (Brush Roller): Second horizontal rotating brush-backed sanding roller for lineal grain scratching.
- D (Disc Station): Multi-disc unit that rotates and oscillates left to right for non-directional blending.
- D (Disc Station): Second multi-disc station to finalize edge-breaking and surface profiling.
- Working Capacities: Commonly configured for 1350 mm (52" to 53") working widths and up to 4" material thickness.
- Electrical Requirement: Built to industrial standards operating on 460V - 480V / 3 Phase / 60 Hz power supplies.
- Vacuum Bed: Integrated with a powerful vacuum motor (often 7.5 kW) to secure small or slick panel parts firmly to the variable speed feed belt.

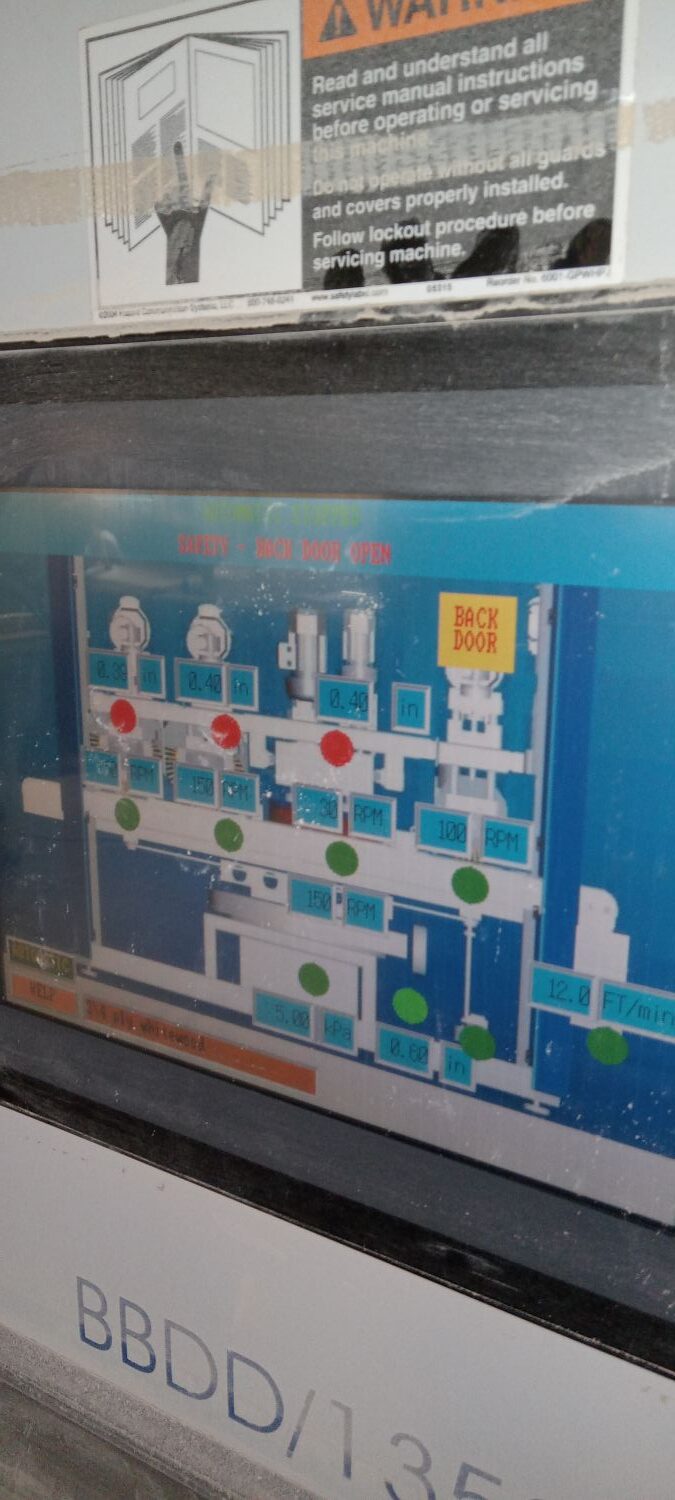

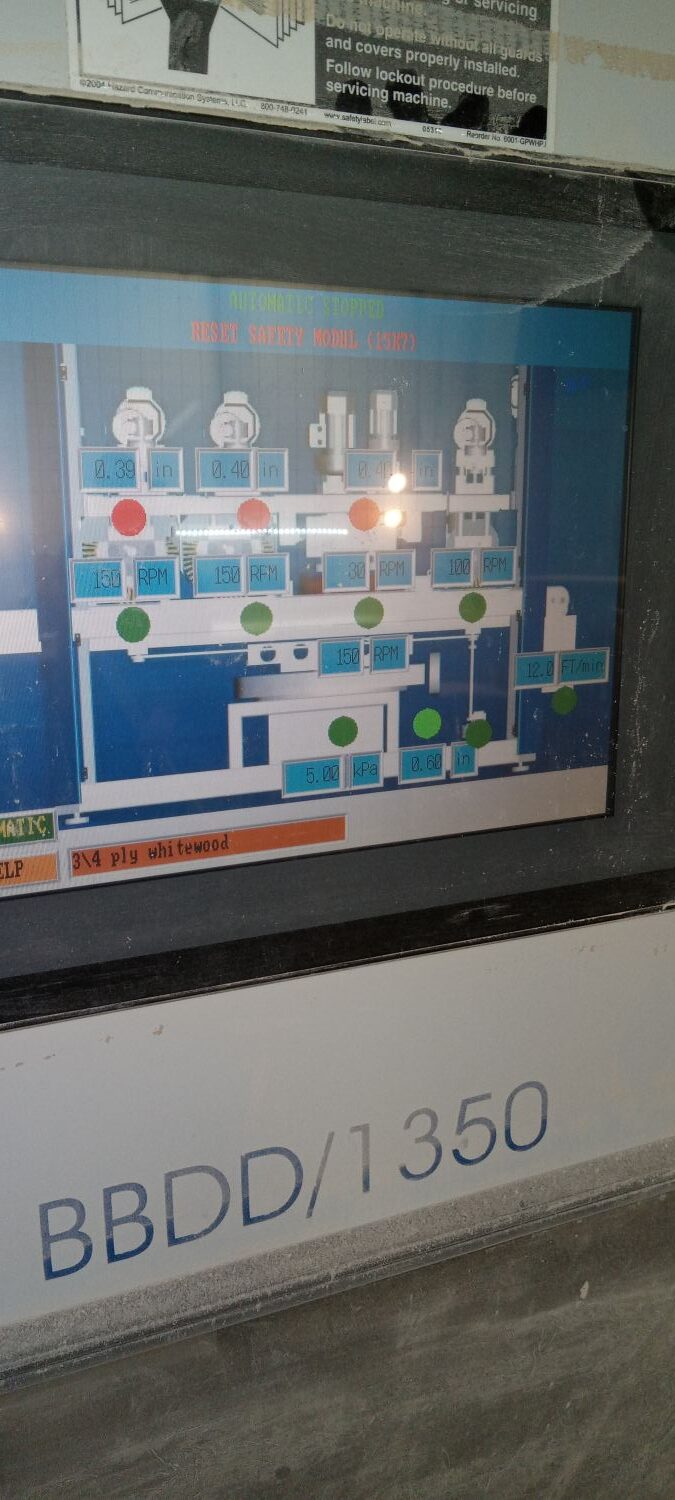

- Controls: Equipped with a centralized PLC touch-screen console allowing independent variable speed adjustments for individual disc stations, rollers, and conveyor feeds.
- Total Machine Weight: Roughly 2,800 kg to 4,000 lbs depending on final auxiliary configurations like panel blow-offs or cleaning brushes.
