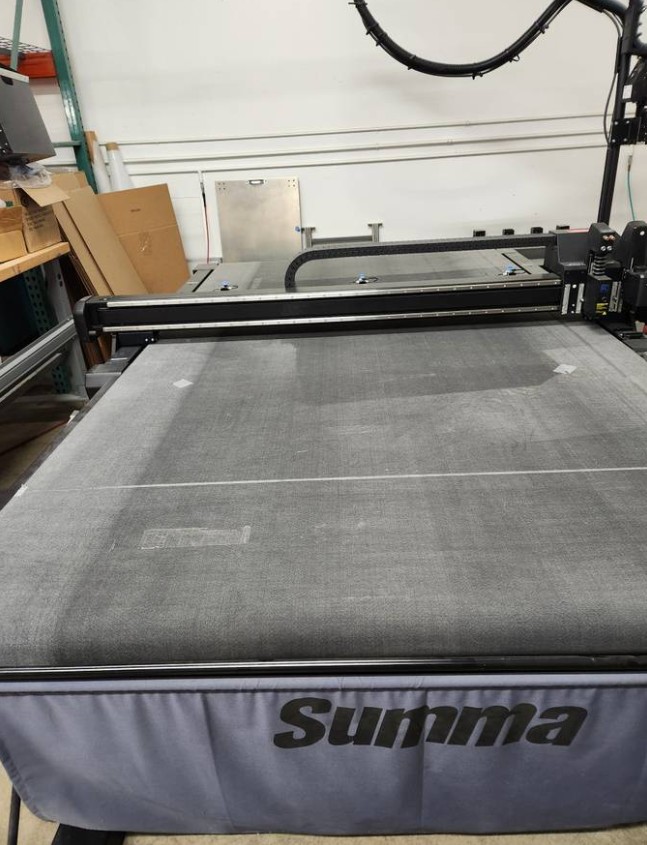

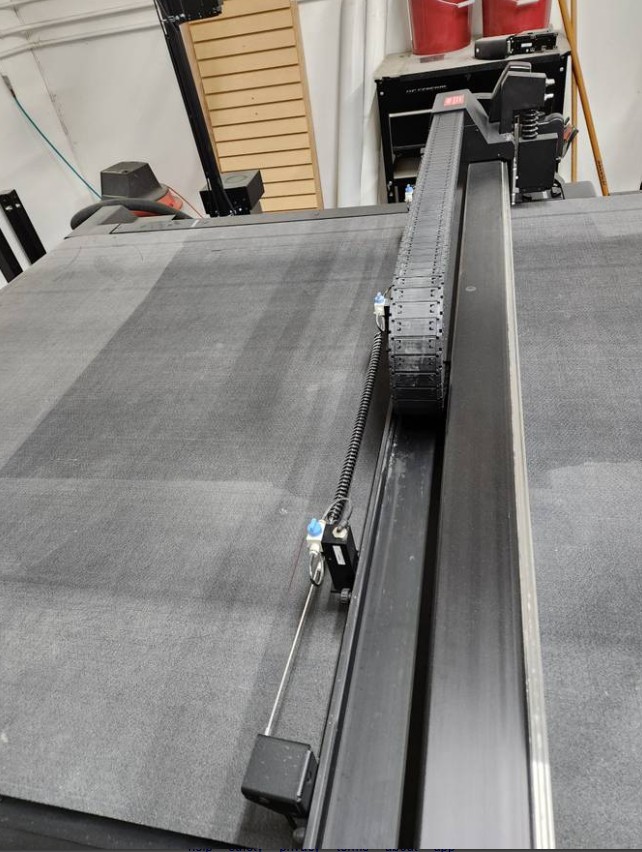

Summa F1612-2 Digital Flatbed Cutting Table

***Manufacturer's Information:

From the manufacturer and web:

The Summa F1612-2 (part of the F Series) is a professional, compact digital cutting table designed to automate finishing for sign-makers and print shops. It is known for its versatility in handling both rigid and flexible media, such as vinyl, foam boards, and roll stock, within a relatively small footprint of approximately 63" x 47" (160 x 120 cm)

Specifications:

- Cutting Area 63 in. (160 cm) wide x 47.2 in. (120 cm) long
- Max Speed Up to 39.4 in./sec (1000 mm/sec)
- Acceleration Up to 1 G
- Accuracy0.05% of move or 0.05 mm
- Vacuum Table Features variable vacuum zones adjusted for material width

Features:

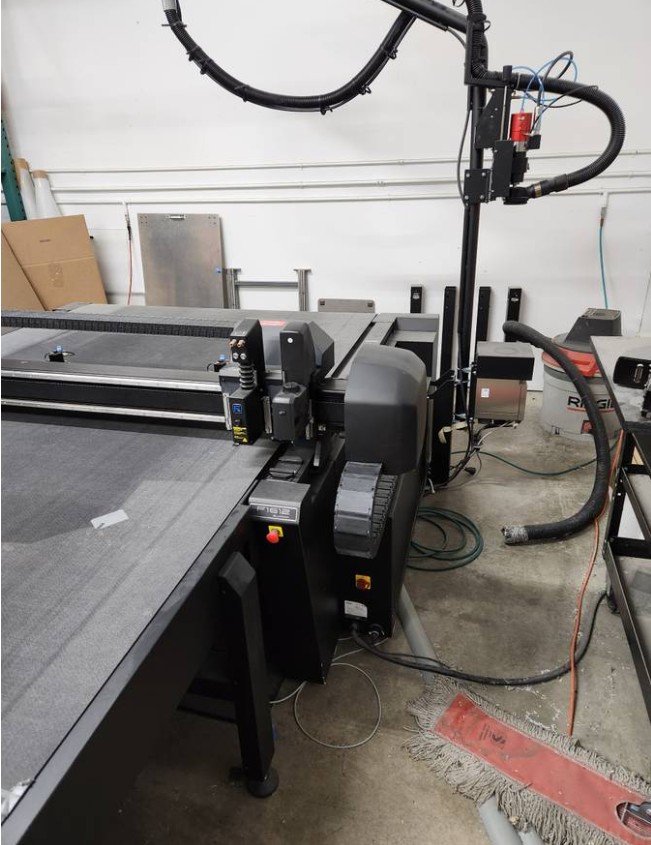

- Modular Tooling System: The multifunctional head can hold up to three modules simultaneously. This allows you to combine tasks like kiss-cutting, through-cutting, and creasing without needing manual module changes between steps.
- Automated Depth Control (ADC): This feature automatically detects the blade height and sets the optimal knife depth and tool orientation, ensuring precision and reducing material waste.
- OPOS-CAM System: It comes standard with a high-speed optical camera recognition system that reads registration marks for unparalleled contour cutting accuracy.

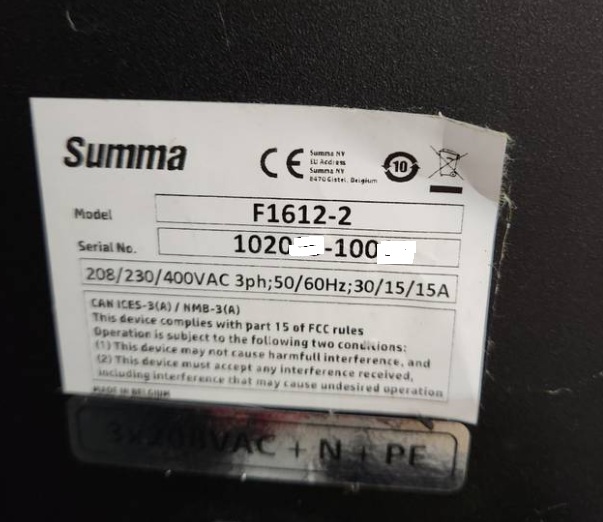

- Power Versatility: While originally requiring three-phase power, newer units are available with a single-phase power connection to fit businesses with standard electrical setups.
- Media Handling: The machine often includes a conveyor system and roll-feed system as standard accessories to handle long-run jobs efficiently.

The F1612 can be customized with various tools depending on your workflow:
- Tangential Knife Module: Provides 10kg of vertical downforce for heavy-duty cutting.
- High-Frequency Router: Ideal for rigid substrates like acrylic, PVC, and aluminum composite boards.
- Oscillating Tools: Both electronic and pneumatic versions are available for cutting through thick or challenging materials like foam core and corrugated boards.
- Creasing & V-Cut Tools: Essential for packaging prototypes and creating foldable edges
