Used
VENJAKOB "VEN FLOW" Flow Coater and Oven (Stain Coating)
SKU: UE-021925C
Manufacturer: Venjakob
Date listed: February 19, 2025
VENJAKOB "VEN FLOW" Flow Coater and Oven (Stain Coating)
- Year Manufactured: 2015
- Model Number: VEN FLOW
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "Very Nice system for water-based stain coating or other coatings."
About this Item
Features & Specifications
***Manufacturer's Information:

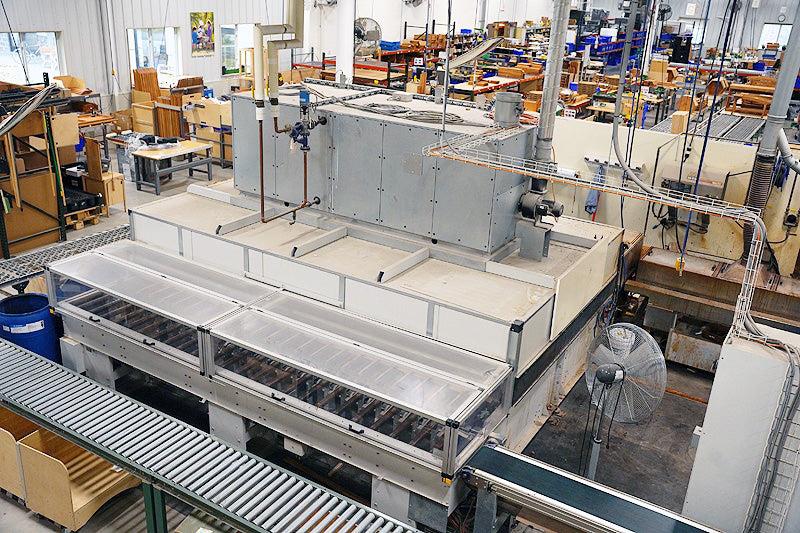

This listing is for a complete line that consists of a Flow Coating line that feeds into a cross transfer oven and back out on to an outfeed conveyor making a 180 degree circuit. The heat exchanger needs to be heated by means of a hot water boiler or similar.
Maximum Part width: 305 mm
Speed range: 2 - 10 m/min.
Pos. 1 - FEEDING BELT CONVEYOR:
For feeding the batches into the flowcoater, Belt with marked area to built a gap for the angle transfer, Technical Data: length: 2300 mm
Pos. 2 - IMPREGNATION MACHINE VEN FLOW:

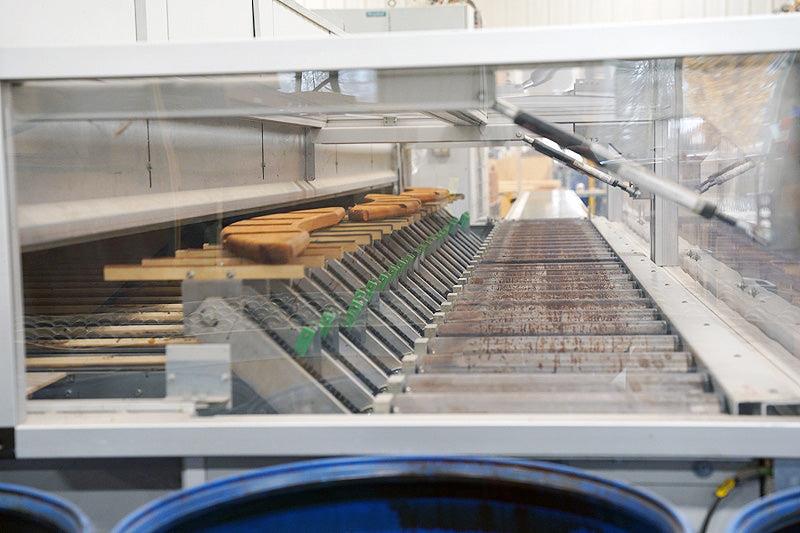

For flowcoating of profiles in continious production with a waterbased impregnation (viscosity similar to water). The material is is sprinkled on the surface and remains for appr. 10 seconds. After this time a high pressure air knife nozzles will blow the acess material from the surface. The whole cabin is built with fall to the side to collect the rest of the material. It is reused after passing a filter system. The cabin is built of stainless steel. The blowing off of the access material by air knife is effected by a high pressure fan.
The machine comprises:
- 1 conveyor system with spray protected roller system length 3000 mm
- 1 sprinkling zone with two nozzle systems adjusted to reach the whole surface of the workpiece. length: 200 mm
- 1 penetration area length ca. 1000 mm time of residence ca. 10 sec
- 1 blowing zone with adjustable knife nozzles air supply with high pressure fan air flow adjustable by frequency converter length ca. 1000 mm
air speed ca. 40 m/sec. material supply to supply the two sprinklers with fluid and collector for recovered material.
Workpiece tolerances:
- Twist: max. 1° on the whole length, straightness max. 0,5mm deviation/m in horizontal and vertical weight distribution: evenly on whole length coating material: waterbased impregnation. Unstable components can not be repositioned when tilted.
Pos. 3 - MOULDING ANGLE TRANSFER VEN TRANS 90°
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
