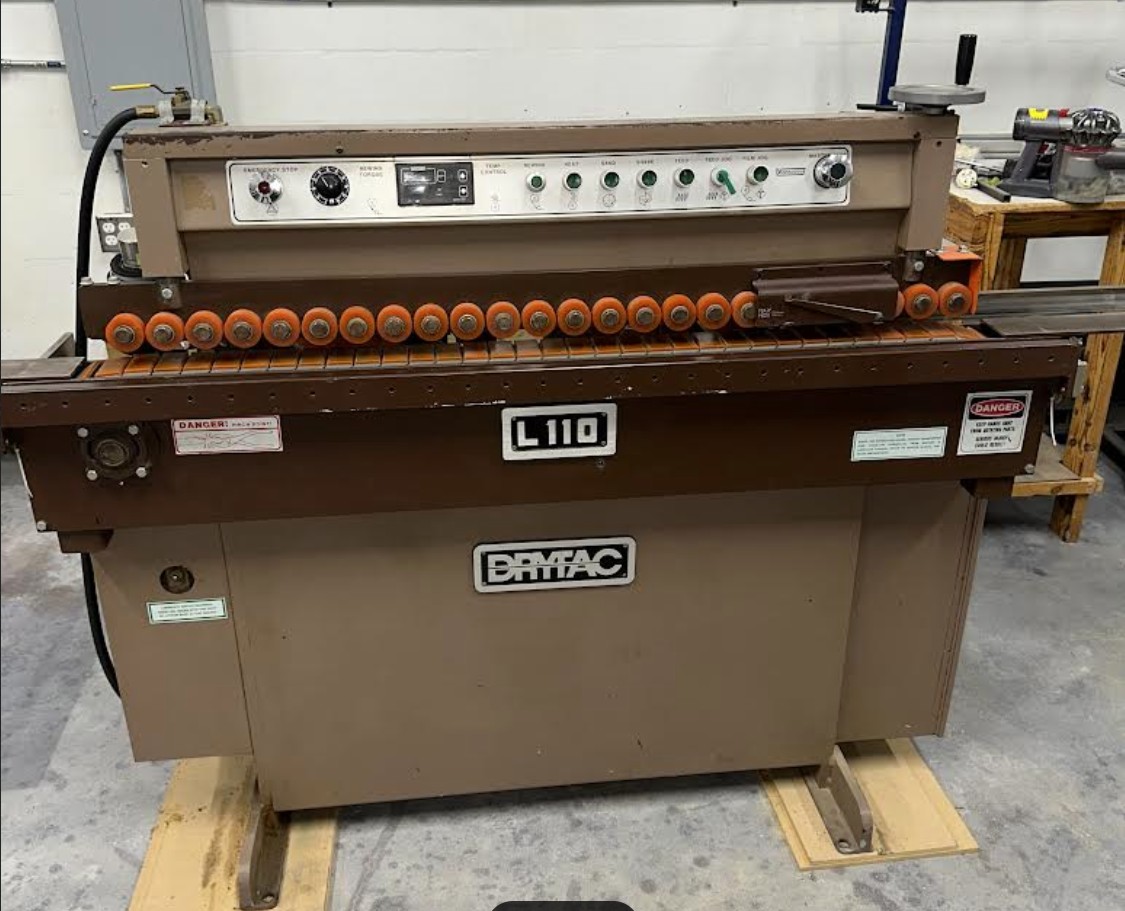

Voorwood L110 Profile Edge Shaper / Sander / Foiler

***Manufacturer's Information:

Features & Specifications:

Feed through, single sided with:
- (1) shaping,
- (1) sanding
- (1) foiling station, all units are zero degrees - 45 degrees tilting. Minimum part size 5" x 2 3/4", thickness 1/8" to 1/2" maximum, 1 3/4" maximum profile face.

Equipped With:

- 5 HP - 6,000 RPM shaping spindle (1-1/4" diameter) for 6" maximum diameter tooling; 1,500 RPM Turbosand rotary sanding head with 1 - 1/4" diameter spindle.

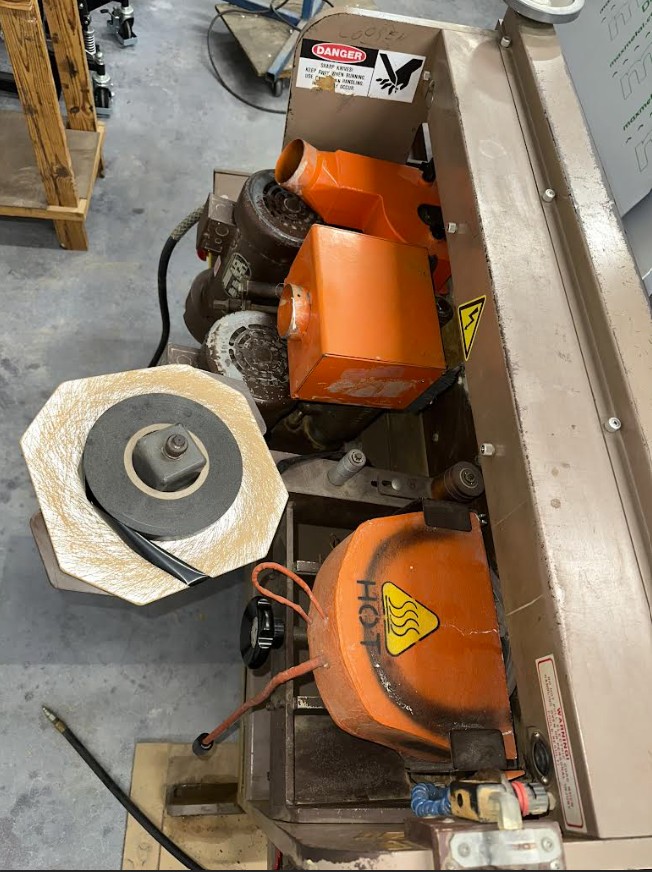

Foiling Section:

- Supply roll for 2"maximum width, shaped applicator wheel with automatic heat control.

- Adjustments 2" in and out, 1-1/2" laterally across and -10 degrees to +50 degree angle from horizontal, film take up carrier rewinds with automatic tension control, stripper rollers for precision trimming on miters and edges.

- 18 FPM fixed speed feed, 1 HP feed drive, over head hold down with (2) rows of tightly spaced non-marking rollers and feed chain with non-marking rubber pads, feeds from left to right.

- Outrigger panel support roller track

Voorwood designs and manufactures innovative, high-quality, precision-made woodworking machinery, which includes double-end foilers, single-end (edge) foilers, end finishers, contour foilers, plough (bluff cut) foilers, surface foilers, and converter laminators. Voorwood woodworking machinery can be used in the manufacture of kitchen cabinets, RV/mobile homes, furniture, award/plaques, picture frames, and in the automotive industry. Voorwood engineering customizes the woodworking machinery to meet your process requirements. Voorwood foiling machines are used to shape, sand, and foil profiles for panels, outside edges, coping, and stile and rails. Voorwood engineering customizes the woodworking machinery to meet your process requirements.

Heat transfer foils can be applied to vertical or horizontal flat surfaces, curves, edges, and contoured profiles and provide exceptional protection against marring, scratching and abrasion. Hot-stamp foils have the look of real woodgrain finishes, marbles, granites, solid colors, and geometric designs. The heat transfer foils enable furniture, cabinet, and related wood products manufacturers to shape, sand, and apply decorative woodgrain or solid finish to MDF edges in a single manufacturing step.
