Used
Zünd G3 L-3200 Digital Flatbed Cutter
SKU: UE-102126A
Manufacturer: Zund
Date listed: October 21, 2026

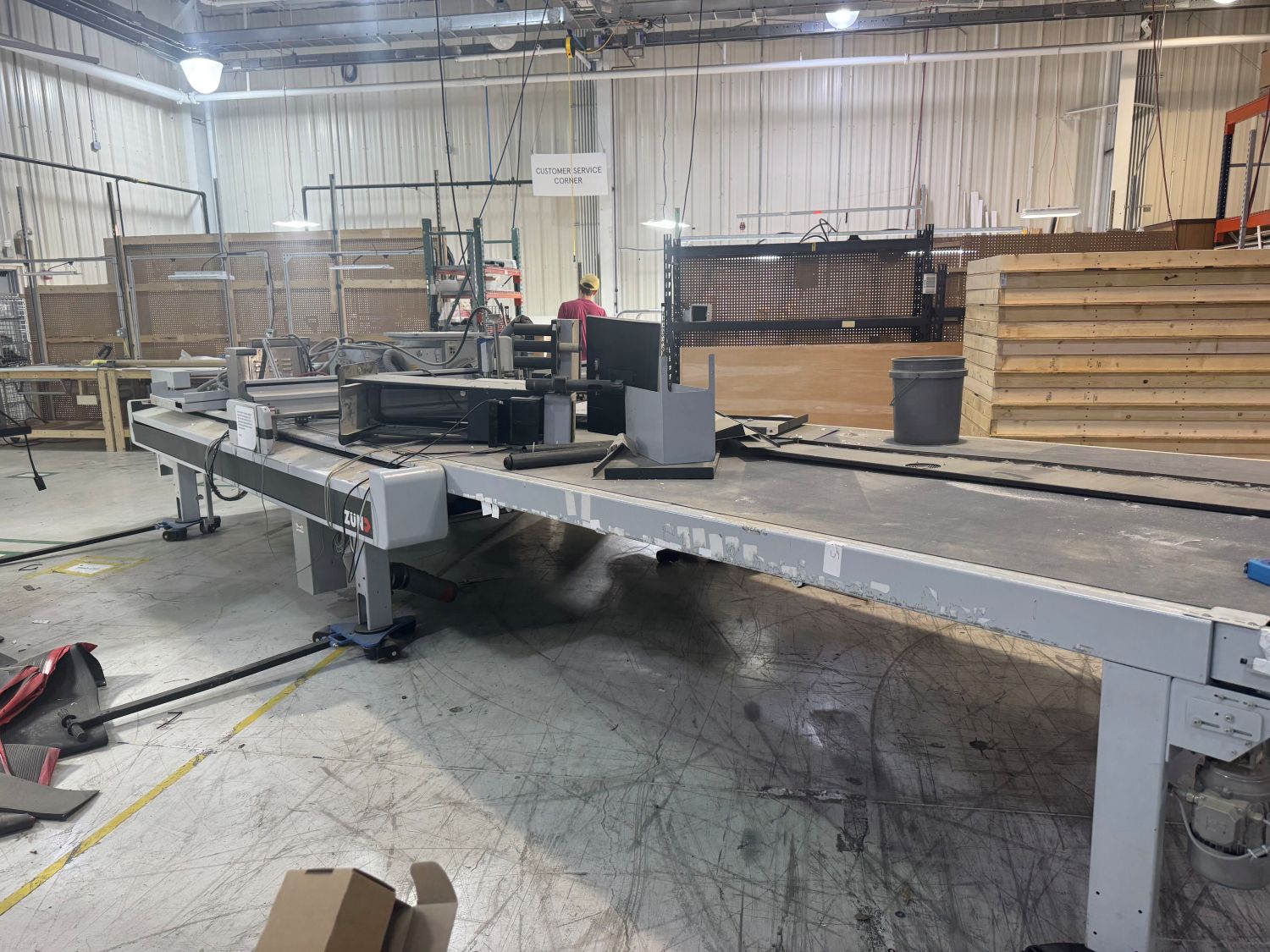

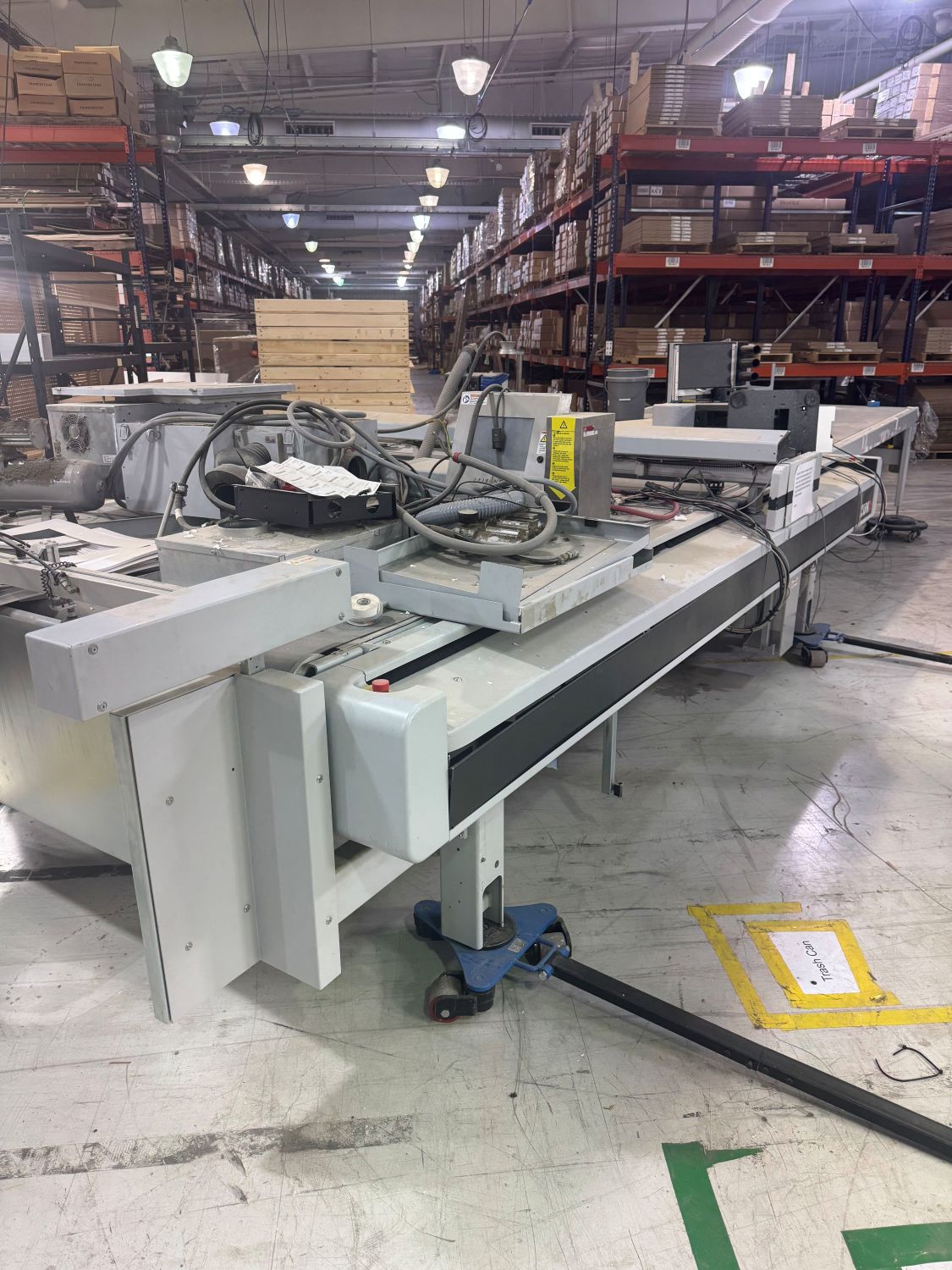

Zünd G3 L-3200 Digital Flatbed Cutter
- Year Manufactured: 2016
- Model Number: L-3200
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "Included, Conveyor Extension, Tooling, and Vacuum Pump.
We had a change to manufacturing process, no longer use this cutting method."
About this Item
Features & Specifications
***Manufacturer's Information:
The Zünd G3 L-3200 is a high-precision digital flatbed cutting system manufactured by Zünd Systemtechnik AG.
Features & Specifications:
Working Area & Dimensions
• Working Area (Width × Length): 1800 mm × 3200 mm (70 in × 125 in)
• Beam Height Options: 30 mm, 60 mm, or 120 mm (1.1 in, 2.3 in, or 4.7 in — 120 mm available on L-3200 and XL-3200 sizes)
• Max Material Width: 1800 mm (70 in)
Speed & Acceleration
• Max Speed X/Y-Axis: 1414 mm/s (55 in/s)
• Max Acceleration X/Y-Axis: 9.3 m/s² (366 in/s²)
• Max Speed Z-Axis: 500 mm/s (20 in/s)
• Max Acceleration Z-Axis: 10 m/s² (393 in/s²)
• Max Rotation Speed T-Axis: 44.2 rad/s
• Max Rotation Acceleration T-Axis: 3068 rad/s²
Electrical & Operational Data
• Electrical Requirements: AC 3ph+N+GND, 208/400 V, 50/60 Hz, 32 A
• Max Material Weight (Manual Loading): 30 kg/m² (6 lbs/ft²)
• Noise Level: Varies between <75 dB(A) and ~85 dB(A) depending on material, tooling, and vacuum generator
• Tool Capacity: Modular beam supporting up to 3 interchangeable tool modules
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in USA - South. Customers can pick the machine up or have it shipped for an additional fee.
