New

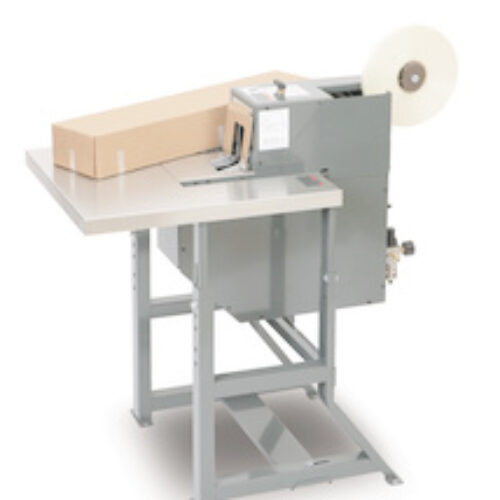

3M-Matic Dual L-Clip Applicator S867II, 1/Case
SKU: NE-081121B
Manufacturer: 3M
From the Manufacturer:
3M-Matic Dual L-Clip Applicator S867II, 1/Case
- Automatically applies two 4.5" L-clips of tape on the same edge as close as 8" apart
- Roller-ball table for easy box positioning
- Placing a box in the application area activates the mechanism
- Uses filament reinforced tape and transparent reinforced strapping tape (RST)
- Supports 12mm to 36mm tape width capacities
3M-Matic Dual L-Clip Applicator S867 II applies two 4.5" L-clips of Scotch Filament or Reinforced Strapping Tape (RST) on the same edge at up to 50 clips per minute for sealing non-standard boxes. The machine is designed for installation adjacent to a conveyor system or on a stand for off-line systems.
About this Item
Features & Specifications
Dependable Performance Shift after Shift
3M-Matic Dual L-Clip Applicator S867 II allows the operator to quickly apply two "L"-shaped clips of tape as close as 8" apart on the same edge of non-RSC (regular slotted carton) style boxes. When a box is inserted into the nest, the contact plate easily and safely triggers the pneumatic mechanism to apply the tape. The applicator has been designed and tested for use with Scotch filament and strapping tape and supports tape widths of 12 mm to 36 mm. Consistent tape lengths of 4.5” help reduce waste.
Recommended Applications
- Telescoping boxes
- Custom boxes
- One-piece boxes
- Five-panel boxes
Additional Information
- Minimum Box Depth : 2.25" [60 mm]
- Maximum Box Depth : minimum to unlimited maximum
- Minimum Box Width : 13" [330 mm]
- Maximum Box Width : minimum to unlimited maximum
- Minimum Box Height : 2.25" [60 mm]
- Maximum Box Height : minimum to unlimited maximum
- Weight Range : 275 lbs. [125 kg] unpackaged, 350 lbs. [160 kg] packaged
- Tape Width : 3/8" [9 mm], to 1-1/2" [36 mm]
- Tape Roll Diameter : Up to 15 inches [115mm] maximum on a 3 inch [76.2mm] diameter core
- Applied tape length : 4-1/2" [115 mm] (nominal). Tape legs are 2-1/4" ±1/8" [55 mm ±3.2 mm]
- Compressed Air Requirements : 65 PSIG [4.2 bar gauge pressure], 4.3 SCFM [120 liter/minute @ 21C, 1.0 bar] at 50 cycles/minute
- Machine Cycle Time : 1.2 seconds
- Machine Operating Conditions : Use in dry, relatively clean environments at 40°F to 120°F [5°C to 49°C] with clean, dry boxes
- Product ID : S867II
- Harmonizing Code : 8422309186
