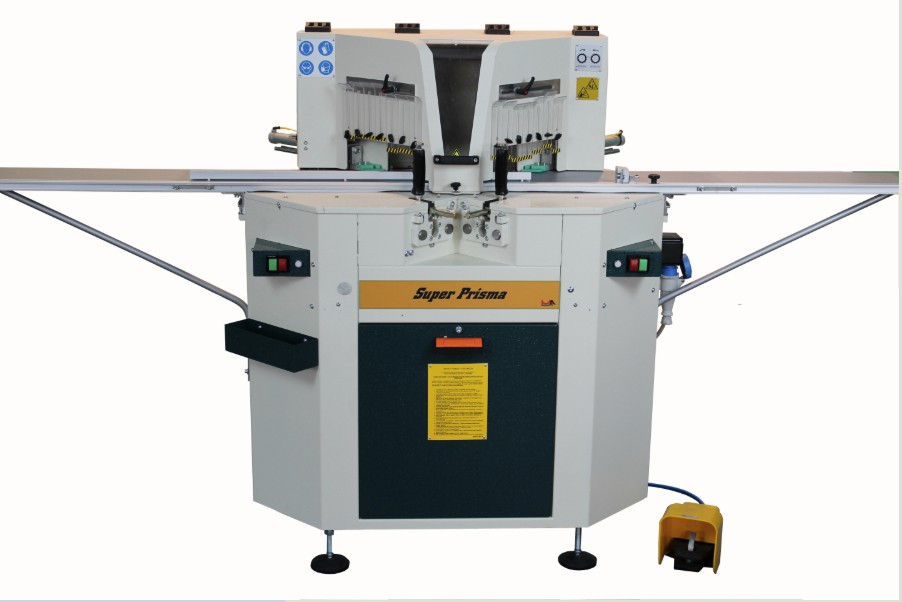

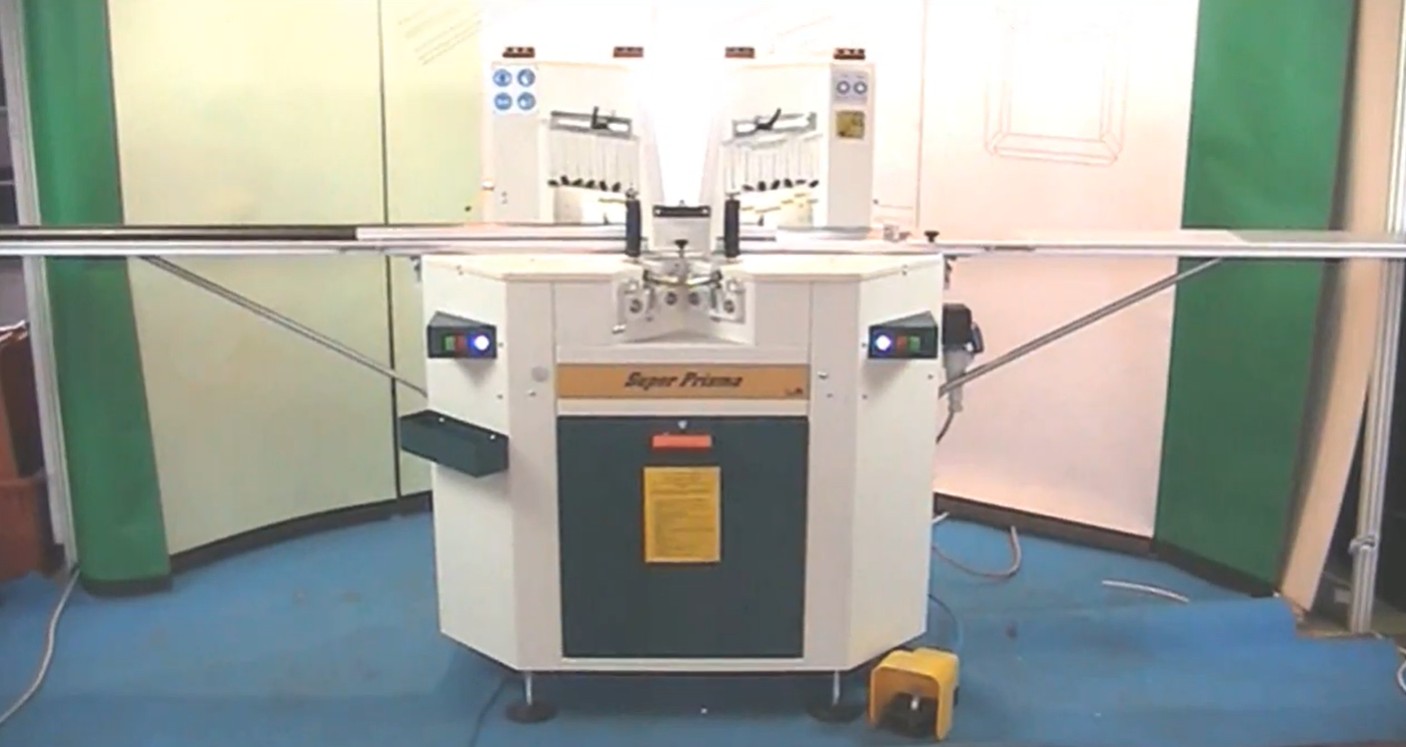

Brevetti Super Prisma Double Miter Saw

Brevetti Super Prisma Double Miter Saw

• Year Manufactured: New
• Model Number: Super Prisma
• Item Under Warranty: No
• Can Item Be Inspected On-Site: Yes

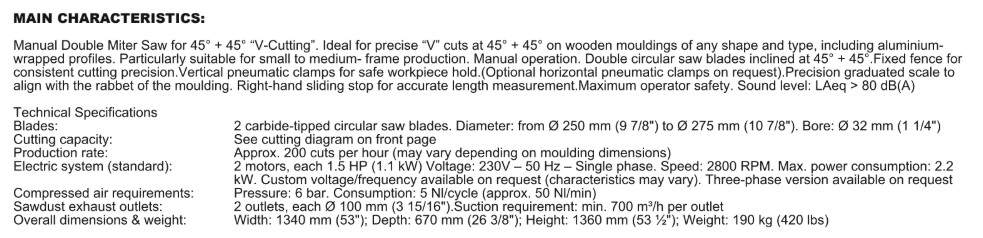

From the Seller: "Manual sawing machine, with horizontal stroke, for "V-cutting" at 45° degrees, at both ends, in wooden mouldings of any shape and kind (all woods-aluminium covered,
etc.). Precise graduate scale to gage at the rabbet of the mitred mouldings, right sliding stop and mechanical horizontal clamps. With fixed fence. Maximum operator
safety.

Sound level: LAeq > 80 dB (A).

Arranged to be connected to a suction unit with min. delivery of 700 m³/h for each sawdust exhaust outlet.

Saws: 2 circular carbide saw blades ø from 250mm. (9 7/8") to 275mm. (10 7/8") ( size bore ø 32 mm.- 1 1/4").

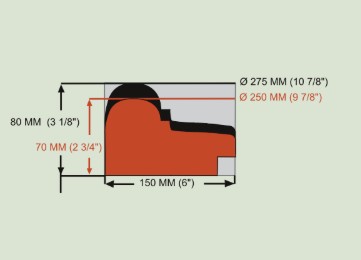

Max. cutting capacity: see cutting diagram on front

Production rate: about 200 cuts per hour (it varies with mouldings dimensions).

Standard electric equipment: 2 motors of 1,5 Hp each; Voltage 230V-50 Hz; 2800 RPM; single Phases. On request machine can be supplied with electric
equipment according to local voltage and hertz. In this case electric characteristics change. Electric consumption max.2,2 kw
(3 phase available on request).

Sawdust exhaust outlets: N. 2, diameter 100 mm. (3 15/16").

Overall dimensions and weight: width 1340 mm. (53"); length 670 mm. (26 3/8"); height 1150 mm. (45"); 181 Kg. (400 Ibs.).

Particularly suitable for medium and small production of frames."
