Fletcher AMP U-500 Plus / U500+ Memory Programmed / Single Channel Underpinner / Joiner
SKU: FT-102140
Manufacturer: Fletcher
Date listed: May 1, 2026

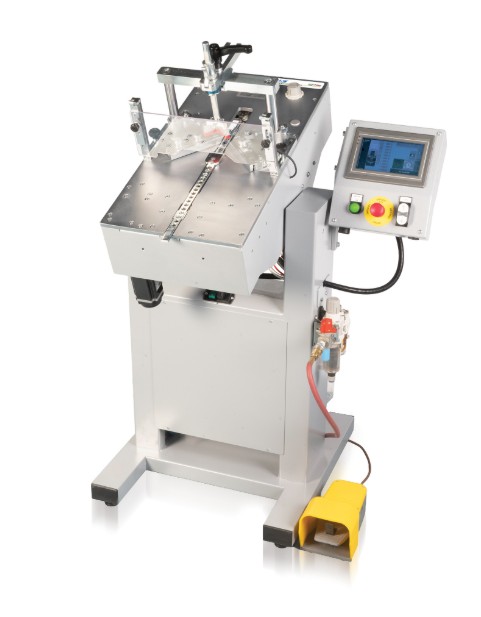

Fletcher AMP U-500 Plus / U500+ Memory Programmed / Single Channel Underpinner / Joiner
The AMP™ U-500 PLUS underpinner is built for high-volume production environments that primarily run a single-size V-Nail for fast, repeatable frame joining. Its user-friendly touch-screen operation stores over 5,000 frame profiles and supports optional barcode scanning to streamline workflow and improve efficiency.
The U-500 PLUS joins 45 and 90 degree assemblies, offers front- or back-side joining, and features a three-knob adjustment fence to help compensate for moulding cuts; an optional vertical double hydraulic pressure clamp is available for superior clamping.
The U-500 PLUS handles frame-joining requirements commonly found in picture framing, woodworking (door trim), canvas stretcher bars, modular homes, and mirror frame joining, and works with wood, plastics, and MDF.
About this Item
Features & Specifications
***Manufacturer's Information:
Features:
- User friendly touch-screen operation with data storage for over 5,000 frame profiles
- Integrates Bar Code Scanner option for production efficiency
- Join from either front or back of the machine
- Easy table tilt adjustment
- Handles all types of wood, plastics, and MDF materials
Machine U-500 PLUS PN 04-011 Purchase Package
U-500 PLUS Purchase Package
(1) 5MM Nail Head
(1) 7MM Nail Head
(1) 10MM Nail Head
(1) Single Vertical Positive Placement Clamp
(1) Single Metal Pressure Plate
(1) Red Rubber Pad
(1) Yellow Rubber Pad
(1) White Rubber Pad
(1) 3 Stage Air Pressure Filter Regulator
(1) Adjustable Fence - 3 knobs
(1) Front Horizontal Clamp
(1) 5mm Allen wrench
(1) Touch Screen Panel
(1) Magnetic V-Nail Pick Up tool
(4) Machine Base Levelers
(1) Fence Template 4-6-8 Side
(1) Floor Stand
(1) Machine manual
Specifications:
Moulding Width ¼” up to 5 ½”
Moulding Height ¼” up to 3 ¼”
Max Distance Between V-Nails (stroke) 5 ¾”
V-Nail Sizes 5, 7,10,12,15 mm (SW-HW-HDF)
V-Nail Channel Capacity 220 V-Nails/channel
