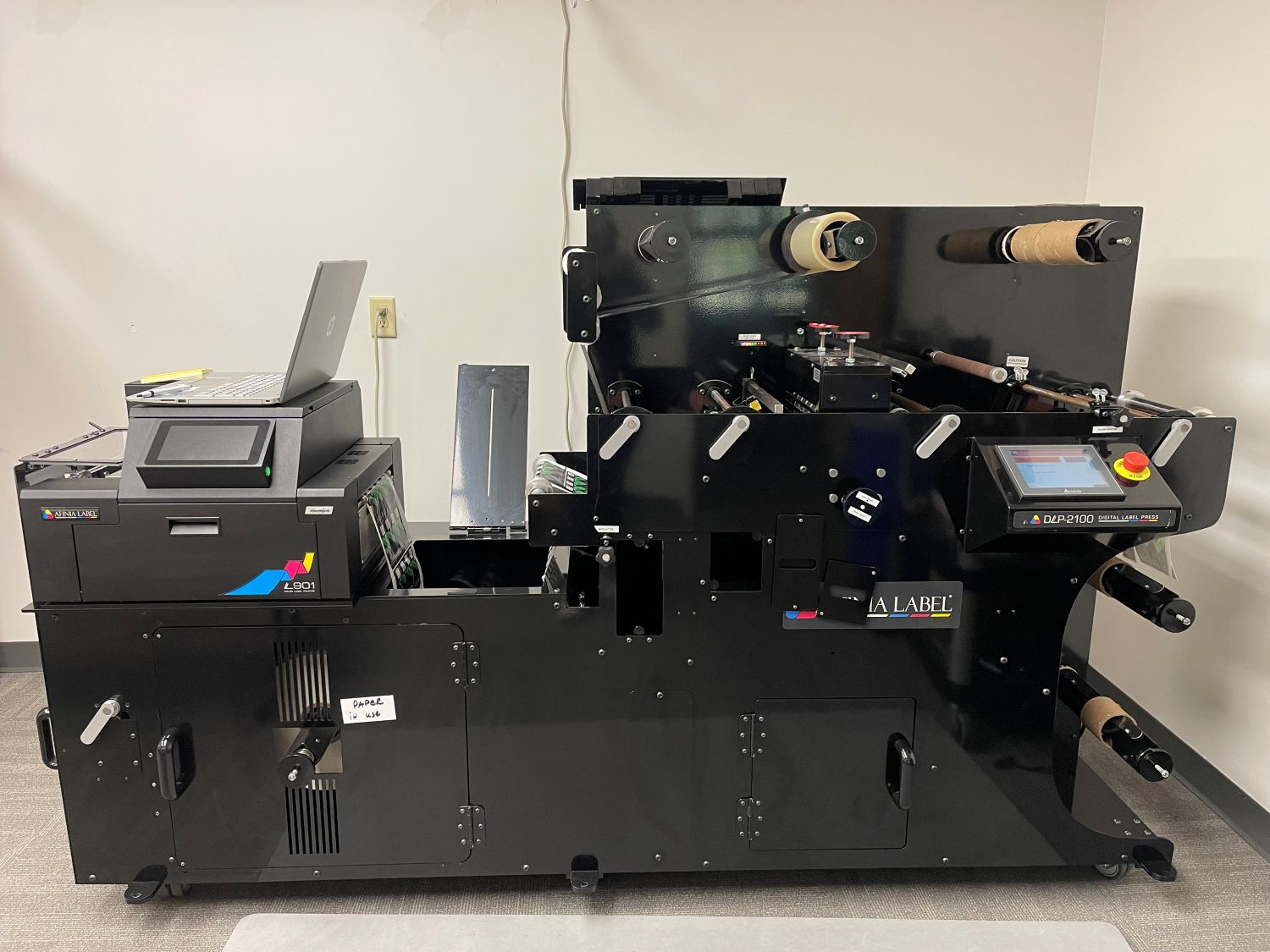

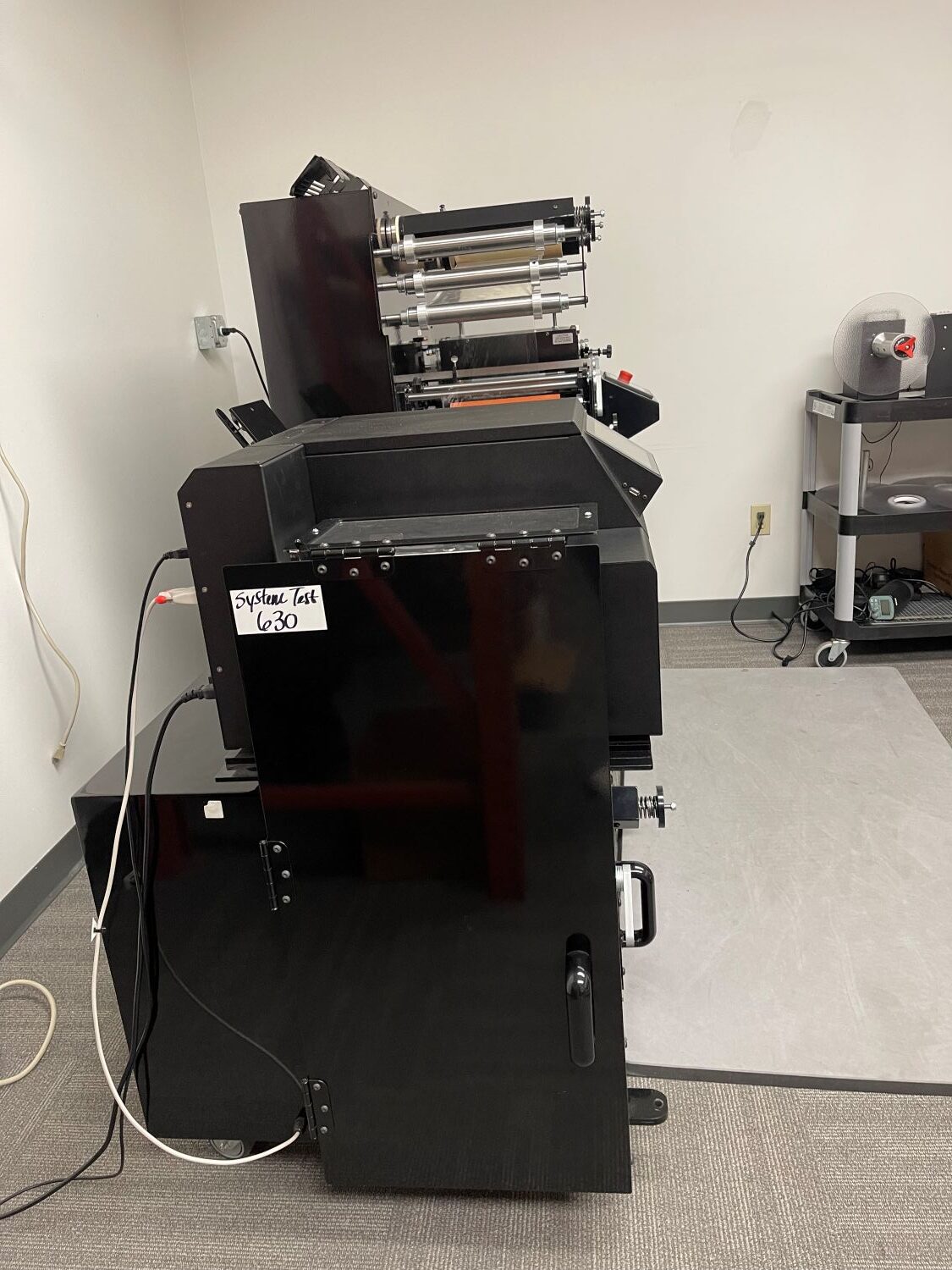

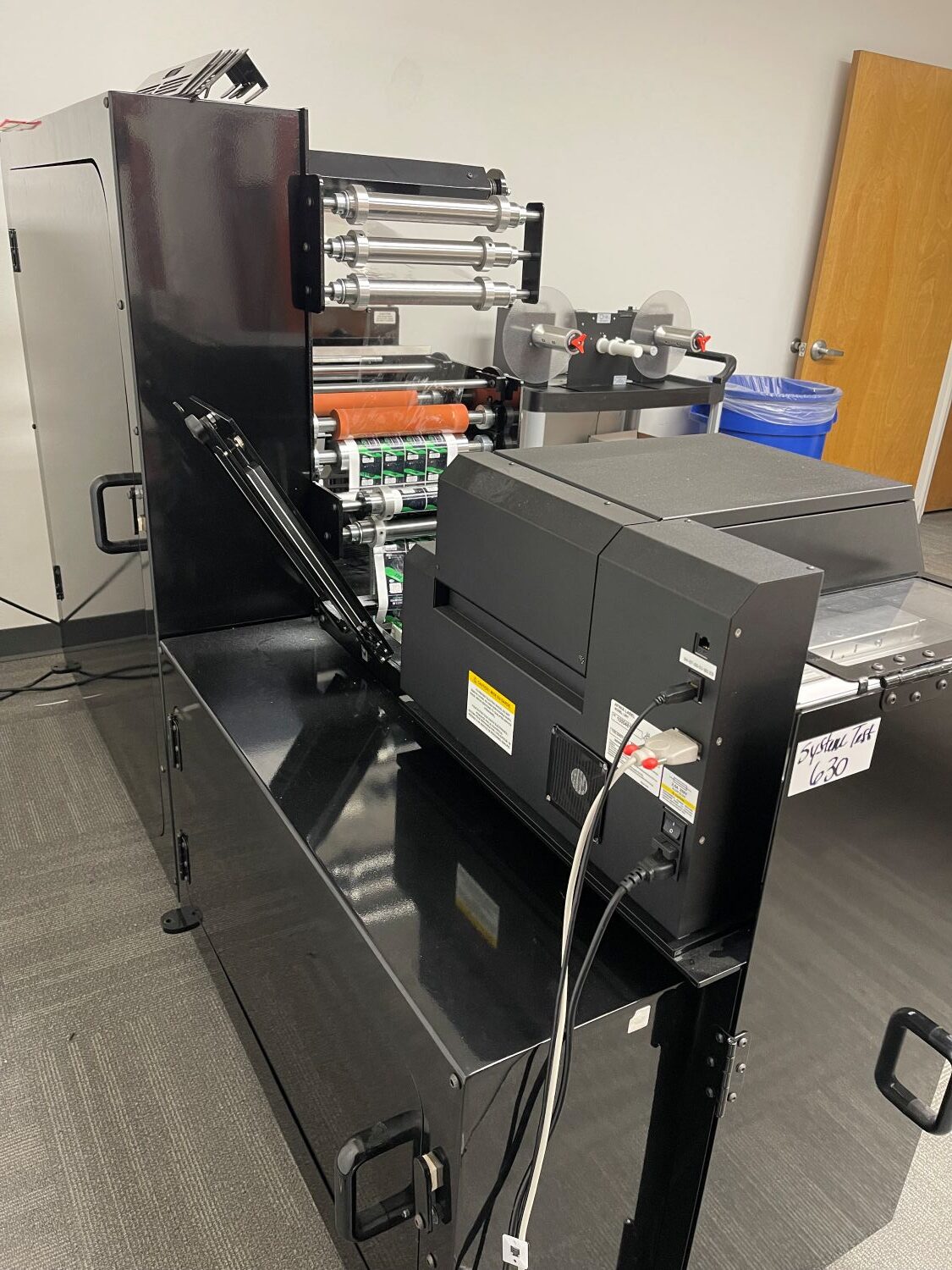

Afinia DLP-2100 High Volume Digital Label Press & Afinia L901 Color Label Printer

***Manufacturer's Information:

DLP-2100 Digital Label Press

Print and finish labels inline
The DLP-2100 can print, die cut, and finish labels at up to 60 feet per minute, making it the fastest and most advanced digital label press in its class. This full-featured workhorse is capable of laminating, die cutting, waste removal, slitting, and rewinding to finished rolls that are ready for application.

High output for large brands and print shops

With the L901 Digital Label Printer inline, the DLP-2100 can produce more than 25,000 full-color 3x4-inch labels per hour. For larger brands, this makes it ideal for bringing label production in house. Print shops can offload their smaller label runs, freeing up large format presses while reducing costs
and setup times. Eliminating the need to outsource labels results in faster turnaround times, greater control and flexibility, and thousands of dollars saved. The integrated L901’s print engine makes printhead maintenance possible with the web intact, allowing for uninterrupted production. In addition, it delivers industry-leading low ink costs via five (CMYKK) high-capacity cartridges.

Features & Specifications:

- Print Speed: 30–60 ft/min (6–12 IPS) (9–18 m/min)
- Print Quality: 1600 DPI full-color output
- Max. Print Width: 8.5″ (216mm)
- Core Sizes 3″ (76 mm)
- Max. Laminate OD 11″ (280 mm)
- Laminate Economical, self-wound and supported laminate (on a liner). Liner removal included for use with high
quality, liner-supported laminate
- Die Head Lateral adjustment 0.47″ (12mm)
- Max. Diecutting Width 9″ (230 mm)
- Max. Diecutting Length 12″ (304.8 mm)
- Cutting Dies Flexible steel, total die length 6" (152.4mm) to 12" (304.8mm)
- Registration Sensor / Mark Laser / 0.2″ x 0.2″ (5 mm x 5 mm)
- Back Slitters 2 - Allows slitting trim to rewind with matrix waste
- Max. Finished Label Rewind 11″ (280 mm)
- Max. Waste Matrix Rewind 11.8″ (300 mm)
- Razor Slitter Assembly 5 inter label knives
- Media Capacity Outside diameter 17.3″ (440 mm) on a 3″ core | (approx. 1000 meters in length)
- Dimensions 92″ (233.7 cm) L x 59″ (149.9 cm) H x 30″ (76.2 cm) W
- Power 220v single-phase 10 amp

AFINIA LABEL L901
Powerful in Both Roll-to-Roll and Inline Applications

The L901 combines industrial design, exceptional image quality, and high production speeds with a new ability to service and maintain the printhead “on-the-fly.” This makes the L901 perfect for long roll-to-roll jobs or inline integration with label finishers, applicators, dispensers and more. Producing vibrant full-color prints in high resolution of 1600dpi is now more economical than ever, thanks to five high-capacity 250ml CMYKK ink cartridges delivering a new ultra-low cost per label

Features & Specifications:

- Low ink cost per label
- Variable data capability
- Professional print quality
- Designed for inline operation

- Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles
- Inks: Dye-based, 250mL CMYKK (1.25L total)
- Print resolution: 1600 x 1600 dpi – 1600 x 800 dpi
-Print speed: 6 inches (152 mm) per second – 12 inches (305 mm) per second
- Print width: 8.5 inches (216 mm)
- Cutter/sheeter: Powered
