Used
BLM 832S-VGP Precision Pipe Bender
SKU: UE-060525D
Manufacturer: BLM
Date listed: June 5, 2025

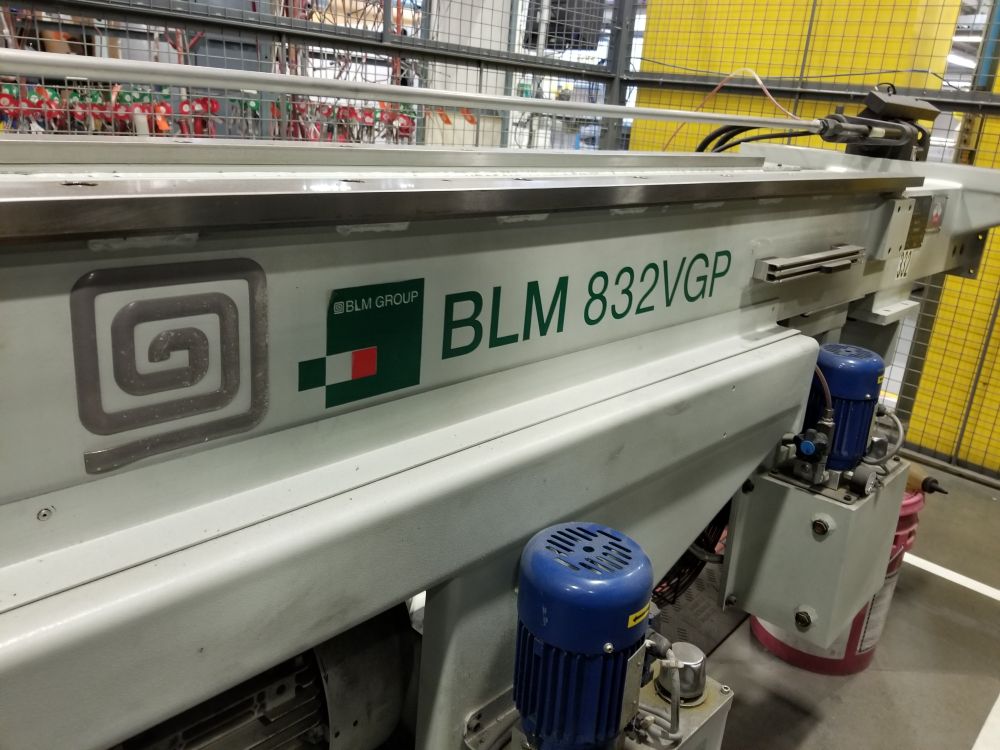

BLM 832S-VGP Precision Pipe Bender
- Year Manufactured: 2012
- Model Number: 832S-VGP
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller:

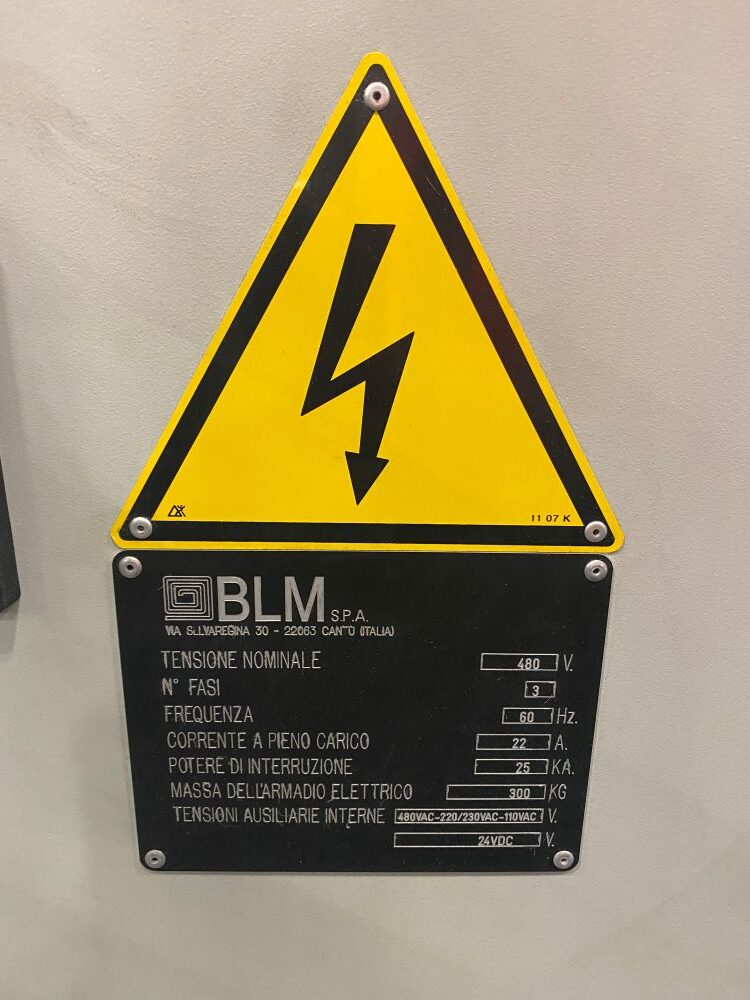

"Model: 832S-VGP
Serial No. 113080203001
Manufacture Year 2012
480 V
3 Phase
60 Hz
22 A

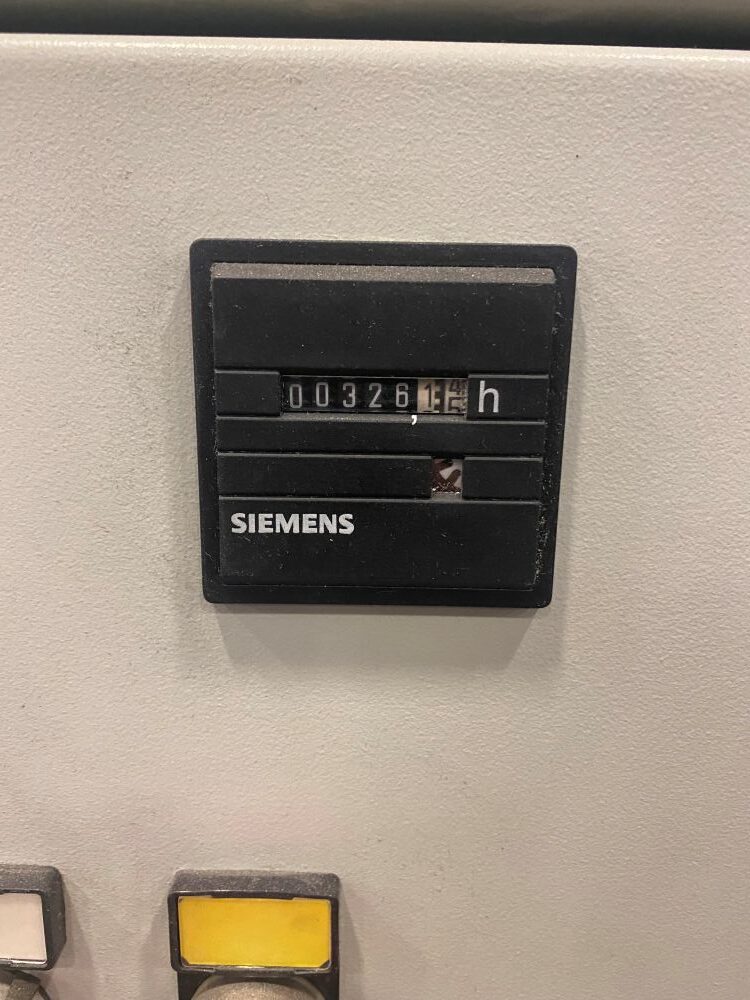

ONLY 326 hours of operation"

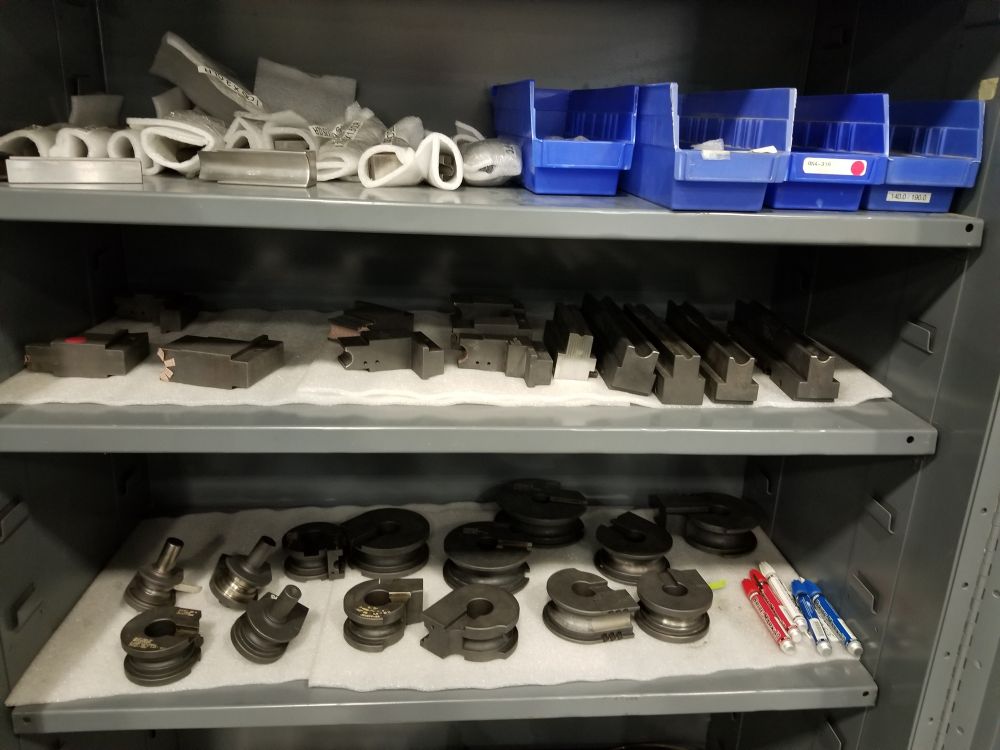

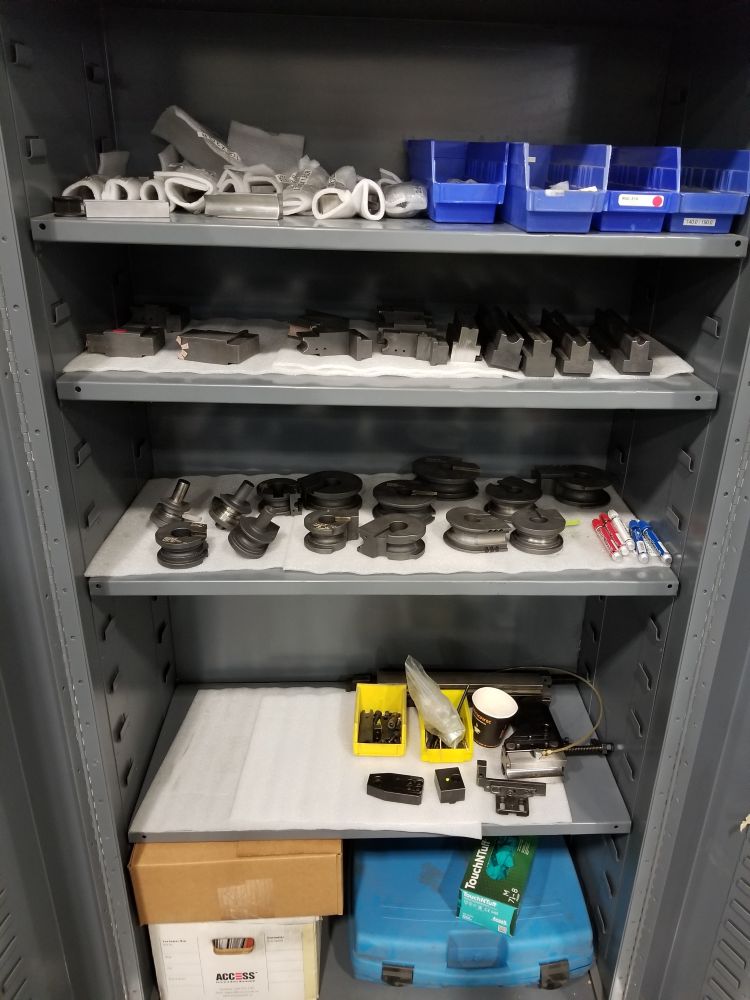

*Includes original operating manual & full list of tooling available*
About this Item
Features & Specifications
***Manufacturer's Information:
BLM 832S-VGP Precision Pipe Bender
Technical Data
- Maximum bend capacity: R=450N/mm_
- Round Tube: min 4 mm-0.157″, max 30 x 2mm, 1.181″ x 0.078″
- Square Tube: 25 x 25 x 1.2mm, 1″ x 1″ x 0.047″
- Rectangular Tube: 30 x 20 x 2mm, 1.181″ x 0.787″ x 0.078″
- Oval Tube: 30 x 20 x 2mm, 1.181″ x 0.787″ x 0.078″
- Bending radius (increasable/reducible on request): min 20mm-0.787″, max 170mm-6.692″
- Usable length (increasable/reducible on request): 3000mm-9.842 ft
- Max tube length from tool post to collet: 3000mm-9.842 ft
- Max tube length from tool post to mandrel retraction unit: 4000mm-13.123 ft
- Positioning speed = X Axis: 900mm/sec
- Bend Arm speed = Y Axis: 200/sec
- Bend arm return speed = Y Axis: 320/sec
- Rotational speed = Z Axis: 360/sec
- Max installed power: 13 kW
- Hydraulic pressure: max 120 bar
- Noise level max 75 db
- Axis accuracy: X=+/- 0.1mm =0.004″, Y=+/-0.1, Z= +/- 0.1
- Average bends/hr: 800/1200
- Machine Weight (Net): 1500 kg=3307 lbs
- CNC Net Weight: 150 kg = 8377 lbs
- Machine Packing Dimensions: 5150 x 1100 x 1450mm, 16.9 x 3.6 x 4.7 ft
- CNC Packing Dimensions: 860 x 750 x 1980mm, 2.8 x 2.4 x 6.5 ft
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in Canada, British Columbia. Customers can pick the machine up or have it shipped for an additional fee.
