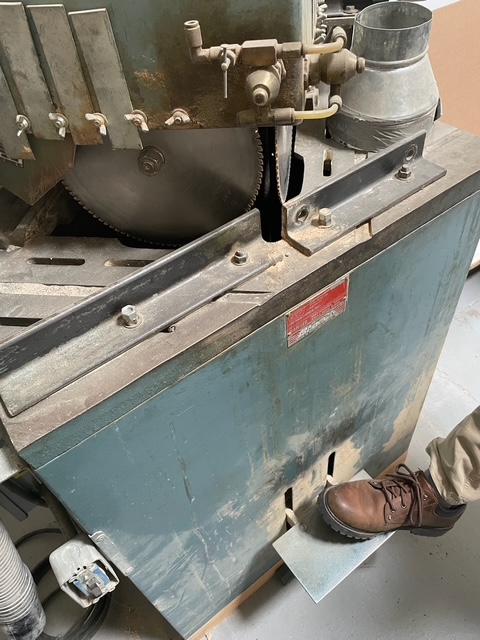

CTD D45 Double Miter Saw

***Manufacturer's Information:

(Please note: Details are for the D45AX)

Information below refers to the pneumatic version (D45AX). Check with manufacturer to determine any difference between the D45 (manual lever version) and the D45AX (Pneumatic - Foot Pedal Version)

CTD D45AX 12" Fixed head double mitre saw

The D45 is popular worldwide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

Blade Capacity: 12" OD

Spindle & Pivot: Both mounted on pre-loaded and sealed ball bearings.

Arbor: 5/8 (16mm) with 2-1/4 (57mm) saw collars.

Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.

Motors & Voltages: 1-1/2 H.P., 3450 RPM with Dual Magnetic Starter.

Table Height: 34-1/2 (88cm) from floor.

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6 dust outlet. 1200 CFM required.

Length of stroke adjustment: The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, on release of the foot valve, thereby saving wasted time and motion.

Production Rate: The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.

Size: Standard machine, without tables or gages; weight 550 lbs. 46" wide x 22" front to back x 51-1/2" high.

Actuation: Pneumatic foot valve with cover

Air Pressure: 75 PSI with Air Filter/Regulator/Lubricator; includes Auto Drain.

Air Consumption: 1.0 CF per 10 strokes at 75 PSI.
