Used

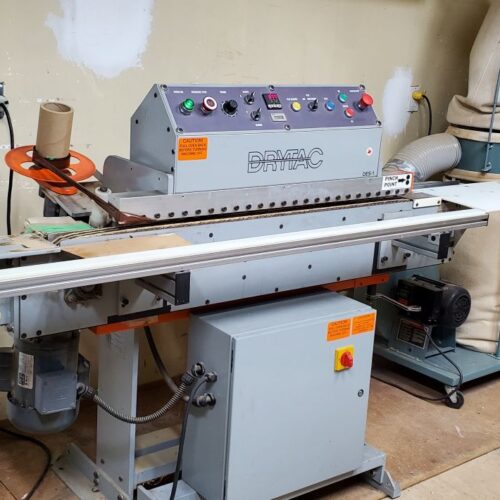

Drytac DES-1 Edger Foiler Finishing Machine
SKU: UE-073124A
Manufacturer: Drytac
Date listed: July 31, 2024
Drytac DES-1 Edger Foiler Finishing Machine
- Model Number: DES-1
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "Can be tested on site. Video available upon request."
About this Item
Features & Specifications
***Manufacturer's Information:
Drytac DES-1 Edger / Foiler
Plaque Finishing and Block Mounting Made Easy.
For a competitive edge in specialty plaque manufacturing, the DES-1 automated edge finishing system is the professional choice for mid-to-high-volume operations. the continuous feed unit is easy to set up and operate, performing both shaping and foil application steps in a single pass. The DES-1 first trims and bevels the mounted substrate, then automatically applies the thermal-set decorative edge foil border.
Used by plaque and block mounters worldwide, this high quality edge finishing machine is designed to finish the edges
of medium density fiber board (MDF) or tempered Masonite (hardboard) after the images have been mounted and
laminated onto the board. The edger features several stations on a conveyor that bevel (45 degree bevel), sand and apply an
edge foil all in one single pass.
DES-1 Specifications:
- Max Cut Thickness 1.19" (32mm)
- Weight (Un-crated) 950 lbs. (430 Kg)
- Weight (Crated) 1050 lbs. (477 Kg)
- Width 30" (762mm)
- Length 90" (2286mm)
- Height 48" (1219mm)
- Electrical Requirements (U.S. and Canada) 220 Volts/30amp/Single phase/60Hz
- Electrical Requirements (Europe) 220 Volts/30 Amp/Single phase/50Hz
- Other Requirements Dust collection system
- Machine Speed 18 feet (5.5m) per minute
- Foil colors Black, white, silver, gold
- Foil widths 3/4", 1 1/2", 1 1/4" (19mm, 38mm, 31.75mm)
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in Ohio. Customers can pick the machine up or have it shipped for an additional fee.
Get Pricing
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in Ohio. Customers can pick the machine up or have it shipped for an additional fee.
