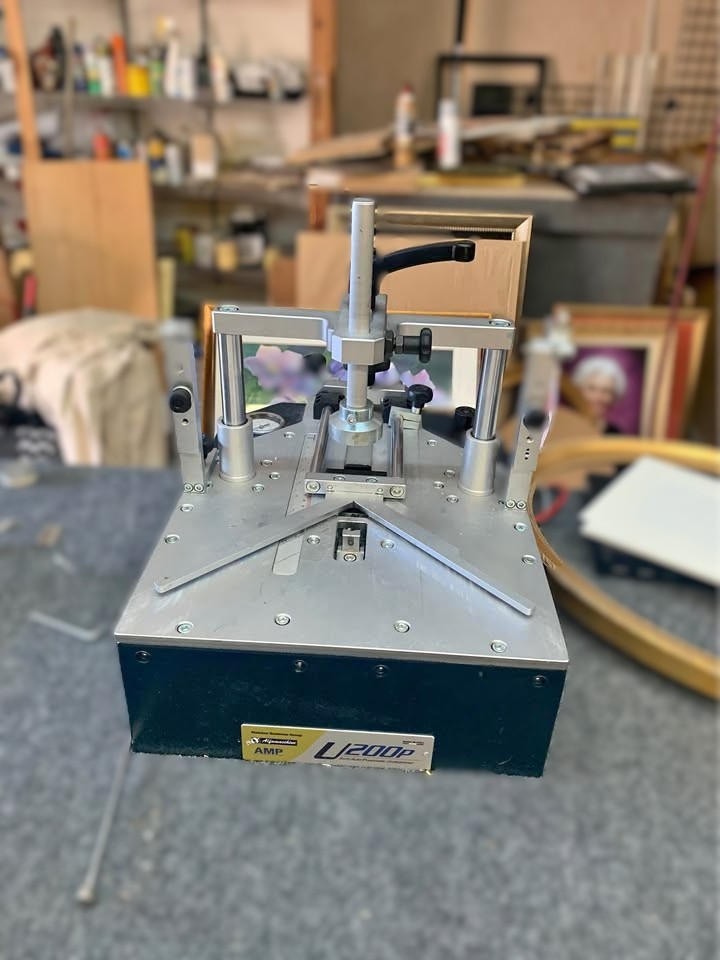

Fletcher AMP/Alfamacchine U-200P / U200P Semi-Auto/Pneumatic Underpinner

***Manufacturer's Information:

Our U-200P is a bench top frame joining machine and the most popular model with the custom frame shops. It is compact, well constructed, and built for many years of trouble free operation. The design of the U-200P allows the framer to set the front and back stops for V-Nail insertion. The frame is then moved across the nail head and V-Nails are driven or stacked anywhere along the frame joint. The V-Nail insertion is actuated through the use of a pneumatic pedal.

Unique Performance Features:
- Light weight – Easy shop mobility
- “Soft Clamping” pneumatic feature for damage free joints
- Quick-change magnetic base hold down feature fitting most moulding profiles
- Small table-top foot print needed – 330mm wide x 450mm length x 450mm high
- Operates only with pneumatic air, no electrical hook-up needed
- Dual function foot pedal for separate control of mould clamping and V-Nail insertion
- Designed with a unique trouble free piston V-Nail driver block-blade system for years of dependable single and multi-stacking operations

Frame Joining Capabilities:
- Moulding Width (min to max): 6 to 130mm
- Moulding Height (min to max): 1/4" up to 3 1/4" (6 - 80mm)
- Max Distance Between Vnails (Stroke): 180mm
- Pre-set V-Nail Position Stops: Multiple
- V-Nail Sizes: 5mm, 7mm, 10mm, 12mm, 15mm (SW-HW-MDF)
- V-Nail Channel Capacity: 220 V-nails/channel

Machine Dimensions & Weight:
- Width: 330mm
- Length: 450mm
- Height: 450mm
- Weight: 35kg
