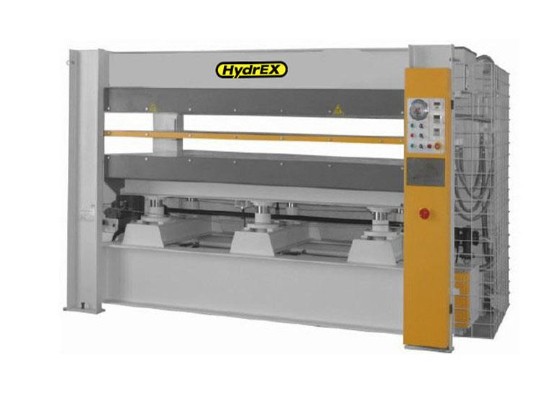

HYDREX HPX510-1 Hot Press, Single daylight opening
SKU: EF-101020
Manufacturer: Hydrex
Date listed: May 11, 2026
HYDREX HPX510-1 Hot Press, Single daylight opening
- Year Manufactured: NEW
- Model Number: HPX510-1
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "HYDREX HPX510-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.
Brand/Model:
HYDREX "HPX510-1"
Machine Type:
HOT PRESS (HOT OIL)
Elect./Voltage:
220-230/380-400 V, 60 Cy, 3 Ph"
About this Item
Features & Specifications
***Manufacturer's Information:
HYDREX HPX510-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.
Features:
• Board size up to 5' x10',
• Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device.
• (8) Cylinders (upstroke)
• 120 Tons of overall pressure,
• Recirculating Thermal Oil heated with package heaters housed in a boiler tank.
Specifications:
• 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height..
• (8) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens.
• 120 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4.5 KW (6 HP) hydraulic pump motor. Platen moving speed 5 FPM
• 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature.
• Loading from (3) sides; 39-1/2" from floor with lower platen in the down position: heavy I-beam welded steel frame construction.
• "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel.
• Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 19,500 Lbs).
Comment: A well designed/built Hot Press at a great value price.
