Used

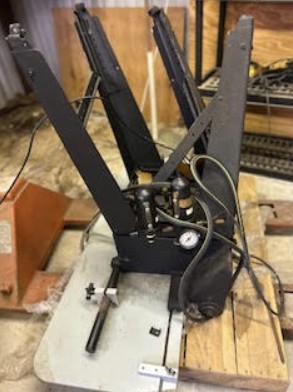

Scott Heavy Duty Index Tab Cutting Machine
SKU: UE-031725E
Manufacturer: Scott
Date listed: March 17, 2025
Scott Heavy Duty Index Tab Cutting Machine
- Model Number: Scott Heavy Duty Index Tab Cutting Machine
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "This has been in storage for several years, but was in good working order when we closed our business."
About this Item
Features & Specifications
***Manufacturer's Information:
Features:
- Fast and Easy Setups
- It takes just seconds to change tab positions. Changing tab sizes takes only two minutes.
- Handles Many Size Sheets
- The extra long steel knives quickly and easily cut a 1 inch (25.4mm) tab in the first position on a 15 inch long sheet.
- Precision Cut a Variety of Tab and Step Cuts.
- Adjust tabs to any width from 1/2 inch to 6 inches (12.7mm to 152.4mm) by simply moving knives closer or father apart.
- Safe and Easy Operation
- The full length safety bar protects the operator?s fingers from knives while rapidly inserting sheet after sheet.
- Proven Durability
- Knives are made from tool steel, hardened and precision ground. They are mounted on 2 inch diameter steel arbor supported by ball bearings. Accurate cutting is further ensured by the solid cast-iron
machine body.
- Minimal Maintenance
- The only regular maintenance required is to routinely fill the automatic lubricator.
Specifications:
- Speed: Up to 5,000 tabs per hour
- Sheet Size: Maximum:15 inches with a half inch inset on a 1 inch tab (381mm with a 12.7mm inset cut on
a 25.4mm tab) Minimum:any width x 5-1/2 inches (139.7mm minimum depth)
- Paper Weight: 6-point to 25-point paper 6 inches (152.4mm) maximum 1/2 inch (12.7mm) minimum
- Tab Cut Size: Stepcut: 13-1/2 inches (342.9mm) maximum 1/4?, 3/8?, 1/2?, 5/8?, 3/4?
- Stock Tab Extensions: (6.3mm, 9.5mm, 12.7mm, 15.9mm, 19.1mm)
- Knives: Hardened, precision ground steel
- Electrical Requirement: 0.5 amp, 120 VAC, 50-60 Hz
- Air Requirements: 2 cubic ft. per minute (944 cubic cm per second) at 80 lbs. pressure. Built in pressure
regulator and filter allow use of shop air or separate compressor. permits variations in cutting power.
- Ball Bearings of Bushings: All Moving Parts
- Lubrication: Fully Automated
- Table Top: 48 inches x 15-3/4 inches x 3/8 inches (1219 mm x 400 mm x 9.5 mm)
- Table Height: (Adjustable) 39-1/2 inches (1003.3 mm0 maximum 32-1/2 inches (825.5 mm) minimum
- Floor Space Required: 58 inches x 26 inches (1473.2 mm x 660.4 mm)
- Shipping Weight: 335 lbs. (152 kg)
***Concerning "Used" Items: Although we strive for accuracy, some specifications are provided to us by the Seller. Cross-check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's information. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a courtesy and their accuracy is not guaranteed. Buyer inspection encouraged. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise. Feel free to contact us if you have further questions before purchasing.
Pricing & Shipping
Shipping Notice: Unless specified on the product, items are FOB Origin. It is the responsibility of a customer to pickup, either personally or by a contracted shipping agent, their product.
Interested in the product? Fill out the form or call us at 330-405-9421 for pricing and other information.
Product is located in Texas. Customers can pick the machine up or have it shipped for an additional fee.
