Valiani Maximus 160 V - Vacuum Assisted CMC - Computerized Mat Cutter

***Manufacturer:

A versatile machine available in multiple size and clamping options, designed for mid-volume production. Get the size, tools, and quality you need with a Maximus. Available with cutting surfaces up to 48"x96"

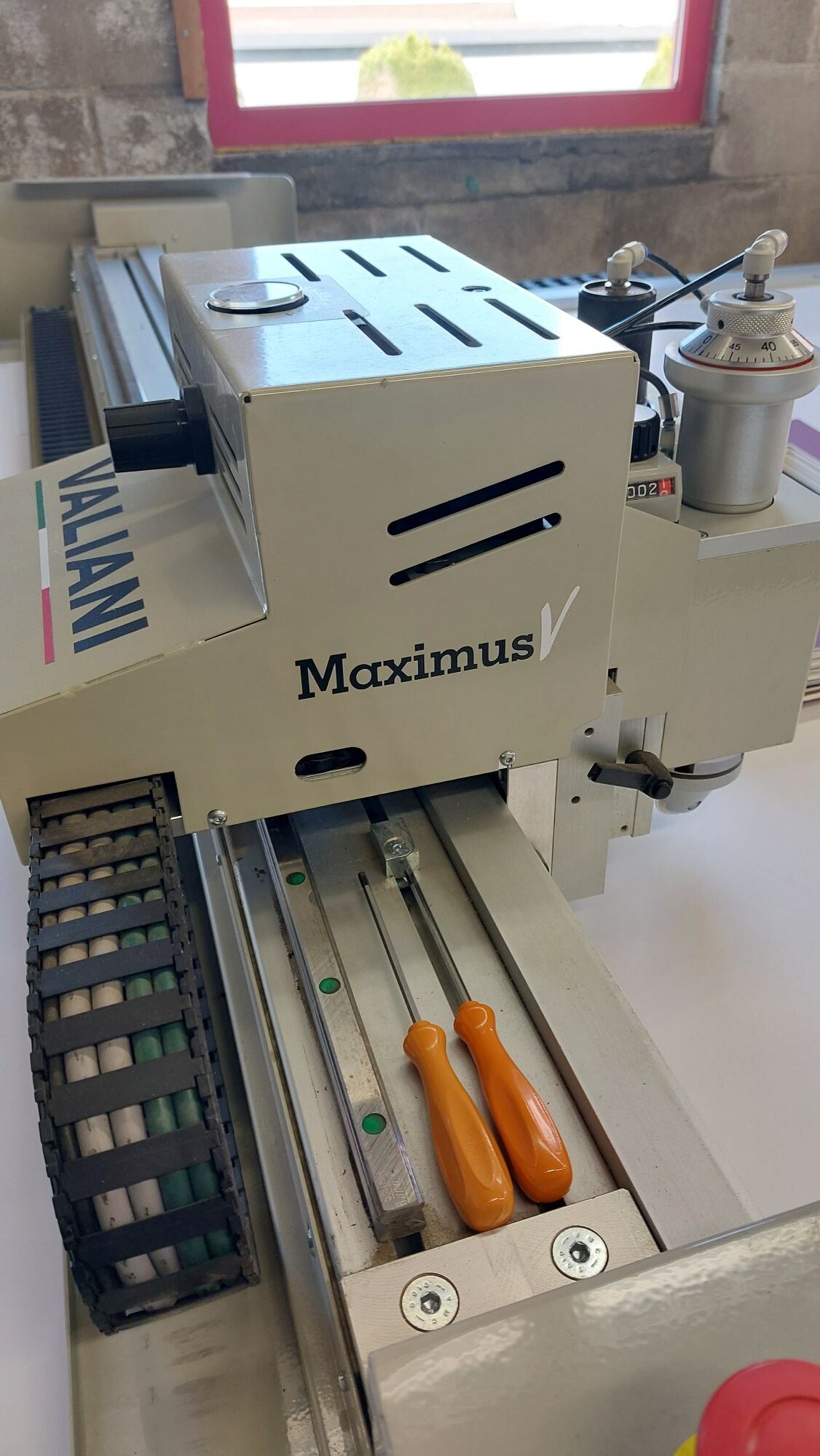

The Maximus series represents a complete solution for passe-partout cutting both for medium and high levels of production. The machine is equipped with a quick head
change system which translates into the possibility of making straight and bevelled cuts without any downtime. Additionally, it will be extremely easy to add an oscillating
vibrating knife, enabling to cut up to 20 mm in thickness, which makes this flatbed system consistent with any framing and packaging need.

The Maximus series is built following high-quality standards, using components of proven reliability and with the aim of providing a high-performance machinery that
lasts over time and guarantees extreme precision. Perfect for framers with medium to high production volumes as well as for public and private institutions engaged in the
restoration and conservation of works of art, which require durable and heavy-duty equipment. The Maximus series can be integrated with a third stationary tool for pen
plotting, and if you need to cut materials with a thickness greater than 5mm than a pneumatic oscillating head.

Features:

Main Applications:
• Nesting and pooling
• Up to 20 mm Foamcore
• Multiple layers mat-boards
• Photo Albums
• Conservation or archival Boxes
• Memorabilia

Materials:
• From 4 to 12 ply mat-boards
• Foam Board (up to 20 mm 3/4” with oscillating tool)
• Gator board
• Corrugated cardboard
• Grey Chip board

Specifications:

Dimensions:
Width:1830mm(72")
Depth:2230mm(88")
Height:1200mm(47.2")

Working Area: 1230x1600mm(48x63")

Max Speed 500mm(20")/sec

Acceleration 1000mm(39,4")/Sec

Power Requirement Single Phase 220V/50Hz/10A

Air Requirement 6Bar/90PSI-3.5 CFM 8Bar/115PSI-5.3 CFM
