Used
Colex SharpCut SXC1732 Conveyor Flatbed Digital Cutting System
SKU: UE-071626N
Manufacturer: Colex
Date listed: July 16, 2026

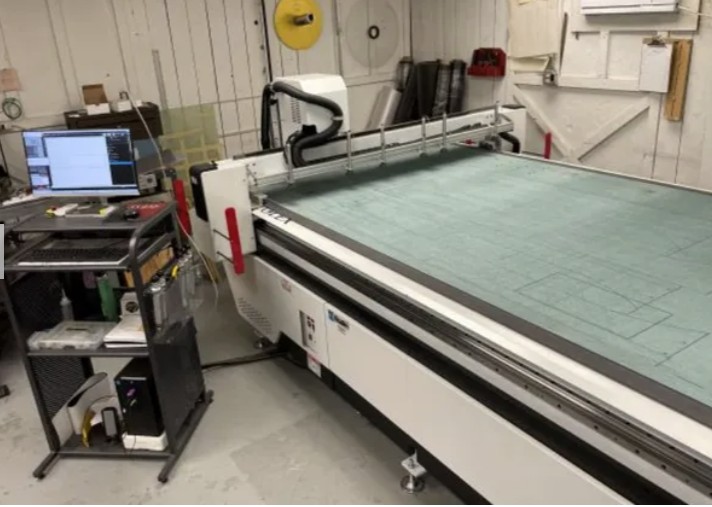

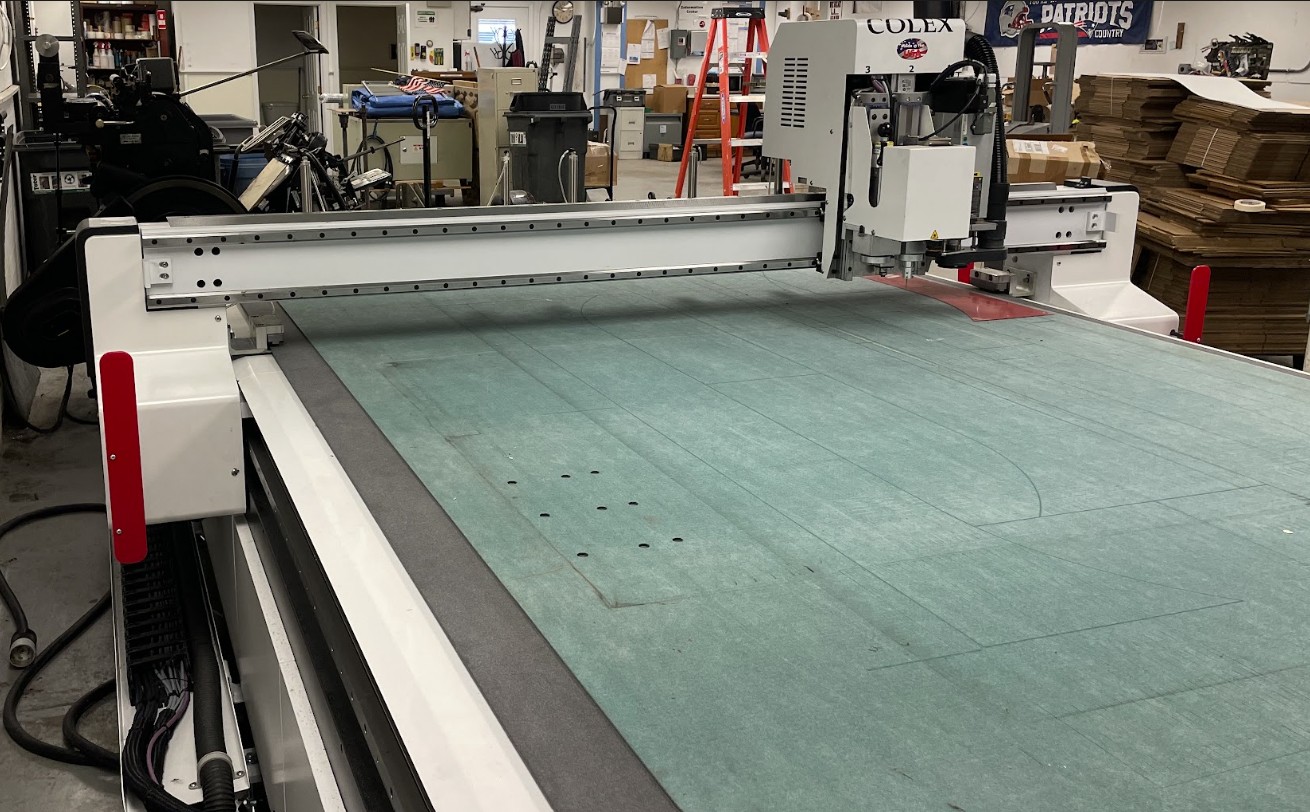

Colex SharpCut SXC1732 Conveyor Flatbed Digital Cutting System

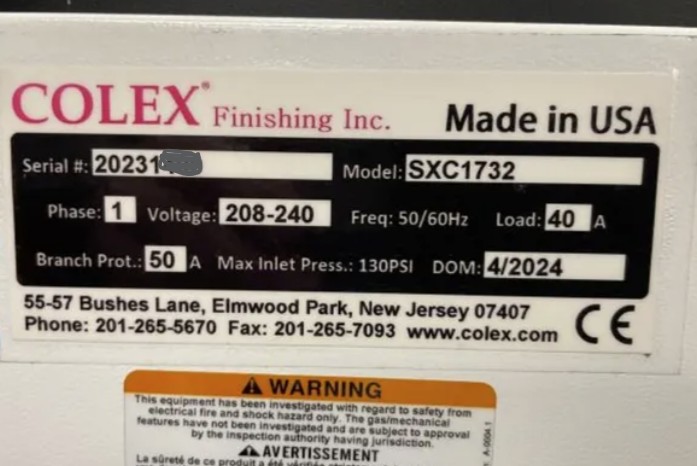

- Year Manufactured: 2024
- Model Number: SXC1732
- Item Under Warranty: No
- Can Item Be Inspected On-Site: Yes
From the Seller: "Company was moved and this cutter was not needed in the new location."
About this Item
Features & Specifications
***Manufacturer's Information:
From the manufacturer & web:
The Colex SharpCut SXC1732 is a production-grade conveyor flatbed digital cutting system designed for wide-format print finishing, packaging, and industrial manufacturing. Featuring a 5.5' x 10.5' cutting area, it integrates automated material handling with high-speed precision routing and knife cutting.
Specifications:
- Table Working Dimensions: 5.5 ft x 10.5 ft (67 in x 126 in / approximately 1.7m x 3.2m).
- Material Handling: SXC models feature a conveyor belt system for automated high-volume roll-to-roll production and rapid removal of finished jobs.
- Build Construction: Built on a heavy, one-piece solid steel welded frame with an aerospace aluminum alloy gantry to reduce vibrations and maximize longevity.
- Motion Control: High-speed rack-and-pinion drive system powered by advanced Panasonic servo motors across all movements (X, Y, Z, W).
Features:

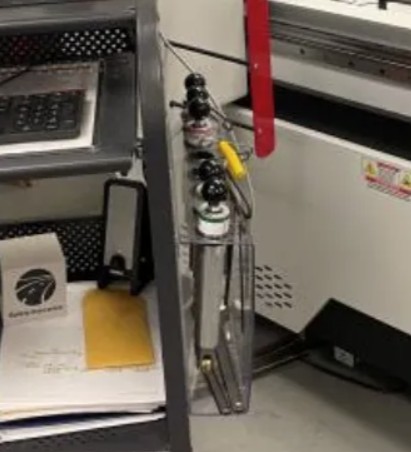

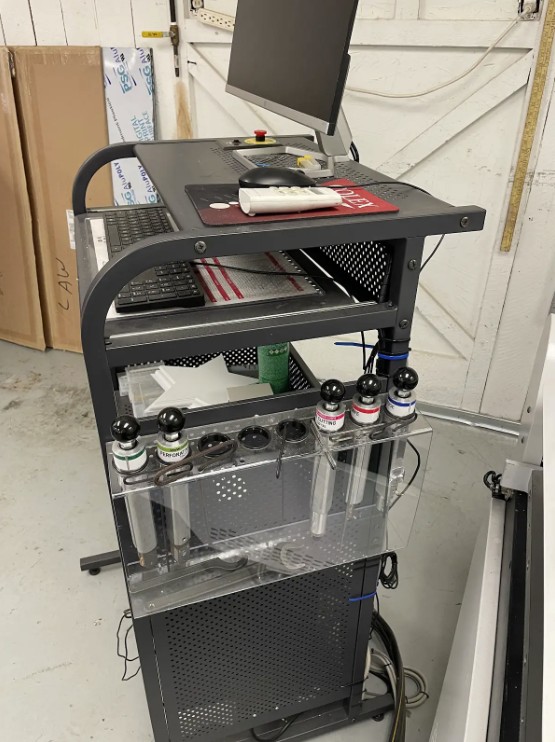

- Triple Interchangeable Tool Head: Operates a fixed router position combined with two interchangeable positions for knives or creasing wheels. The software automatically shifts between selected tools during execution.
- Vision Registration System: A built-in high-resolution camera automatically detects registration marks, dynamically adjusting the cut path to match shifting or stretching on printed graphics.
- 6-Zone Vacuum Bed: Divided into energy-efficient suction zones controlled individually to maximize hold-down pressure based on material size
Applications and Substrates:
- The machine handles rigid and flexible substrates up to 2.5 inches thick:
- Graphics & POP Displays: Flawlessly contours, trims, and routes acrylic, wood, Dibond, PVC, aluminum composite (ACM), corrugated plastic, and vinyl banners.
- Packaging Solutions: Creates samples and short runs for folding cartons or corrugated boards using specialized creasing wheels and V-cut knives.
- Textiles & Fabrics: Pairs the conveyor belt with an optional roll feeder and a motorized rotary knife to slice stretchy or woven fabrics cleanly without fraying.
