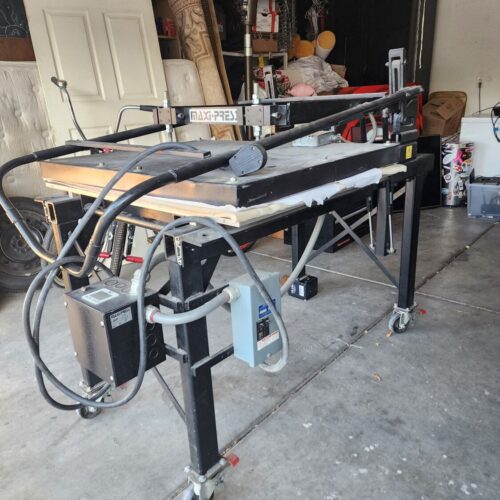

Geo Knight Maxi Press Air Twin Shuttle MAXI- Large Format  (New) Item # GK-101050


Geo Knight Maxi Press Air Twin Shuttle MAXI- Large Format

SKU: GK-101050
Manufacturer: Geo Knight

Available in 2 sizes: 4464AT 44 x 64" and 3242AT 32 x 42"

Air compressor required for operation.

New w/ Factory Warranty




About this Item

Features & Specifications

Available in Single shuttle (standard) or Dual loading table format (optional)
SuperCoil-Microwinding heater technology
Ultra thick heater block assembly
Solid steel pressure bars
Heavy steel frame structures 20,000 lbs force, 10-ton air bag lift mechanism
Self leveling pressure system
Solid lower platen base Solid loading bed with ultra thick nomex padding
Dual button easy-activate safety circuit
Heavy duty locking casters for easy movability and solid foundation support
Automatic press, release, temp & timer controls

Full one year warranty on heating element, controls and entire press

Minimum Compressed Air Required: 20gal, 4cfm, 100psi, 3/8" line
Electrical for 44x64: 208V-230V, 18000W, 1PH, 85A, 100A breaker recommended (3ph/18KW/50A additional cost)
Electrical for 32x42: 208V-230V, 9000W, 1PH, 42A, 50A breaker recommended
Top & Bottom Heat: 44x64 = 36KW/3PH - 32x42 = 18KW/1PH

The Maxi Press AIR models are priced simply by heater block size.

The list below notes the most common sizes:

MAXI-3242AP 32" x 42” MaxiPress Air
MAXI-3242AT 32" x 42" Air Twin Shuttle
MAXI-3242AW 32" x 42" Top & Bottom Heat TWIN 2
MAXI-4464AP 44" x 64" MaxiPress Air
MAXI-4464AT 44" x 64" Air Twin Shuttle
MAXI-4464AW 44" x 64" Top & Bottom Heat TWIN

This machine is shipped by a freight company.
